Remove/Install Rear Engine Support - AR22.10-P-4360MSA
Engine 256.9 In Model 213, 238, 257, 290

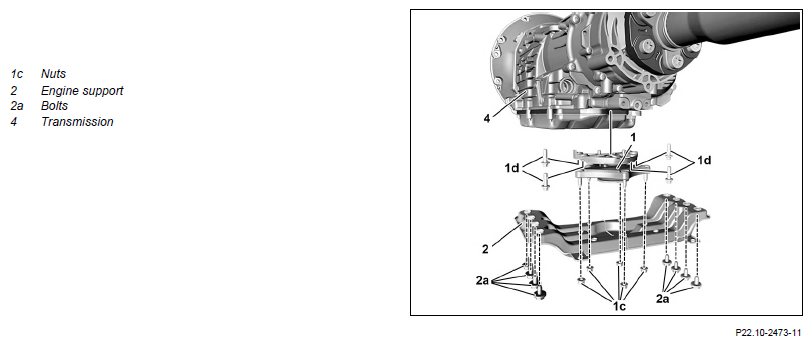

Shown with CODE M005 (4MATIC)
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Notes on bolted connections with self tapping screws | AH00.00-P-0007-01SF | |
| Remove/install | |||
| 1 | Remove center and rear lower engine compartment lining. | Engine 256.9 in model 213, 238 | AR61.20-P-1105LWE |
| Engine 256.9 in model 290 | AR61.20-P-1105FRX | ||
| Engine 256.9 in model 257 | AR61.20-P-1105FR | ||
| 2 | Support transmission (4). | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 3 | Unscrew nuts (1c). | Engine 256.9 in model 238 with code M005 (Vehicles with 4MATIC/all-wheel drive) Rear engine mount to engine support |
*BA22.10-P-1004-03O |
| *BA22.10-P-1004-03N | |||
| 4 | Remove screws (2a) and remove engine carrier (2). | Never use an impact wrench/driver or compressed air tools for unscrewing or screwing in the screw/bolts (2a). Otherwise, threads are damaged. |
|
Engine 256.9 in model 238 with code M005 (Vehicles with 4MATIC/all-wheel drive) Bolt, rear engine support to body |
*BA22.10-P-1005-03O | ||
| *BA22.10-P-1005-03N | |||
| 5 | Install in the reverse order. |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 213 with engine 254, 256, 264, 274, 276, 642, 654, 656 | Model 257 | ||
|---|---|---|---|---|---|
| BA22.10-P-1004-03N | Rear engine mount to engine support | M6 | Nm | 18 | 18 |
| M8 | Nm | 30 | 30 | ||
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 290 with engine 256 | ||
|---|---|---|---|---|
| BA22.10-P-1004-03N | Rear engine mount to engine support | M6 | Nm | 18 |
| M8 | Nm | 30 | ||
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 238 except code M005 (Vehicles with 4MATIC/all-wheel drive) | Model 238 with code M005 (Vehicles with 4MATIC/all-wheel drive) | |
|---|---|---|---|---|
| BA22.10-P-1004-03O | Rear engine mount to engine support | Nm | 30 | 30 |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 213 with engine 254, 256, 264, 274, 276, 642, 654, 656 | Model 257 | |||
|---|---|---|---|---|---|---|
| BA22.10-P-1005-03N | Bolt, rear engine support to body | M10 | Stage 1 | Nm | 30 | 30 |
| Stage 2 | Nm | 50 | 50 | |||
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 290 with engine 256 | |||
|---|---|---|---|---|---|
| BA22.10-P-1005-03N | Bolt, rear engine support to body | M10 | Stage 1 | Nm | 35 |
| Stage 2 | Nm | 50 | |||
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 238 except code M005 (Vehicles with 4MATIC/all-wheel drive) | Model 238 with code M005 (Vehicles with 4MATIC/all-wheel drive) | ||
|---|---|---|---|---|---|
| BA22.10-P-1005-03O | Bolt, rear engine support to body | Stage 1 | Nm | 30 | 30 |
| Stage 2 | Nm | 50 | 50 | ||
