Remove/Install Right Cylinder Head Charge Air Distributor Connecting Flange - AR09.41-P-0010MND
Engine 276.8 In Model 213, 238
| Remove | |||
| 1 | Remove charge-air distributor | AR09.41-P-8683MND | |

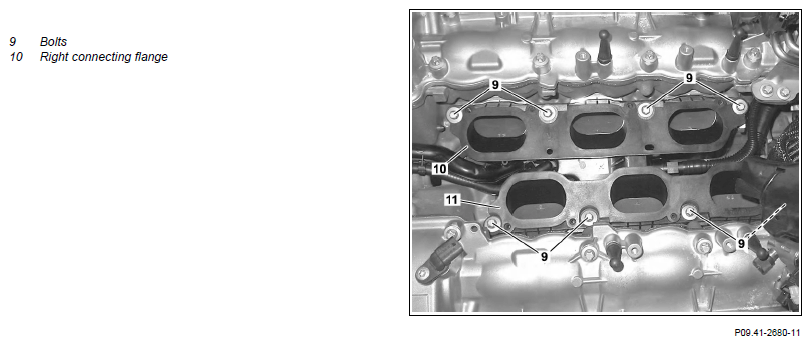

| 2 | Remove screw/bolts (9) of right connecting flange (10) from outwards inwards | ||
| 3 | Remove right connecting flange (10) upwards | ||
| 4 | Protect intake ports of the right and left cylinder head with clean rags against soiling and foreign objects | ||
| 5 | Remove sealant residues on right connecting flange (10) and on right cylinder head | The sealing surfaces on the right connecting flange (10) and on the right cylinder head must not have any foreign objects, scratches or grooves. Non-observance leads to leakage between the right connecting flange (10) and right cylinder head. Do not use any sharp-edged tools or abrasive paper. The sealing surfaces can get damaged otherwise. Loctite 7200 |
*BR00.45-Z-1038-04A |
| Install | |||
| 6 | Replace seals of right connecting flange (10) on right cylinder head | ||
| 7 | Remove the rags from the intake ports of the right and left cylinder head | ||
| 8 | Position right connecting flange (10) on right cylinder head | ||
| 9 | Remove screw/bolts (9) of right connecting flange (10) from inside outwards | *BA09.41-P-1004-01R | |
| 10 | Install charge air distributor | AR09.41-P-8683MND |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 276.8 | |
|---|---|---|---|
| BA09.41-P-1004-01R | Screw/bolt, intermediate flange to cylinder head | Nm | 9 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1038-04A | Loctite 7200 | A 010 989 90 71 |
