Remove/Install Radiator - AR20.20-P-3865MSA
Engine 256.9 in model 213, 238, 257, 290
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove fan unit. | AR20.40-P-5050MSA | |
| 2 | Remove coolant hoses (2, 3) from cooler (1) and seal openings with suitable protective covers. | AR20.20-P-7441-01RQ | |

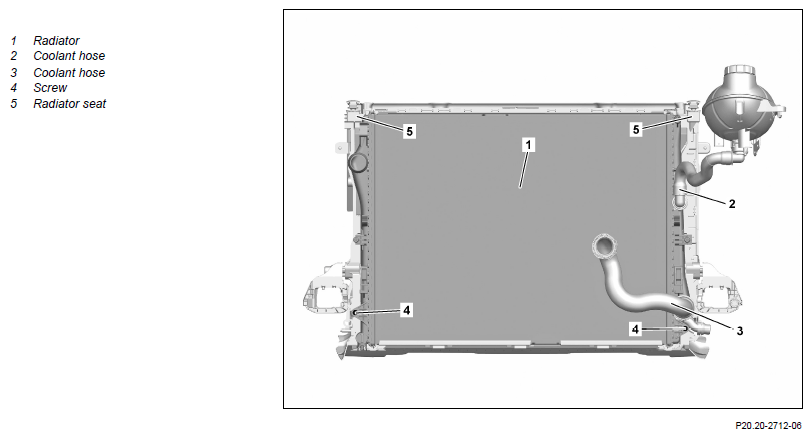

| Fig 1 | |||
| 3 | Remove air duct segment under radiator (1). | ||
| 4 | Remove screws (4). | ||
| 5 | Pull radiator (1) at bottom towards rear, pull out upwards from radiator mounting brackets (5) and remove radiator (1). | ||
| 6 | Install in the reverse order. |
