Remove/Install Low Temperature Circuit Coolant Expansion Reservoir Carrier - AR09.41-P-0007MND
Engine 276.8 In Model 213, 238
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove Low Temperature circuit expansion reservoir | AR09.41-P-0001MND | |
| 2 | Release and disconnect electrical connection on boost pressure control pressure transducer | AR07.17-P-7004MND | |
| 3 | Detach the boost pressure control pressure transducer and place with attached lines to one side | AR07.17-P-7004MND | |

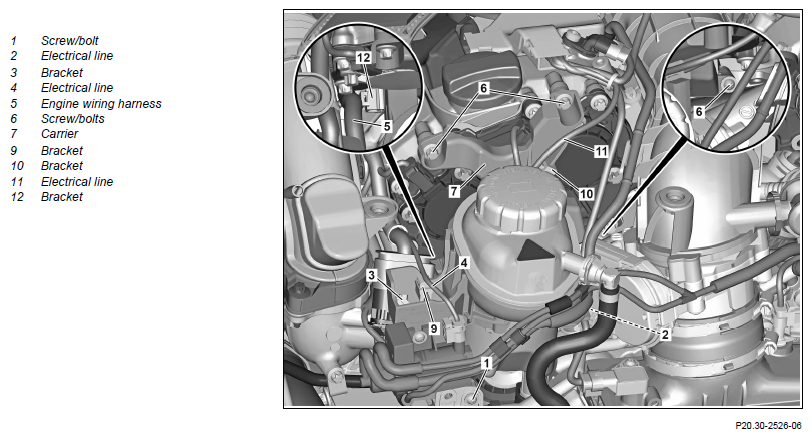

| 4 | Remove screw/bolt (1) | ||
| 5 | Detach electrical line (2) from carrier (7) | ||
| 6 | Unclip bracket (3) from carrier (7) | ||
| 7 | Detach holder (10) of electrical line (11) from carrier (7) | ||
| 8 | Detach holder (9) of electrical line (4) at carrier (7) | ||
| 9 | Detach holder (12) of Engine wiring harness (5) at carrier (7) | ||
| 10 | Remove screw/bolts (6) | *BA20.10-P-1009-01AA | |
| *BA20.10-P-1010-01AA | |||
| 11 | Remove carrier (7) | ||
| 12 | Install in the reverse order |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA20.10-P-1009-01AA | Bolt, bracket for expansion reservoir to cylinder head cover | Nm | 9 |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA20.10-P-1010-01AA | Bolt, bracket for expansion reservoir to cylinder head | Nm | 9 |
