Charging, Basic Function - GF09.00-P-9900A
Engine all (4xWD, CAR)

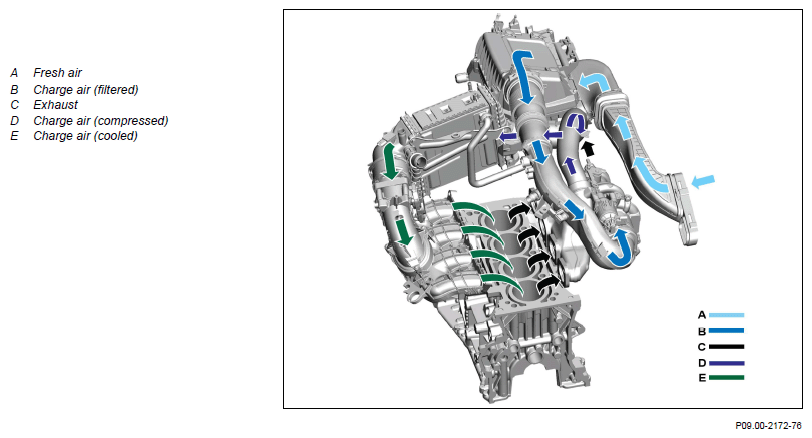

Example illustration: turbocharging
Overview
This document contains information on:
- General
- Function
General
The charging compresses the intake fresh air and increases the cylinder charge level. The engine output increases.
Function
The exhaust gases reach the turbine wheel via the intake on the exhaust gas turbocharger's turbine wheel housing.
Via a constriction, thermal energy is converted into kinetic energy and the turbine wheel starts to rotate.
The turbine wheel is on the same shaft as the compressor wheel. The compressor wheel is set in motion by the rotation of the turbine wheel and intakes fresh air.
The fresh air sucked in is compressed in the compressor wheel housing and reaches the engine through an outlet via the charge air cooler.
| Function schematics | |||
| Function schematic for charging | Engine 608 in model 118, 177, 247 | PE09.00-P-2500-97A | |
| Engine 282 in model 118, 177, 247 | PE09.00-P-2500-97B | ||
| Engine 260 in model 118, 177, 247 Engine 264 in model 167 | PE09.00-P-2500-97C | ||
| Engine 654 in model 118, 167, 177, 247 Engine 654 in model 213, 238, 257 as of model year 2021 Engine 656 in model 167 | PE09.00-P-2500-97D | ||
| Engine 256 in model 167 Engine 256 in model 213, 238 as of model year 2021 Engine 264 in model 213, 238, 257 as of model year 2021 | PE09.00-P-2500-97E | ||
| Engine 176, 177 in model 167 Engine 177.8 in model 290 | PE09.00-P-2500-97F | ||
| Engine 139 in model 118, 177, 247 | PE09.00-P-2500-97G | ||
| Engine 254 in model 206, 214, 254 Engine 256 in model 223 | PE09.00-P-2500-97H | ||
| Engine 176 in model 223 | PE09.00-P-2500-97I | ||
| Engine 279 in model 223 | PE09.00-P-2500-97J | ||
| Engine 654 in model 206, 214, 254 Engine 656 in model 223 | PE09.00-P-2500-97L | ||
| Engine 177.8 in model 192, 223, 232 | PE09.00-P-2500-97M | ||
| Additional basic functions | |||
| Boost pressure control, basic function | Engine all (4xWD) Engine all (CAR) | GF09.40-P-1000A | |
| Overrun mode bypass air, basic function | Engine 139, 176, 177, 254, 256, 260, 264, 279, 282 | GF09.40-P-1002A | |
| Charge air cooling, basic function | Engine all (4xWD) Engine all (CAR) | GF09.41-P-1000A | |
| Electric additional compressor, basic function | Engine 256 | GF09.50-P-1002A | |
| Basic function of pressure sensor upstream of exhaust gas turbocharger | Engine 139.9 | GF09.40-P-2001A | |
| Detailed information | |||
| Exhaust gas turbocharger, detailed information | Engine 608, 654, 656 | GF09.40-P-2500A | |
| Engine 139.9, 264 | GF09.40-P-2500B |
