Wiring Diagram For Multifunction Camera - PE54.21-P-2129-97DCB

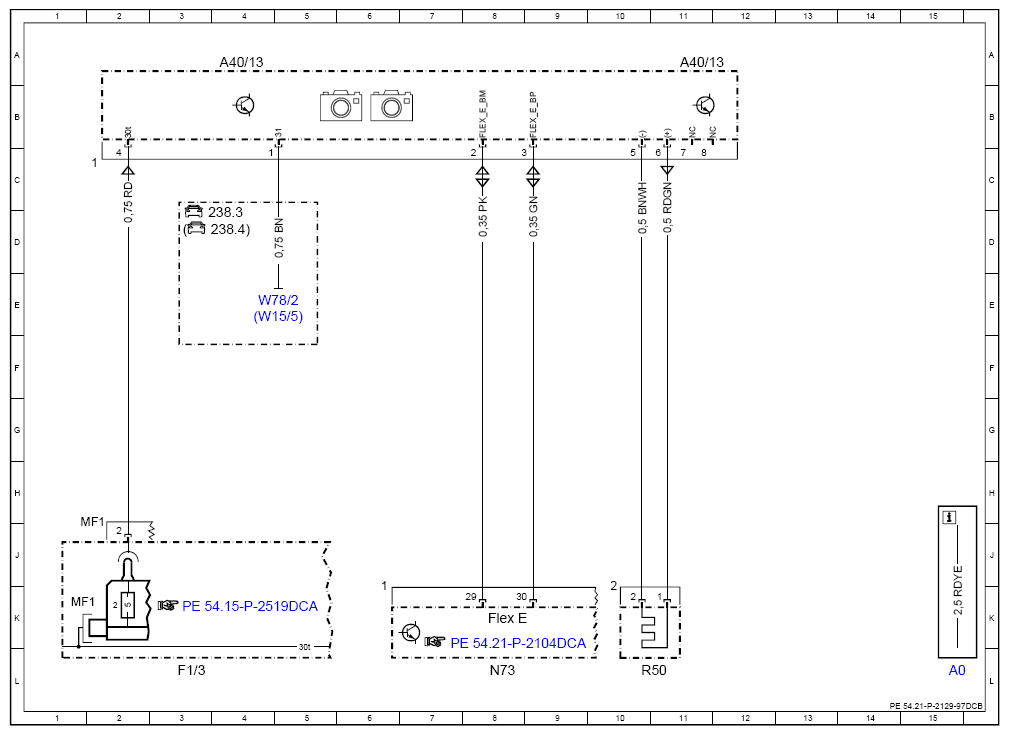

Model 238 up to model year 2021 Multifunction camera A40/13, stereo
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A40/13 | Stereo multifunction camera | 4A |
| A40/13 | Stereo multifunction camera | 11A |
| F1/3 | Passenger-side A-pillar fuse box | 3L |
| F1/3MF1 | Multiple fuse 1 | 1K |
| Flex E | Chassis FlexRay | 8K |
| N73 | Electronic ignition switch control unit | 8L |
| R50 | Auxiliary heater heating element | 10L |
| W15/5 | Left front footwell ground point | 4E |
| W78/2 | Roof ground point 2 | 4E |
