Wiring Diagram For Multifunction Camera - PE54.21-P-2129-97DCA

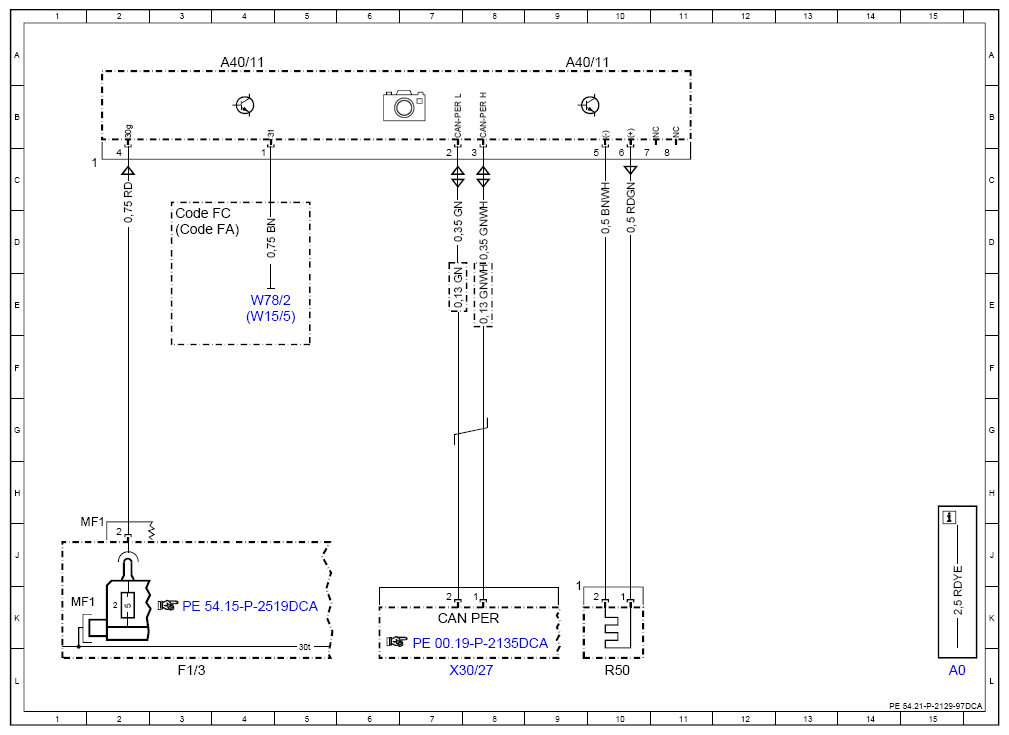

Model 238 up to model year 2021 Multifunction camera A40/11, mono
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A40/11 | Mono multifunction camera | 4A |
| A40/11 | Mono multifunction camera | 9A |
| CAN PER | Peripherals CAN | 7K |
| Code FA | CABRIOLET | 3D |
| Code FC | COUPE | 3D |
| F1/3 | Passenger-side A-pillar fuse box | 3L |
| F1/3MF1 | Multiple fuse 1 | 1K |
| R50 | Auxiliary heater heating element | 10L |
| W15/5 | Left front footwell ground point | 4E |
| W78/2 | Roof ground point 2 | 4E |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 7L |
