Wiring Diagram For Instrument Cluster (IC) Control Unit - PE54.30-P-2101-97DCA

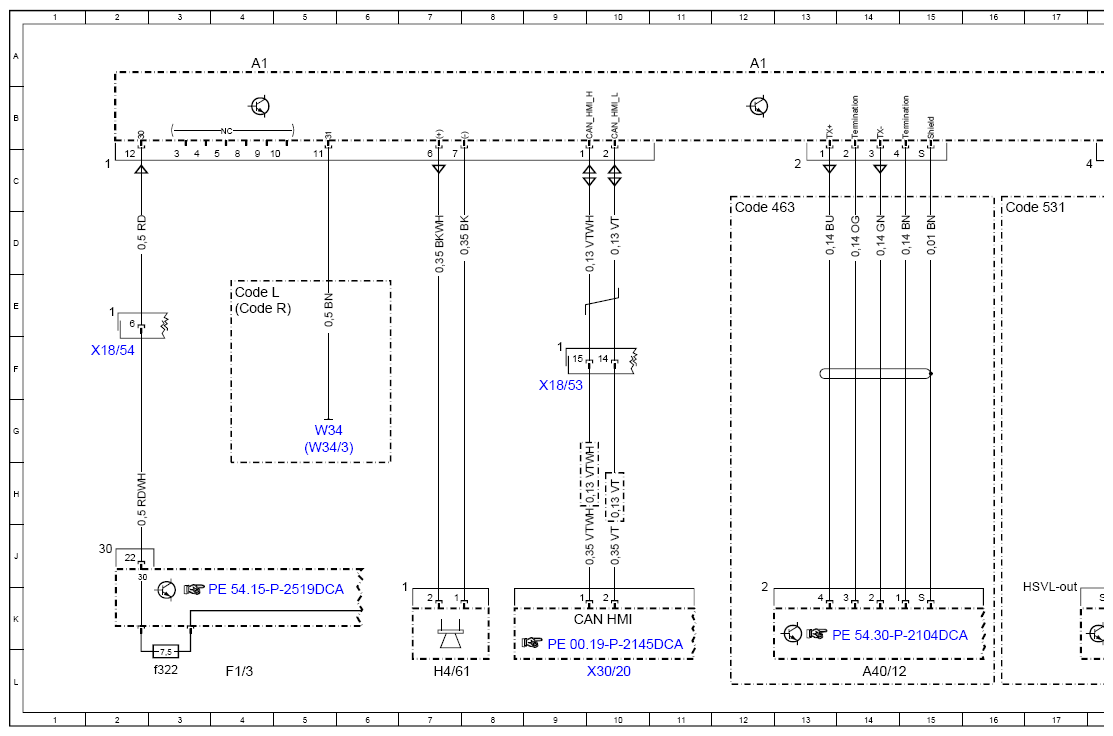

Model 238 up to model year 2021 Instrument clusterA1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| A1 | Instrument cluster | 4A |
| A1 | Instrument cluster | 12A |
| A1 | Instrument cluster | 19A |
| A26/17 | Head unit | 19L |
| A40/12 | Head-up display | 14L |
| CAN HMI | User interface CAN | 10K |
| Code 463 | Head-up display | 12D |
| Code 531 | COMAND APS | 16D |
| Code L | LEFT-HAND DRIVE | 4E |
| Code R | RIGHT-HAND DRIVE | 4E |
| F1/3 | Passenger-side A-pillar fuse box | 4L |
| F1/3f322 | Fuse 322 | 3L |
| H4/61 | Instrument cluster speaker | 7L |
| W34 | Left footwell ground point | 5G |
| W34/3 | Right footwell ground point | 5G |
| X18/53 | Driver-side cockpit/frame floor assembly electrical connector | 9F |
| X18/54 | Passenger-side cockpit/frame floor assembly electrical connector | 2F |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 10L |
