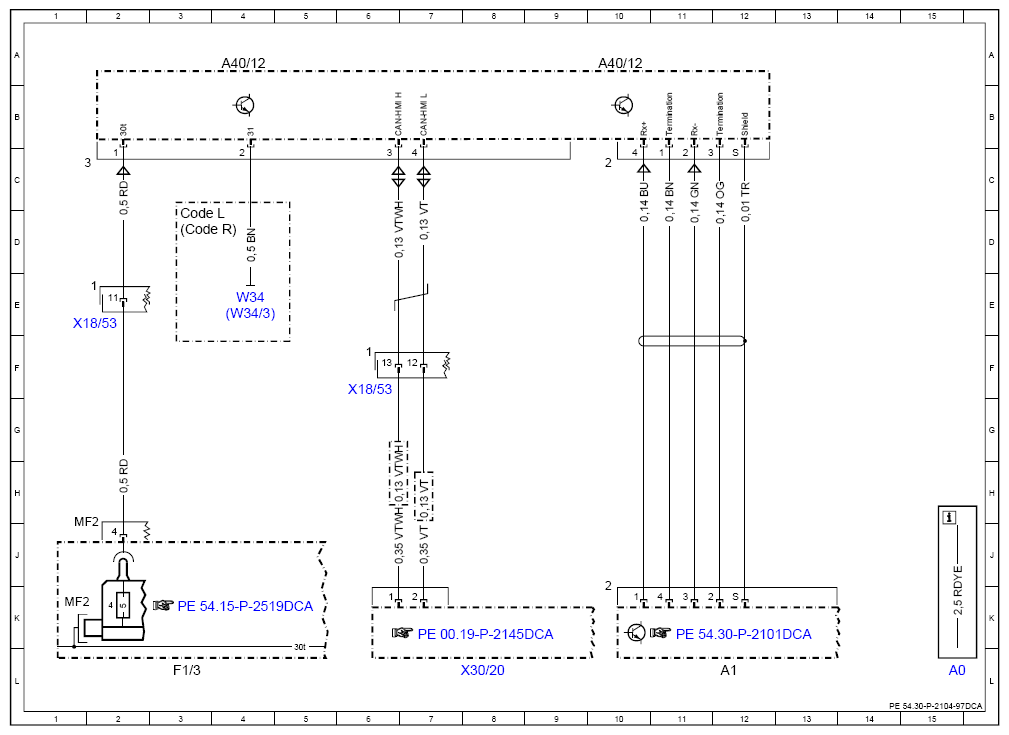

Wiring Diagram For Head-Up Display Control Unit - PE54.30-P-2104-97DCA
Model 238 up to model year 2021 with code 463 (Head-up display) Control unit A40/12
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A1 | Instrument cluster | 12L |
| A40/12 | Head-up display | 4A |
| A40/12 | Head-up display | 10A |
| Code 463 | Head-up display | - |
| Code L | LEFT-HAND DRIVE | 3D |
| Code R | RIGHT-HAND DRIVE | 3D |
| F1/3 | Passenger-side A-pillar fuse box | 3L |
| F1/3MF2 | Multiple fuse 2 | 1K |
| W34 | Left footwell ground point | 4E |
| W34/3 | Right footwell ground point | 4E |
| X18/53 | Driver-side cockpit/frame floor assembly electrical connector | 6F |
| X18/53 | Driver-side cockpit/frame floor assembly electrical connector | 2E |
| X30/20 | User interface CAN (CAN HMD potential distributor electrical connector | 8L |
