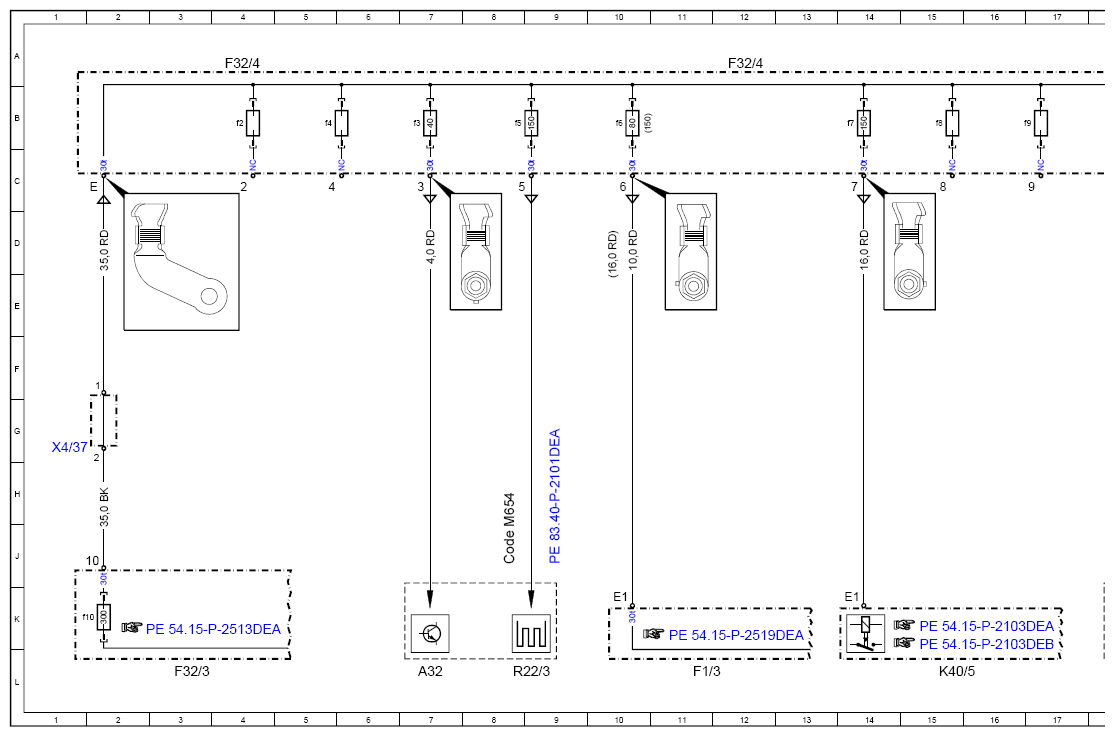

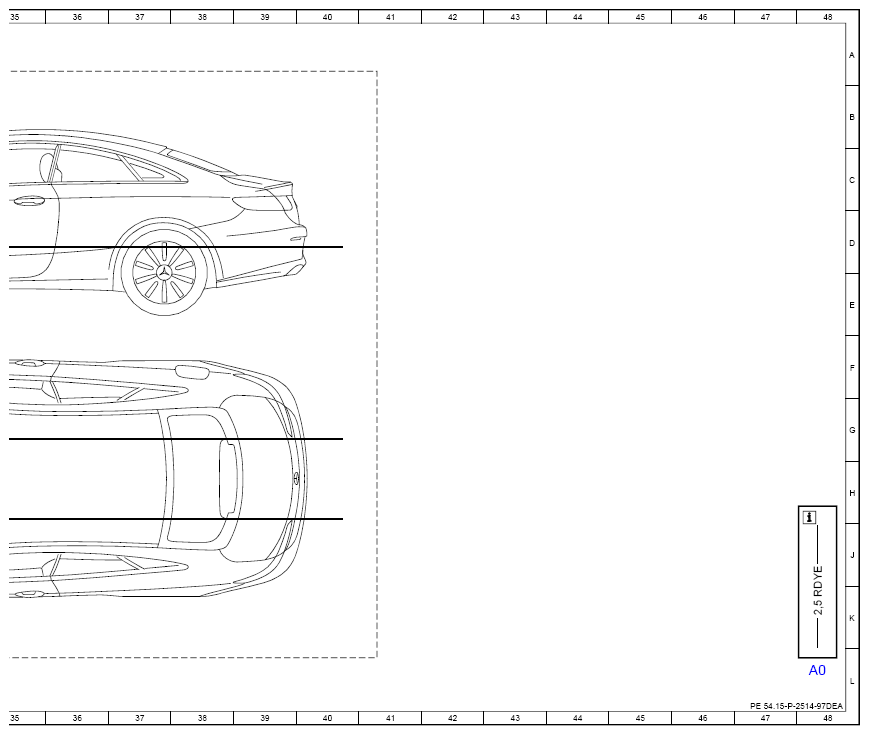

Wiring Diagram, Interior Pre-Fuse Box (F32/4) - PE54.15-P-2514-97DEA
Model 238 as of model year 2021 F32/4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| A32 | AC housing | 7L |
| Code L | LEFT-HAND DRIVE | 29G |
| Code M654 | DIESEL ENGINE OM654 | 8J |
| Code R | RIGHT-HAND DRIVE | 29J |
| F1/3 | Passenger-side A-pillar fuse box | 11L |
| F32/3 | Engine compartment pre-fuse box | 3L |
| F32/3f10 | Fuse 10 | 1K |

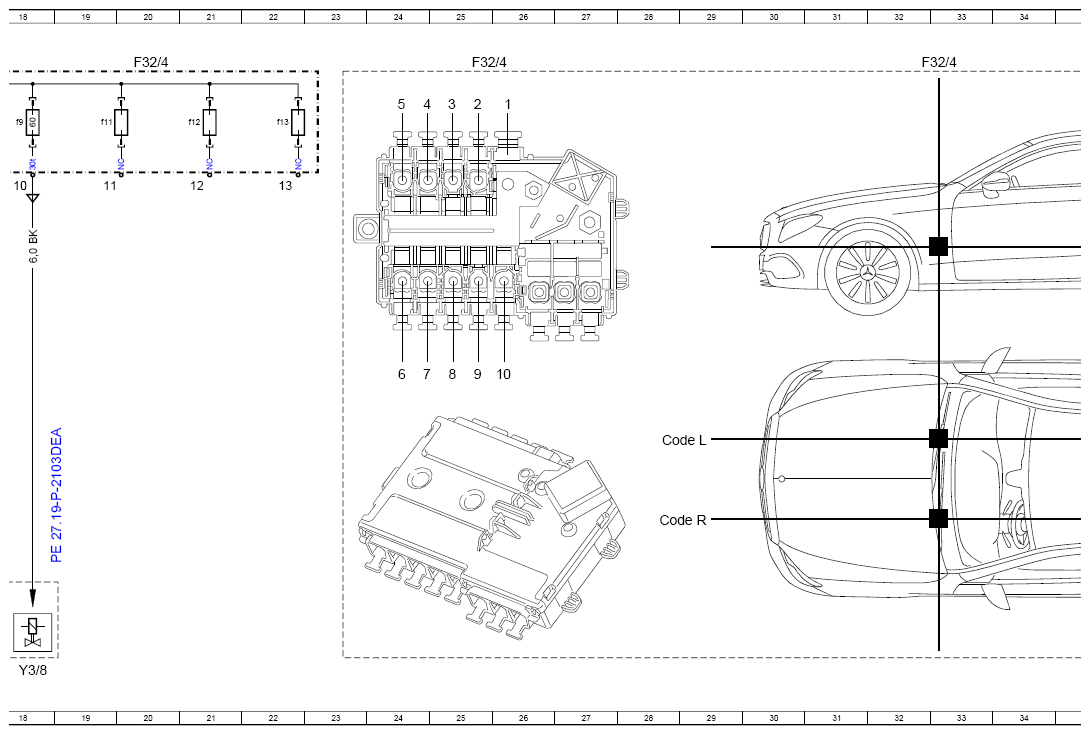

| F32/4 | Vehicle interior pre-fuse box | 4A |
| F32/4 | Vehicle interior pre-fuse box | 12A |
| F32/4 | Vehicle interior pre-fuse box | 20A |
| F32/4 | Vehicle interior pre-fuse box | 33A |
| F32/4 | Vehicle interior pre-fuse box | 25A |
| F32/4f11 | Fuse 11 | 19B |
| F32/4f12 | Fuse 12 | 21B |
| F32/4f13 | Fuse 13 | 22B |
| F32/4f2 | Fuse 2 | 4B |
| F32/4f3 | Fuse 3 | 7B |
| F32/4f4 | Fuse 4 | 5B |
| F32/4f5 | Fuse 5 | 8B |
| F32/4f6 | Fuse 6 | 10B |
| F32/4f7 | Fuse 7 | 14B |
| F32/4f8 | Fuse 8 | 15B |
| F32/4f9 | Fuse 9 | 16B |
| F32/4f9 | Fuse 9 | 18B |
| K40/5 | Rear fuse and relay module | 15L |
| R22/3 | PTC heater booster | 8L |
| X4/37 | Terminal block (circuit 30) | 1G |
| Y3/8 | Fully integrated transmission control controller unit | 18L |
