Rear Fuse And Relay Box Wiring Diagram - PE54.15-P-2103-97DEB

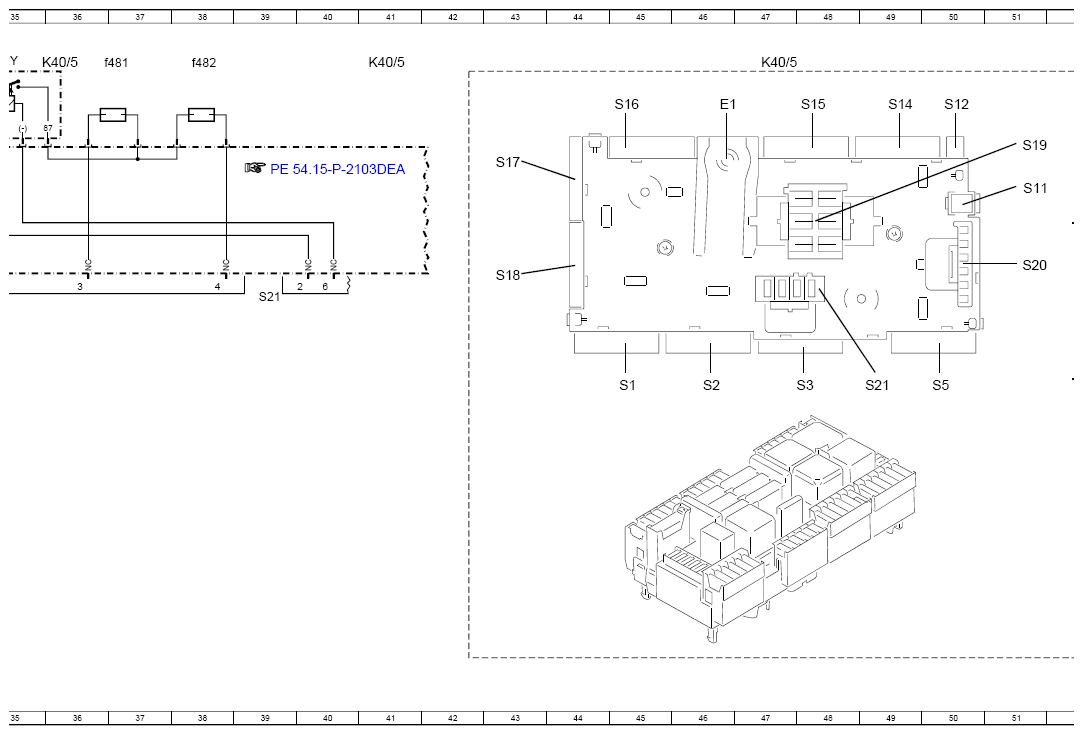

Model 238 as of model year 2021 Fuse and relay box K40/5, connector S5, S11, S12, S14, S20, S21
| Code: | Designation: | Position: |
|---|---|---|

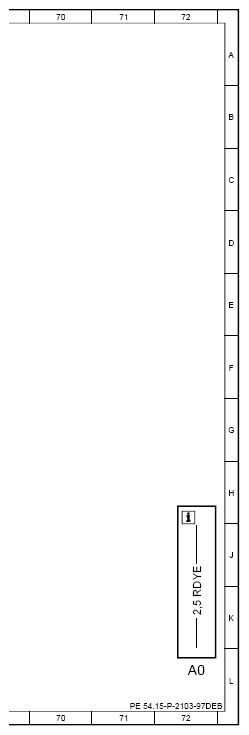

| A0 | Use of wiring diagrams | 72L |
| A2/155 | Telephone and Remote Park-Pilot/stationary heater antenna changeover switch | 31L |
| A2/168 | Telephone antenna changeover switch | 31L |
| Code 362 | HERMES LTE | 31J |
| Code 550 | Trailer hitch | 19J |
| Code 6U9 | Positioning and tracking system subharness pre-installation | 13J |
| Code 811 | Advanced sound system | 15J |
| Code 899 | Wireless phone charging at front and antenna | 31J |
| Code 906 | Front armrest heater | 12J |
| Code B24 | Remote control for stationary heater | 31H |
| Code FA | CABRIOLET | 30J |
| F32/4 | Vehicle interior pre-fuse box | 3L |
| F32/4f7 | Fuse 7 | 2K |
| K120 | Theft detection system horn relay | 14L |

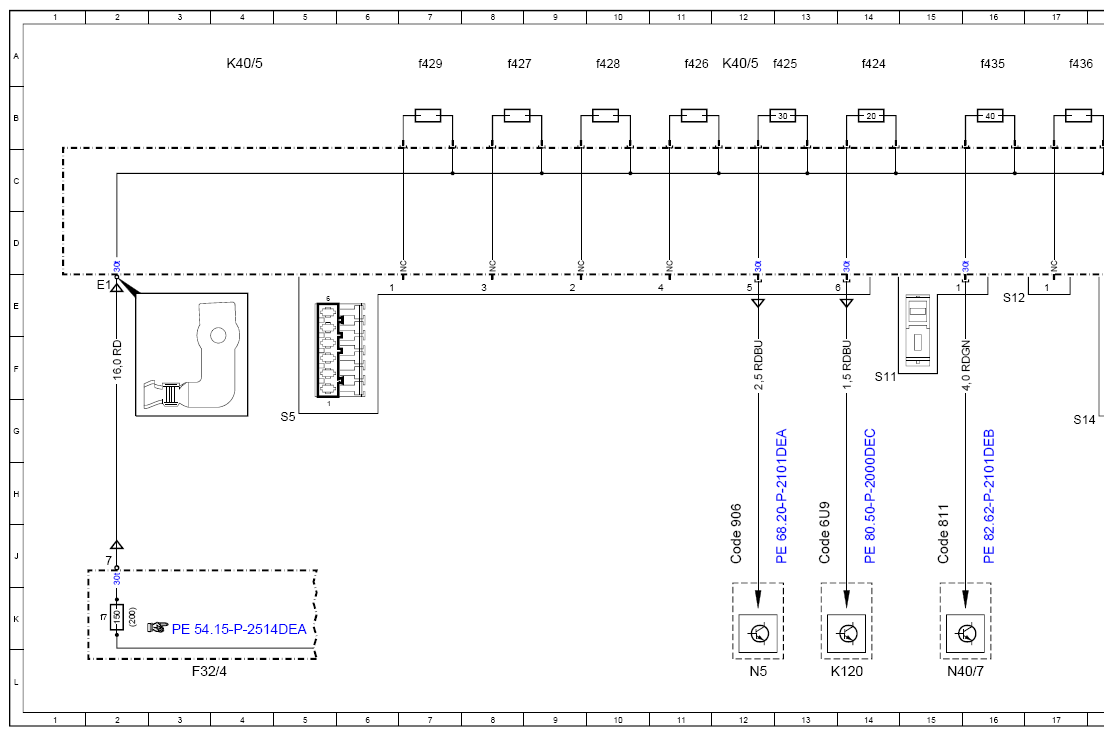

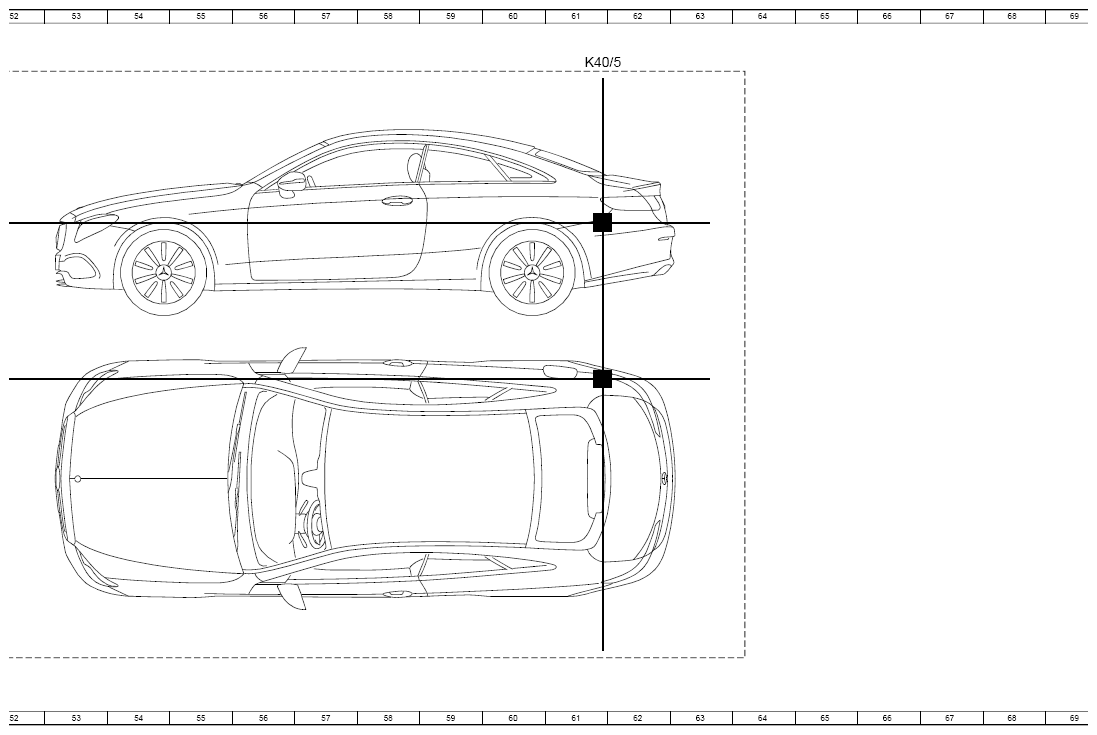

| K40/5 | Rear fuse and relay module | 4A |
| K40/5 | Rear fuse and relay module | 12A |
| K40/5 | Rear fuse and relay module | 18A |
| K40/5 | Rear fuse and relay module | 28A |
| K40/5 | Rear fuse and relay module | 36A |
| K40/5 | Rear fuse and relay module | 41A |
| K40/5 | Rear fuse and relay module | 47A |
| K40/5 | Rear fuse and relay module | 61A |
| K40/5f424 | Fuse 424 | 14A |
| K40/5f425 | Fuse 425 | 13A |
| K40/5f426 | Fuse 426 | 11A |
| K40/5f427 | Fuse 427 | 8A |
| K40/5f428 | Fuse 428 | 10A |
| K40/5f429 | Fuse 429 | 7A |
| K40/5f435 | Fuse 435 | 16A |
| K40/5f436 | Fuse 436 | 17A |
| K40/5f443 | Fuse 443 | 27A |
| K40/5f444 | Fuse 444 | 25A |
| K40/5f445 | Fuse 445 | 24A |
| K40/5f446 | Fuse 446 | 22A |
| K40/5f447 | Fuse 447 | 21A |
| K40/5f448 | Fuse 448 | 20A |
| K40/5f479 | Fuse 479 | 29A |
| K40/5f480 | Fuse 480 | 30A |
| K40/5f481 | Fuse 481 | 37A |
| K40/5f482 | Fuse 482 | 38A |
| K40/5f483 | Fuse 483 | 32A |
| K40/5f484 | Fuse 484 | 33A |
| K40/5kY | Backup relay | 35A |

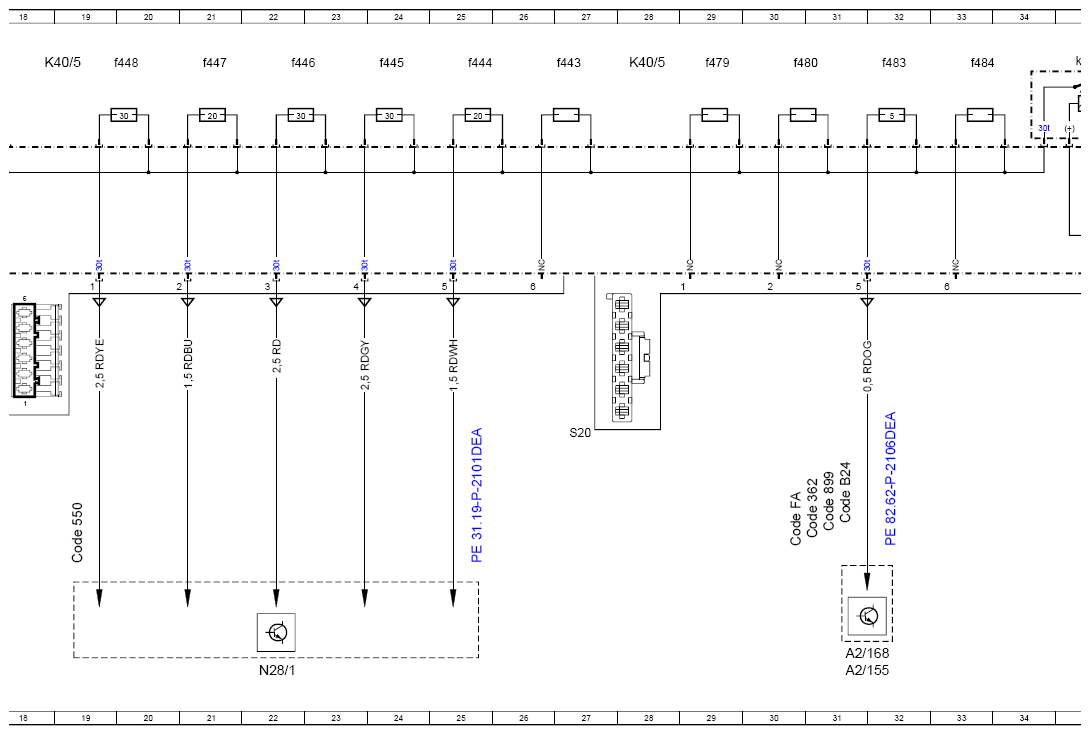

| N28/1 | Trailer recognition control unit | 22L |
| N40/7 | Advanced sound system amplifier control unit | 15L |
| N5 | Armrest heater control unit | 12L |
