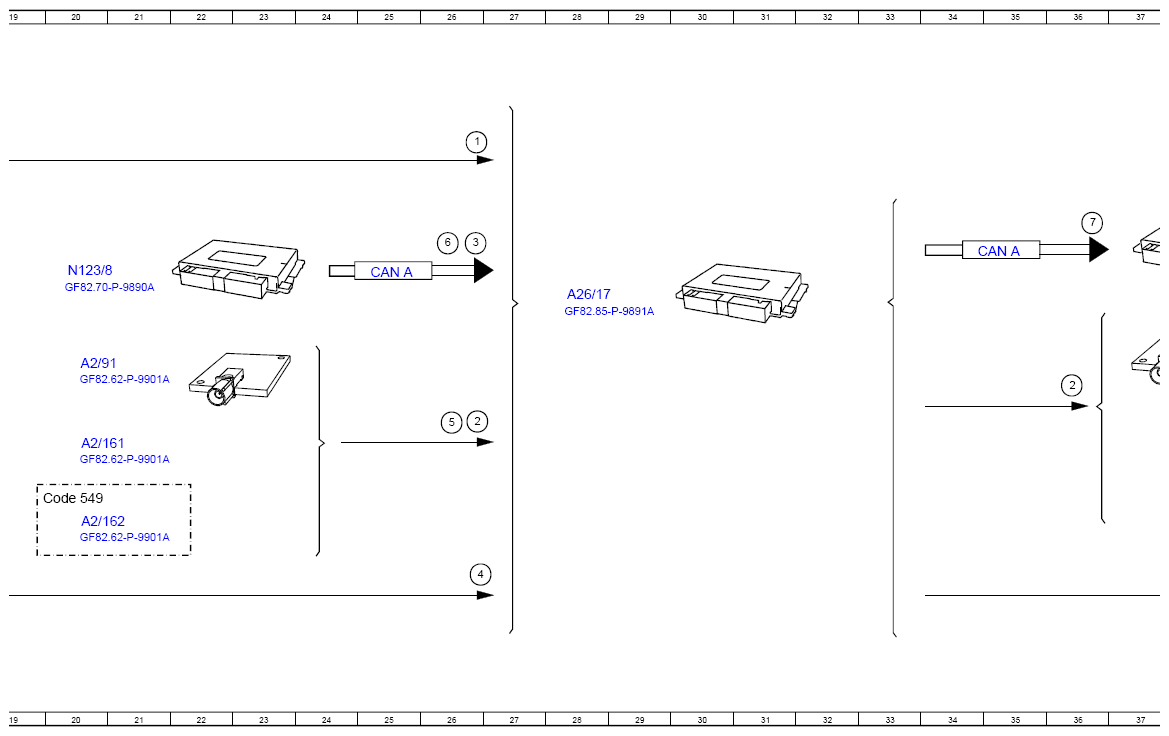

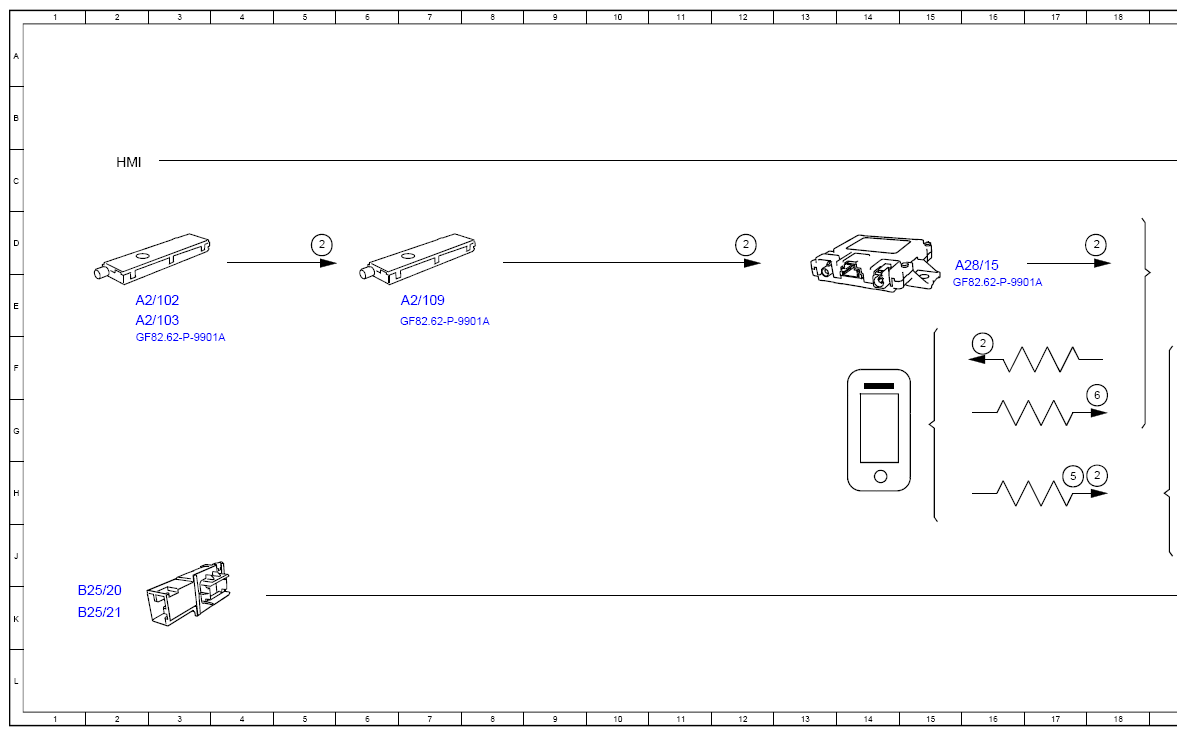

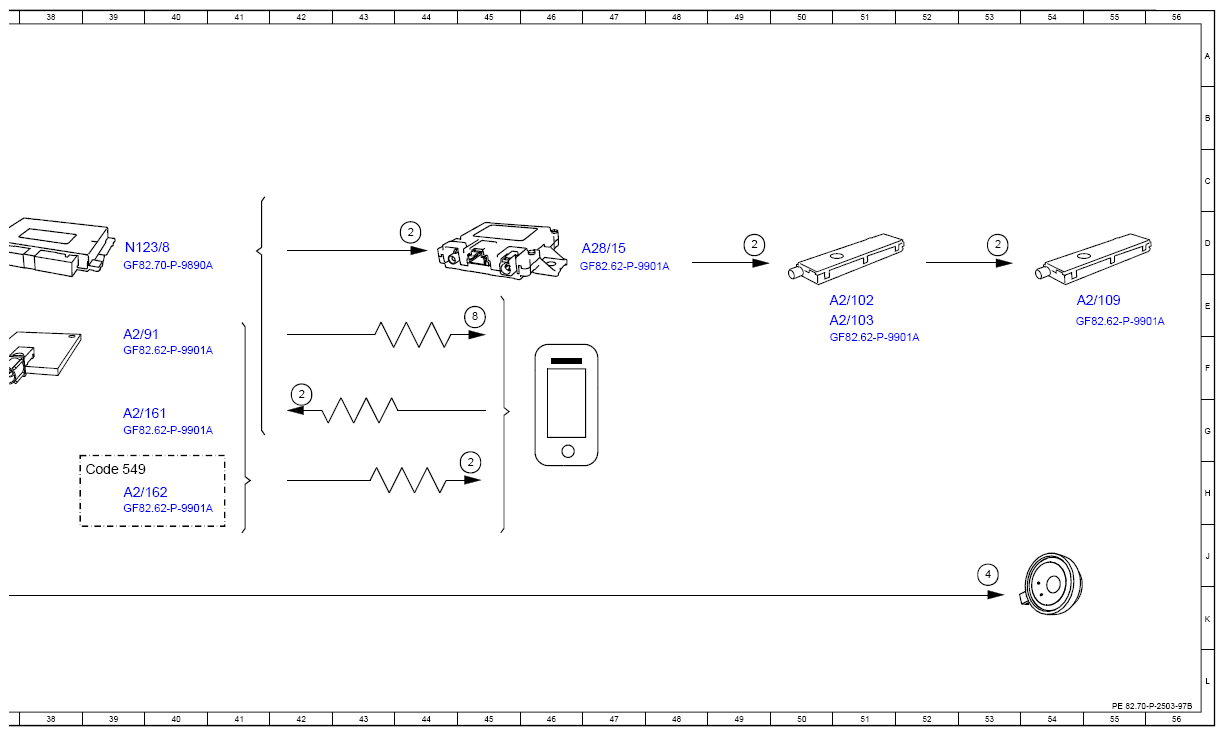

Function Schematic For Telephony With Mobile Phone Cradle - PE82.70-P-2503-97B
Model 213, 238.3, 257 as of model year 2021 with code 899 (Front wireless telephone charging and antenna)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 26B |
| 2 | Telephone, signal | 18D |
| 2 | Telephone, signal | 12D |
| 2 | Telephone, signal | 44D |
| 2 | Telephone, signal | 5D |
| 2 | Telephone, signal | 53D |
| 2 | Telephone, signal | 49D |
| 2 | Telephone, signal | 16F |
| 2 | Telephone, signal | 18H |
| 2 | Telephone, signal | 27G |
| 2 | Telephone, signal | 36F |
| 2 | Telephone, signal | 45H |
| 2 | Telephone, signal | 42G |
| 3 | Cellular telephone system compensator, status | 26D |
| 4 | Audio, signal | 53J |
| 4 | Audio, signal | 27J |
| 5 | Address data, signal | 17H |
| 5 | Address data, signal | 26G |
| 6 | Charge level, status | 18G |
| 6 | Charge level, status | 26D |
| 7 | Charging voltage and charging current, request | 36D |
| 8 | Charging current, energy flow | 45E |
| A2/102 | Left telephone antenna | 2E |
| A2/102 | Left telephone antenna | 50E |
| A2/103 | Right telephone antenna | 2E |
| A2/103 | Right telephone antenna | 50E |
| A2/109 | Telephone antenna splitter | 7E |
| A2/109 | Telephone antenna splitter | 54E |
| A2/161 | Wi-Fi antenna 1 | 20G |
| A2/161 | Wi-Fi antenna 1 | 39G |
| A2/162 | Wi-Fi antenna 2 | 20J |
| A2/162 | Wi-Fi antenna 2 | 39H |
| A2/91 | Bluetooth® antenna | 20F |
| A2/91 | Bluetooth® antenna | 39F |
| A26/17 | Head unit | 28E |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 16D |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 47D |
| B25/20 | Driver hands-free system microphone | 1K |
| B25/21 | Front passenger hands-free system microphone | 1K |
| CAN A | Telematics CAN | 25E |
| CAN A | Telematics CAN | 35D |
| Code 549 | Connect 20 HIGH (NTG6) | 19H |
| Code 549 | Connect 20 HIGH (NTG6) | 39H |
| N123/8 | Front mobile phone cradle control unit | 20E |
| N123/8 | Front mobile phone cradle control unit | 39D |
