Electrical Function Schematic For ENERGIZING Convenience Control - PE82.90-P-2056-97DCA
Model 238 up to model year 2021 with code P72 (ENERGIZING comfort control)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, signal | 30F |
| 10 | Seat heater, request | 10E |
| 10 | Seat heater, request | 4J |
| 10 | Seat heater, request | 19H |
| 11 | Armrest heater, request | 20H |
| 11 | Armrest heater, request | 9G |
| 12 | Steering wheel heater, request | 21H |
| 12 | Steering wheel heater, request | 18K |
| 13 | Massage function ON, request | 23H |
| 13 | Massage function ON, request | 9A |
| 14 | Stationary heater, request | 5C |
| 14 | Stationary heater, request | 24H |
| 15 | Instrument cluster, request | 35K |
| 16 | Electric parking brake, request | 25H |
| 16 | Electric parking brake, request | 19B |
| 17 | Open/close central locking, request | 26H |
| 18 | Power window convenience feature, request | 26H |
| 18 | Power window convenience feature, request | 10G |
| 19 | Panoramic sliding sunroof motor, request | 26H |
| 19 | Panoramic sliding sunroof motor, request | 4F |
| 2 | Engine running, signal | 15F |
| 2 | Engine running, signal | 24E |
| 2 | Engine running, signal | 30F |
| 20 | Roller sun blind motor, request | 28H |
| 20 | Roller sun blind motor, request | 5F |
| 20 | Roller sun blind motor, request | 6J |
| 3 | Vehicle speed, signal | 15B |
| 3 | Vehicle speed, signal | 30G |
| 4 | Operation, signal | 31C |
| 4 | Operation, signal | 16K |
| 4 | Operation, signal | 22K |
| 4 | Operation, signal | 30G |
| 4 | Operation, signal | 22L |
| 4 | Operation, signal | 32F |
| 5 | Switch-on request, signal | 36D |
| 6 | High-speed video link video signal data transfer, signal | 36D |
| 7 | Climate control, request | 15H |
| 7 | Climate control, request | 19D |
| 8 | Ambience illumination, request | 16H |
| 8 | Ambience illumination, request | 9K |
| 9 | Seat ventilation, request | 17H |
| 9 | Seat ventilation, request | 9E |
| 9 | Seat ventilation, request | 3J |

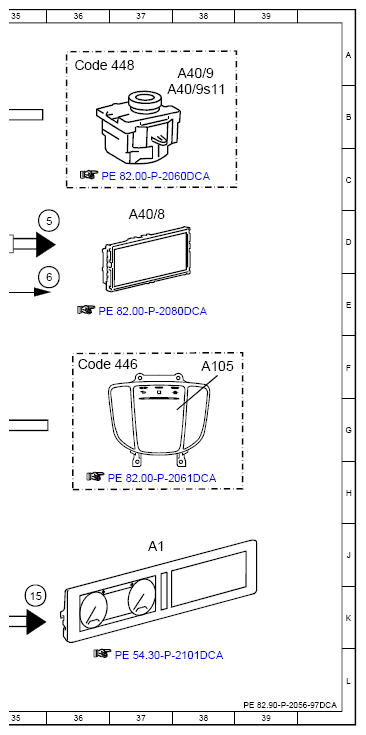

| A1 | Instrument cluster | 37J |
| A105 | Touchpad | 38F |
| A26/17 | Head unit | 31D |
| A40/8 | Audio/COMAND display | 37D |
| A40/9 | Audio/COMAND control panel | 38A |
| A40/9s11 | Audio/COMAND controller | 38B |

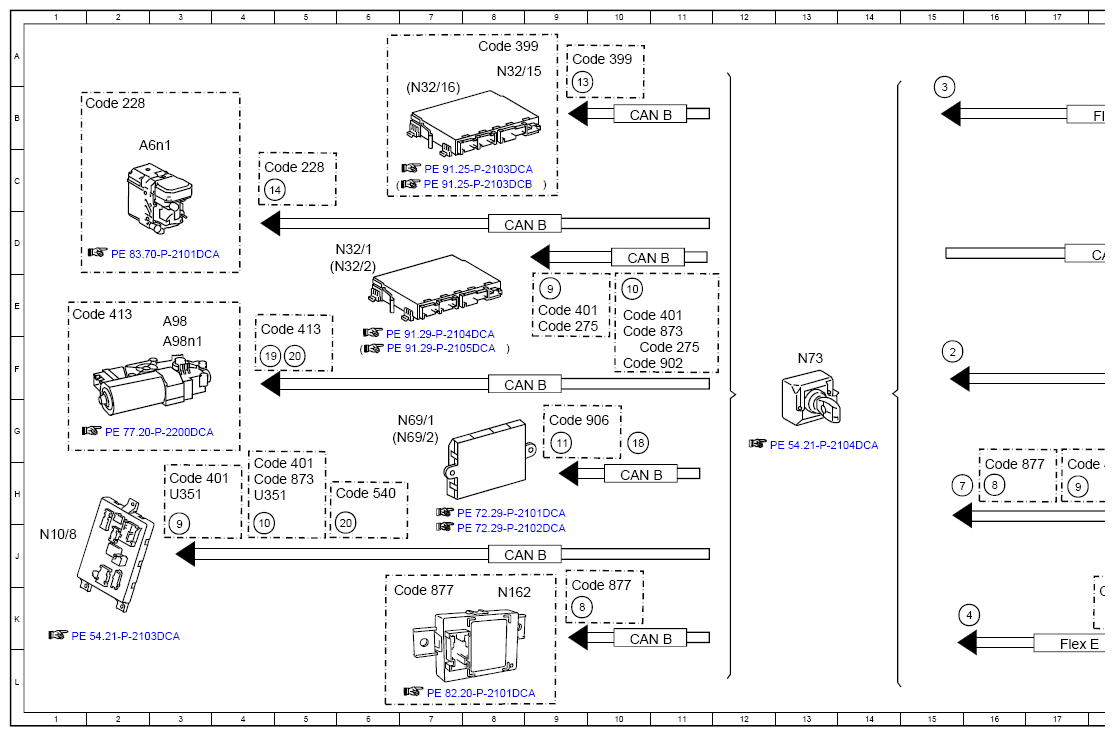

| A6n1 | Stationary heater control unit | 2C |
| A98 | Panoramic sliding roof control module | 3E |
| A98n1 | Panoramic sliding roof control unit | 3F |

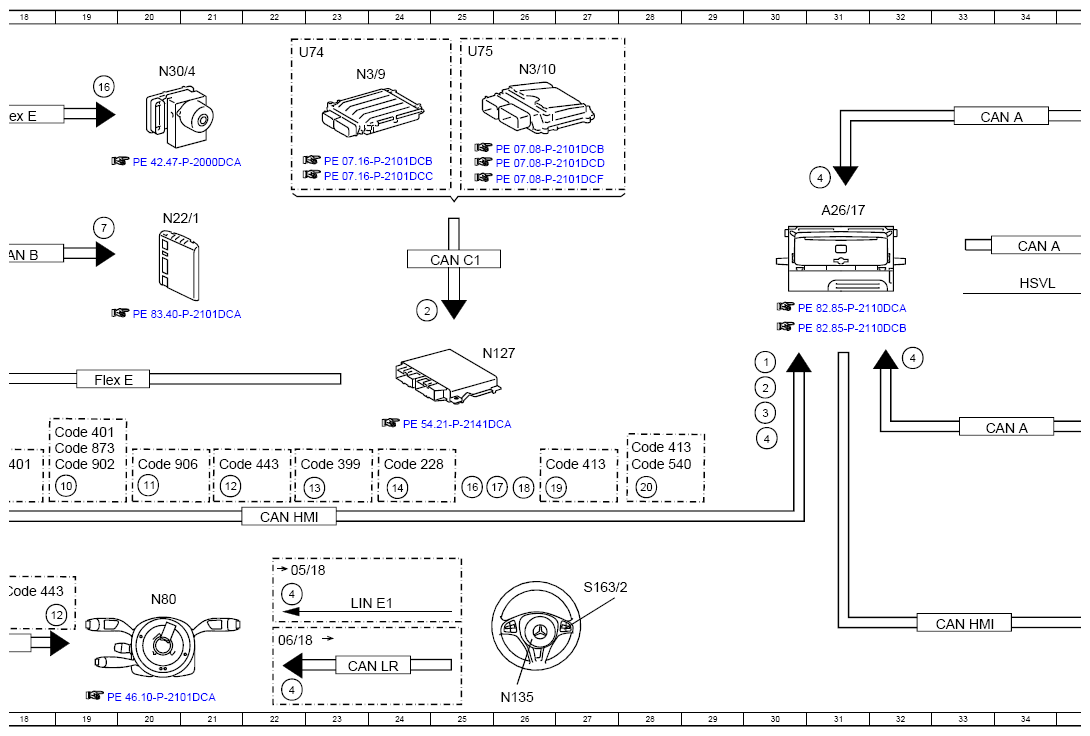

| CAN A | Telematics CAN | 34D |
| CAN A | Telematics CAN | 34G |
| CAN A | Telematics CAN | 33B |
| CAN B | Interior CAN | 10B |
| CAN B | Interior CAN | 10D |
| CAN B | Interior CAN | 10K |
| CAN B | Interior CAN | 10H |
| CAN B | Interior CAN | 8D |
| CAN B | Interior CAN | 8F |
| CAN B | Interior CAN | 8J |
| CAN B | Interior CAN | 18D |
| CAN C1 | Drive train CAN | 25D |
| CAN HMI | User interface CAN | 22H |
| CAN HMI | User interface CAN | 33K |
| CAN LR | Steering wheel CAN | 23L |
| Code 228 | Stationary heater | 1B |
| Code 228 | Stationary heater | 24H |
| Code 228 | Stationary heater | 4C |
| Code 275 | Memory package | 10F |
| Code 275 | Memory package | 9E |
| Code 399 | Front multicontour seats with massage function | 8A |
| Code 399 | Front multicontour seats with massage function | 22H |
| Code 399 | Front multicontour seats with massage function | 9A |
| Code 401 | Seat climate control for driver and front passenger | 17H |
| Code 401 | Seat climate control for driver and front passenger | 18G |
| Code 401 | Seat climate control for driver and front passenger | 3H |
| Code 401 | Seat climate control for driver and front passenger | 4H |
| Code 401 | Seat climate control for driver and front passenger | 10E |
| Code 401 | Seat climate control for driver and front passenger | 9E |
| Code 413 | Panoramic sliding sunroof | 1E |
| Code 413 | Panoramic sliding sunroof | 26H |
| Code 413 | Panoramic sliding sunroof | 28G |
| Code 413 | Panoramic sliding sunroof | 4E |
| Code 443 | Steering wheel heater | 21H |
| Code 443 | Steering wheel heater | 18K |
| Code 446 | Touchpad only | 36F |
| Code 448 | Touchpad | 36A |
| Code 540 | Electric roller sun blind for rear window | 28H |
| Code 540 | Electric roller sun blind for rear window | 5H |
| Code 873 | Seat heater for driver and front passenger | 18G |
| Code 873 | Seat heater for driver and front passenger | 4H |
| Code 873 | Seat heater for driver and front passenger | 10E |
| Code 877 | Ambiance illumination | 6K |
| Code 877 | Ambiance illumination | 16H |
| Code 877 | Ambiance illumination | 9K |
| Code 902 | Seat heater Plus for driver and front passenger | 18H |
| Code 902 | Seat heater Plus for driver and front passenger | 10F |
| Code 906 | Front armrest heater | 20H |
| Code 906 | Front armrest heater | 9G |
| Flex E | Chassis FlexRay | 18B |
| Flex E | Chassis FlexRay | 19F |
| Flex E | Chassis FlexRay | 17K |
| HSVL | High-speed video link | 34E |
| LIN E1 | Steering LIN | 23K |
| N10/8 | Rear SAM control unit | 1J |
| N127 | Drivetrain control unit | 25F |
| N135 | Steering wheel electronics | 26L |
| N162 | Ambiance illumination control unit | 8K |
| N22/1 | Climate control, control unit | 20D |
| N3/10 | ME-SFI [ME] control unit | 26A |
| N3/9 | CDI control unit | 23A |
| N30/4 | Electronic Stability Program control unit | 20A |
| N32/1 | Driver seat control unit | 6D |
| N32/15 | Left front multicontour seat control unit | 8A |
| N32/16 | Right front multicontour seat control unit | 7B |
| N32/2 | Front passenger seat control unit | 6D |
| N69/1 | Left front door control unit | 7G |
| N69/2 | Right front door control unit | 7G |
| N73 | Electronic ignition switch control unit | 13F |
| N80 | Steering column module control unit | 20K |
| S163/2 | Head unit multifunction steering wheel button group | 27K |
| U351 | Valid without code (275) Memory package | 3H |
| U351 | Valid without code (275) Memory package | 4H |
| U74 | Valid for diesel engines | 22A |
| U75 | Valid for gasoline engines | 25A |
