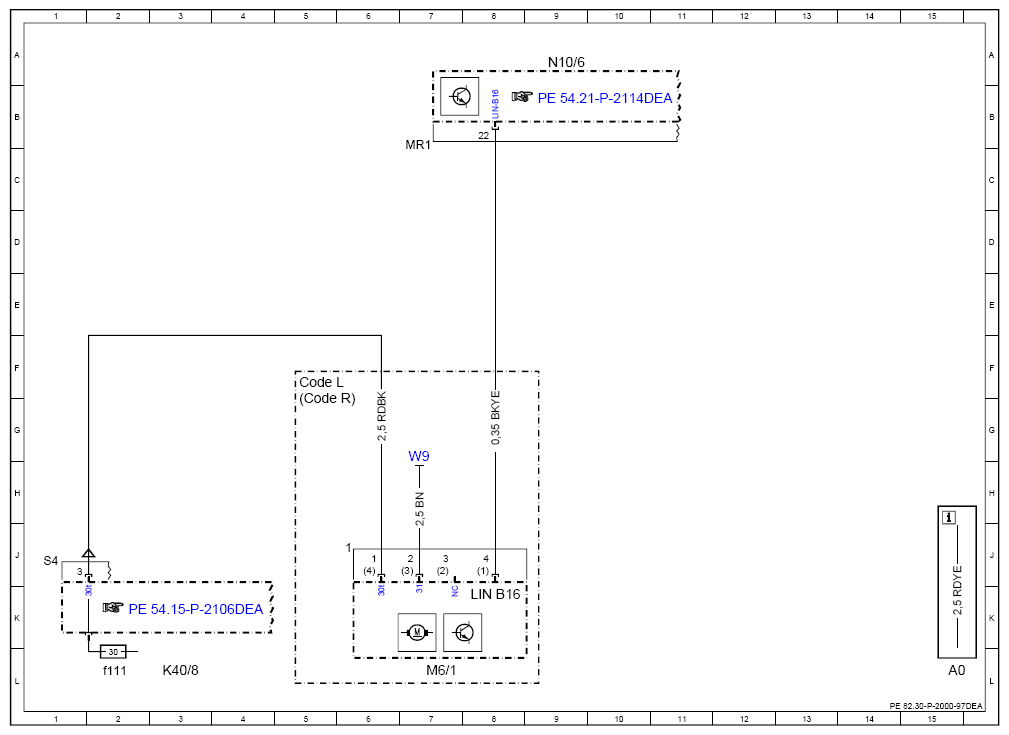

Wiring Diagram Of Windshield Wiper - PE82.30-P-2000-97DEA
Model 238 as of model year 2021 M6/1
| Code: | Designation: | Position: |
|---|---|---|
| AO | Use of wiring diagrams | 15L |
| Code L | LEFT-HAND DRIVE | 5F |
| Code R | RIGHT-HAND DRIVE | 5G |
| K40/8 | Engine fuse and relay module | 3L |
| K40/8f111 | Fuse 111 | 2L |
| LIN B16 | Rain and light sensor LIN | 8K |
| M6/1 | Wiper motor | 7L |
| N10/6 | Front SAM control unit | 9A |
| W9 | Left front ground point (at lamp unit) | 7H |
