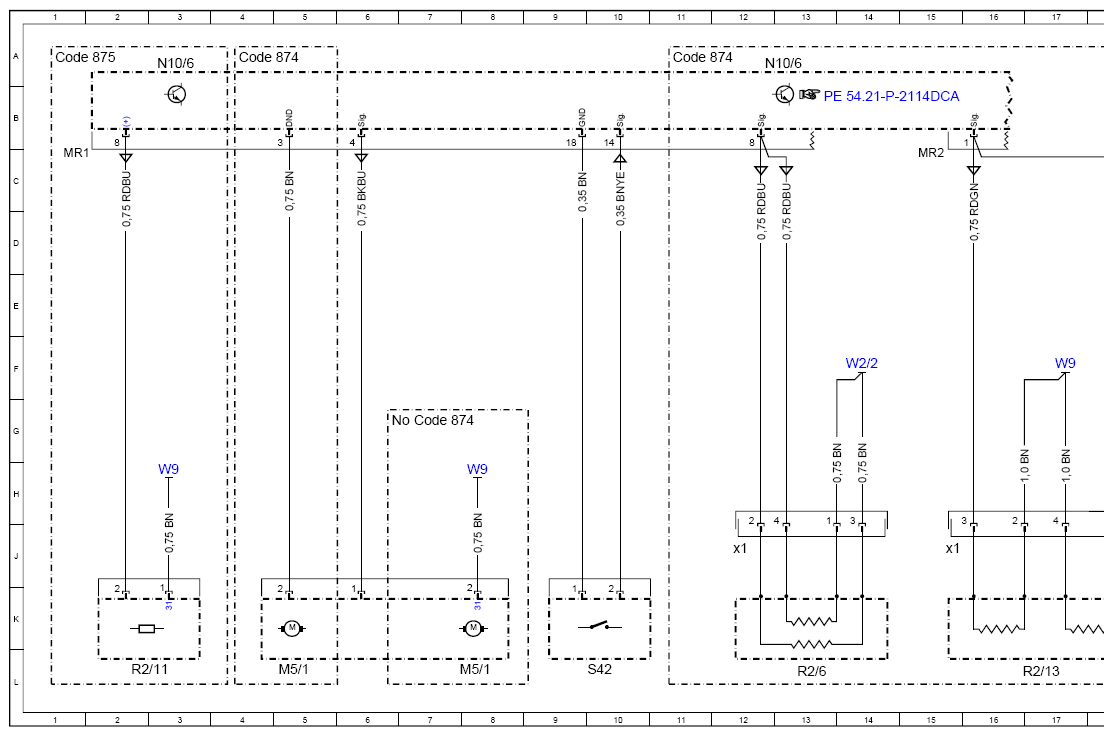

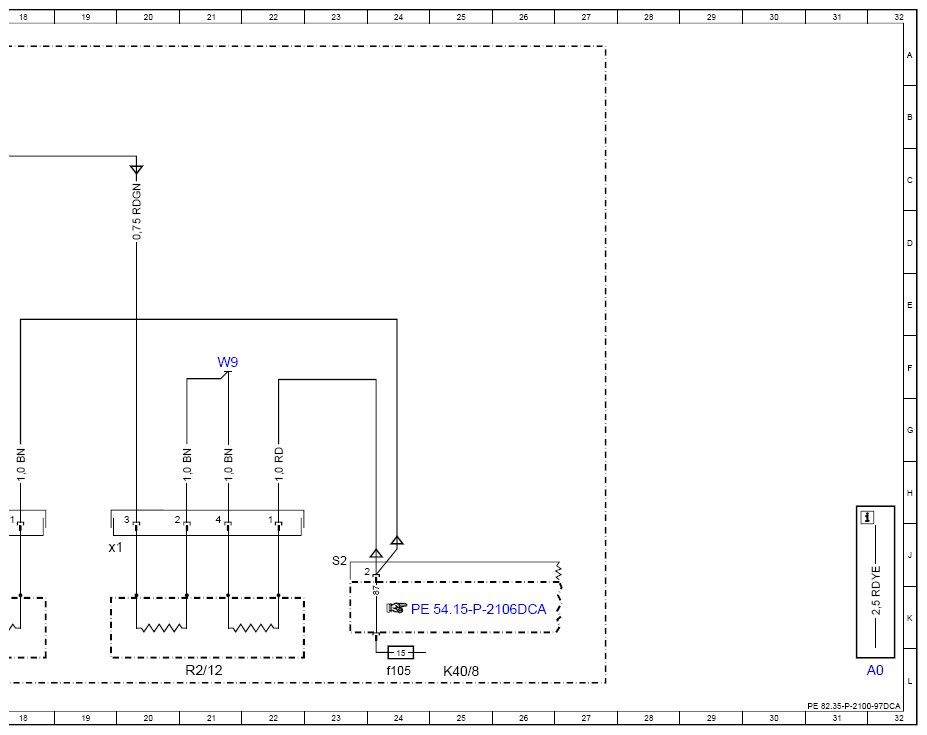

Wiring Diagram Of Windshield Washer System - PE82.35-P-2100-97DCA
Model 238 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| AO | Use of wiring diagrams | 32L |
| Code 874 | MAGIC VISION CONTROL | 4A |
| Code 874 | MAGIC VISION CONTROL | 11A |
| Code 874 | MAGIC VISION CONTROL | 7G |
| Code 875 | Heated windshield washer system | 1A |
| K40/8 | Engine fuse and relay module | 25L |
| K40/8f105 | Fuse 105 | 24L |
| M5/1 | Windshield washer system pump | 8L |
| M5/1 | Windshield washer system pump | 5L |
| N10/6 | Front SAM control unit | 13A |
| N10/6 | Front SAM control unit | 3A |
| R2/11 | Spray nozzle hose heater | 2L |
| R2/12 | Left heated wiper blade | 21L |
| R2/12x1 | - | 19J |
| R2/13 | Right heated wiper blade | 17L |
| R2/13x1 | - | 15J |
| R2/6 | Windshield washer system junction box | 13L |
| R2/6x1 | - | 12J |
| S42 | Windshield washer fluid level indicator switch | 10L |
| W2/2 | Left front ground point | 14F |
| W9 | Left front ground point (at lamp unit) | 3H |
| W9 | Left front ground point (at lamp unit) | 8H |
| W9 | Left front ground point (at lamp unit) | 17F |
| W9 | Left front ground point (at lamp unit) | 21F |
