Telephone (TEL) Wiring Diagram - PE82.70-P-2000-97DEA

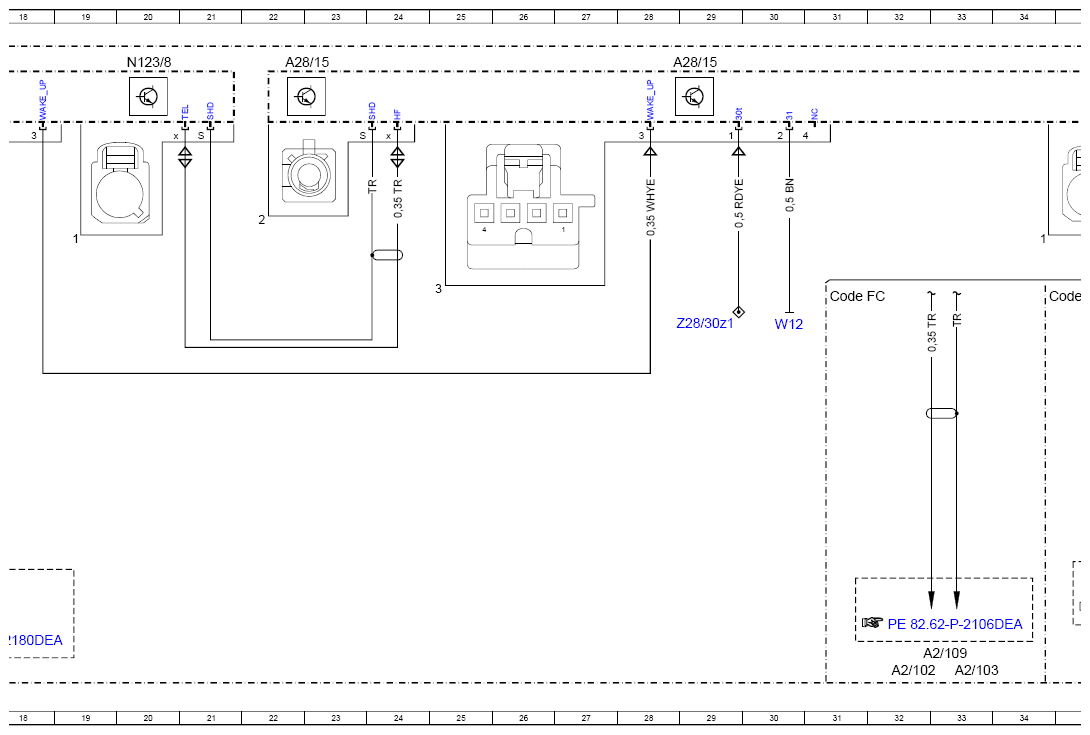

Model 238 as of model year 2021 Control units N123/8, N123/9 and antenna amplifier A28/15
| Code: | Designation: | Position: |
|---|---|---|

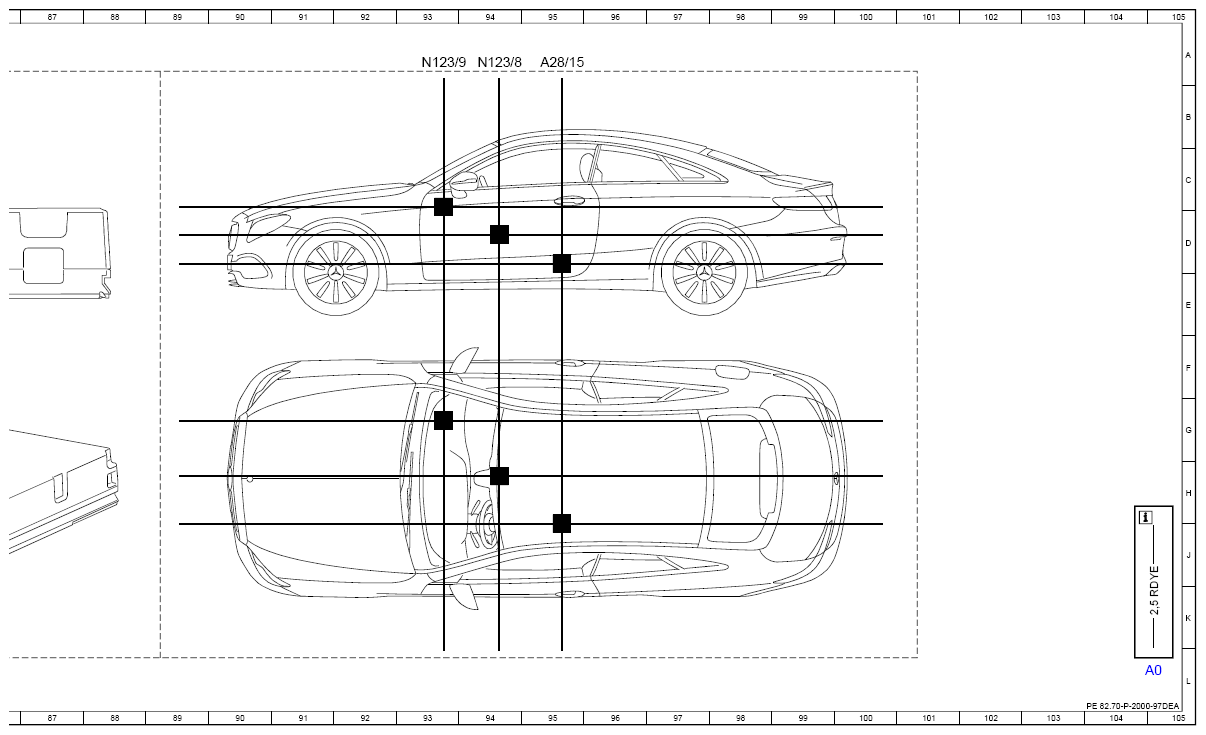

| AO | Use of wiring diagrams | 105L |
| A2/102 | Left telephone antenna | 36L |
| A2/102 | Left telephone antenna | 32L |
| A2/102 | Left telephone antenna | 56L |
| A2/103 | Right telephone antenna | 37L |
| A2/103 | Right telephone antenna | 33L |
| A2/103 | Right telephone antenna | 57L |
| A2/109 | Telephone antenna splitter | 33L |
| A2/109 | Telephone antenna splitter | 36L |
| A2/109 | Telephone antenna splitter | 56L |
| A2/155 | Telephone and Remote Park-Pilot/stationary heater antenna changeover switch | 40L |
| A2/155 | Telephone and Remote Park-Pilot/stationary heater antenna changeover switch | 63L |
| A2/156 | Near Field Communication antenna | 5L |
| A2/168 | Telephone antenna changeover switch | 36K |
| A2/168 | Telephone antenna changeover switch | 60L |

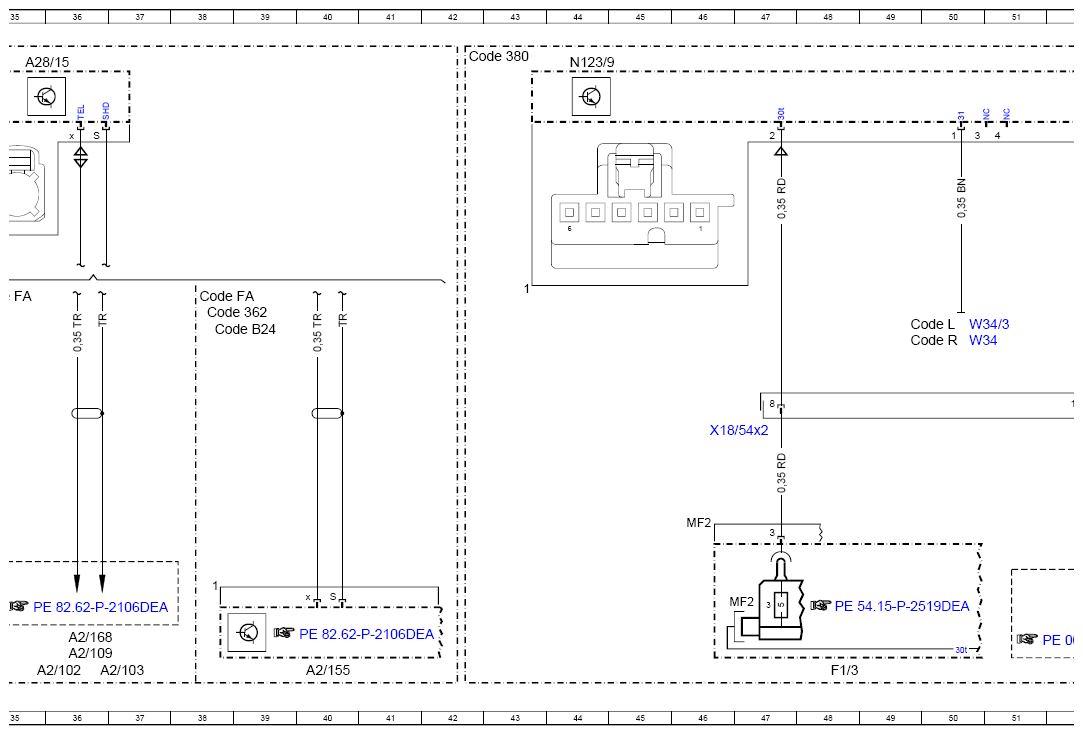

| A28/15 | Cellular telephone system antenna amplifier/compensator | 22A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 29A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 35A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 70A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 95A |
| CAN A | Telematics CAN | 17K |
| CAN A | Telematics CAN | 52K |
| Code 362 | HERMES LTE | 38E |
| Code 362 | HERMES LTE | 62F |
| Code 380 | Car telephony package | 42A |
| Code 896 | Vehicle access and drive authorization via mobile phone | 1A |
| Code 897 | Wireless mobile phone charging | 11D |
| Code 897 | Wireless mobile phone charging | 13D |
| Code 897 | Wireless mobile phone charging | 1B |
| Code 899 | Wireless phone charging at front and antenna | 1A |
| Code 899 | Wireless phone charging at front and antenna | 58F |
| Code 899 | Wireless phone charging at front and antenna | 62G |
| Code B24 | Remote control for stationary heater | 38E |
| Code B24 | Remote control for stationary heater | 55G |
| Code B24 | Remote control for stationary heater | 58G |
| Code B24 | Remote control for stationary heater | 62G |
| Code FA | CABRIOLET | 34E |
| Code FA | CABRIOLET | 38E |
| Code FA | CABRIOLET | 54F |
| Code FA | CABRIOLET | 58F |
| Code FA | CABRIOLET | 62F |
| Code FC | COUPE | 31E |
| Code FC | COUPE | 54F |
| Code L | LEFT-HAND DRIVE | 49E |
| Code R | RIGHT-HAND DRIVE | 49F |
| F1/3 | Passenger-side A-pillar fuse box | 13L |
| F1/3 | Passenger-side A-pillar fuse box | 48L |
| F1/3MF1 | Multiple fuse 1 | 12K |
| F1/3MF2 | Multiple fuse 2 | 47K |

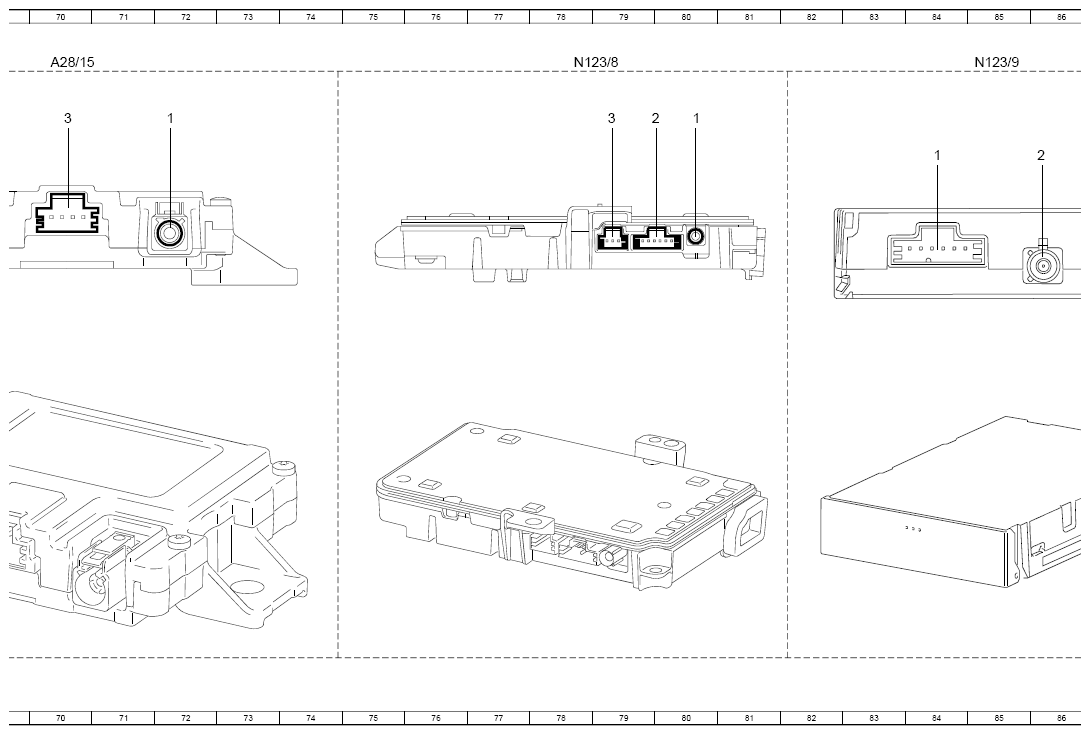

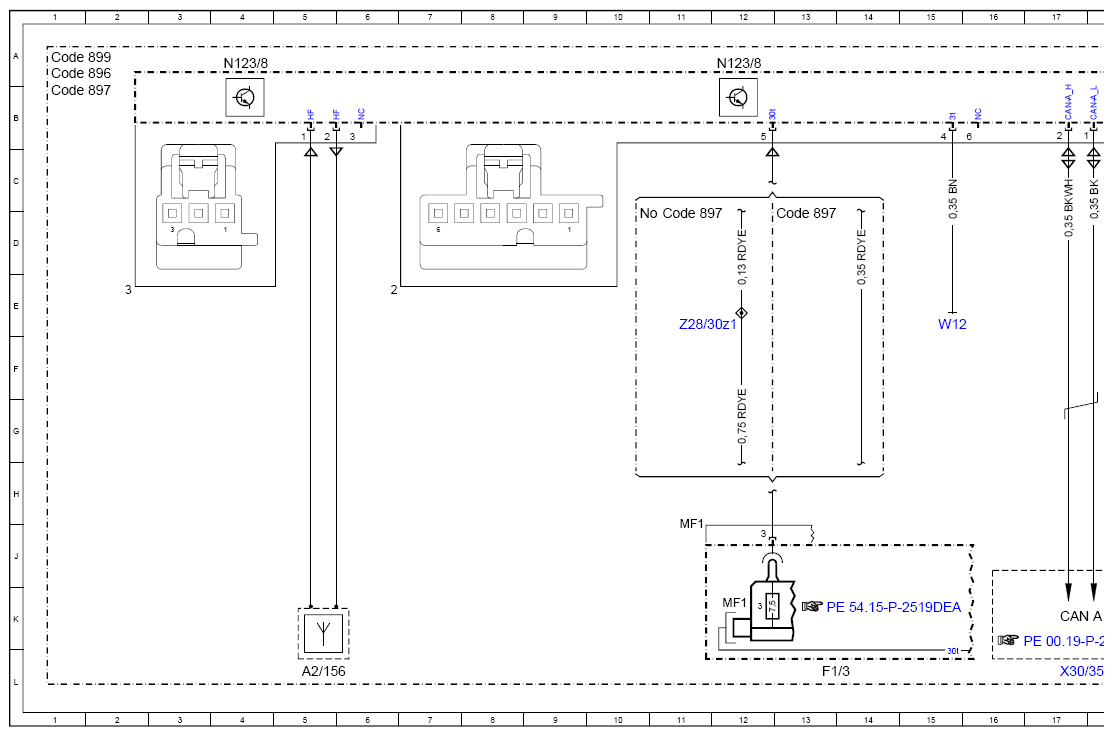

| N123/8 | Front mobile phone cradle control unit | 20A |
| N123/8 | Front mobile phone cradle control unit | 12A |
| N123/8 | Front mobile phone cradle control unit | 4A |
| N123/8 | Front mobile phone cradle control unit | 78A |
| N123/8 | Front mobile phone cradle control unit | 94A |

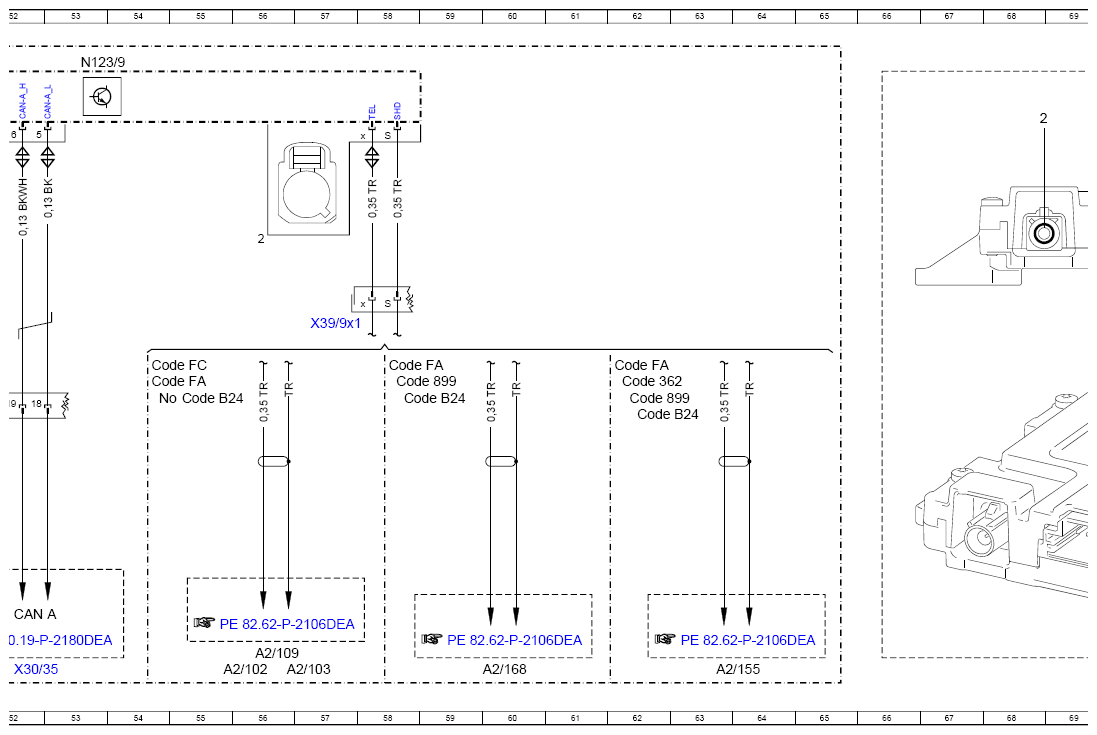

| N123/9 | Telephone control unit | 53A |
| N123/9 | Telephone control unit | 44A |
| N123/9 | Telephone control unit | 85A |
| N123/9 | Telephone control unit | 93A |
| W12 | Left center console ground point | 15E |
| W12 | Left center console ground point | 30E |
| W34 | Left footwell ground point | 50F |
| W34/3 | Right footwell ground point | 50E |
| X18/54x2 | Front passenger cockpit/interior wiring harness electrical connector 2 | 47G |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 17L |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 52L |
| X39/9x1 | Passenger-side cockpit/interior wiring harness electrical connector | 57E |
| Z28/30z1 | Telephone power supply connector sleeve | 11E |
| Z28/30z1 | Telephone power supply connector sleeve | 29E |
