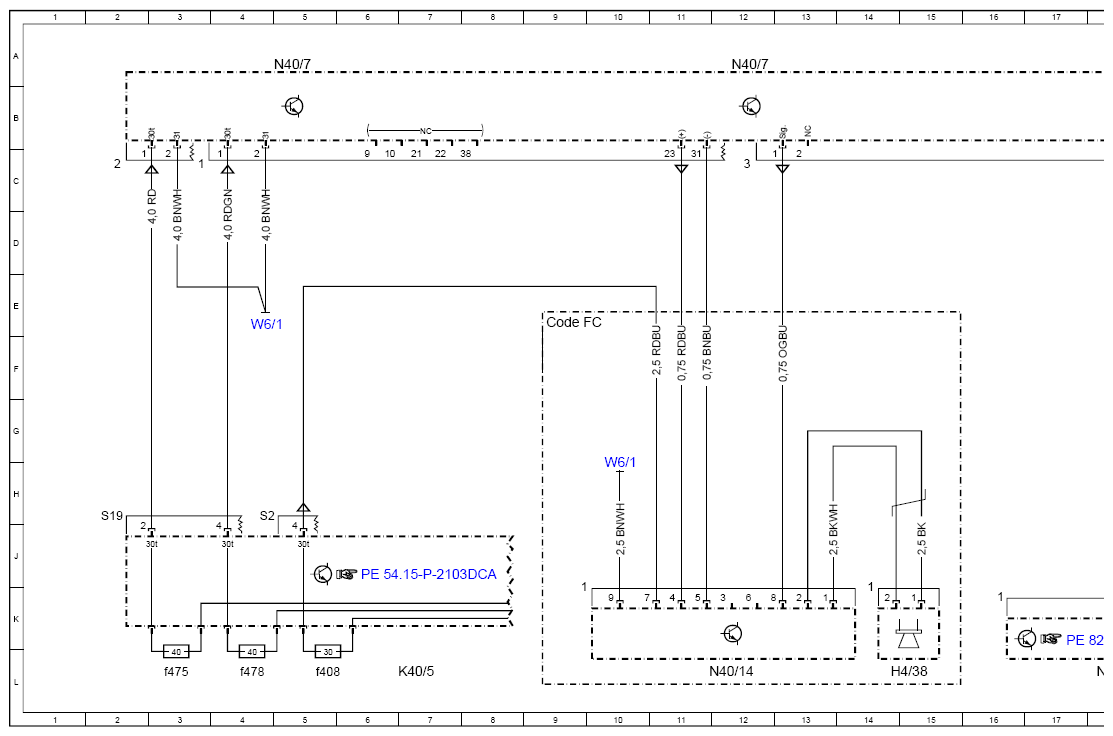

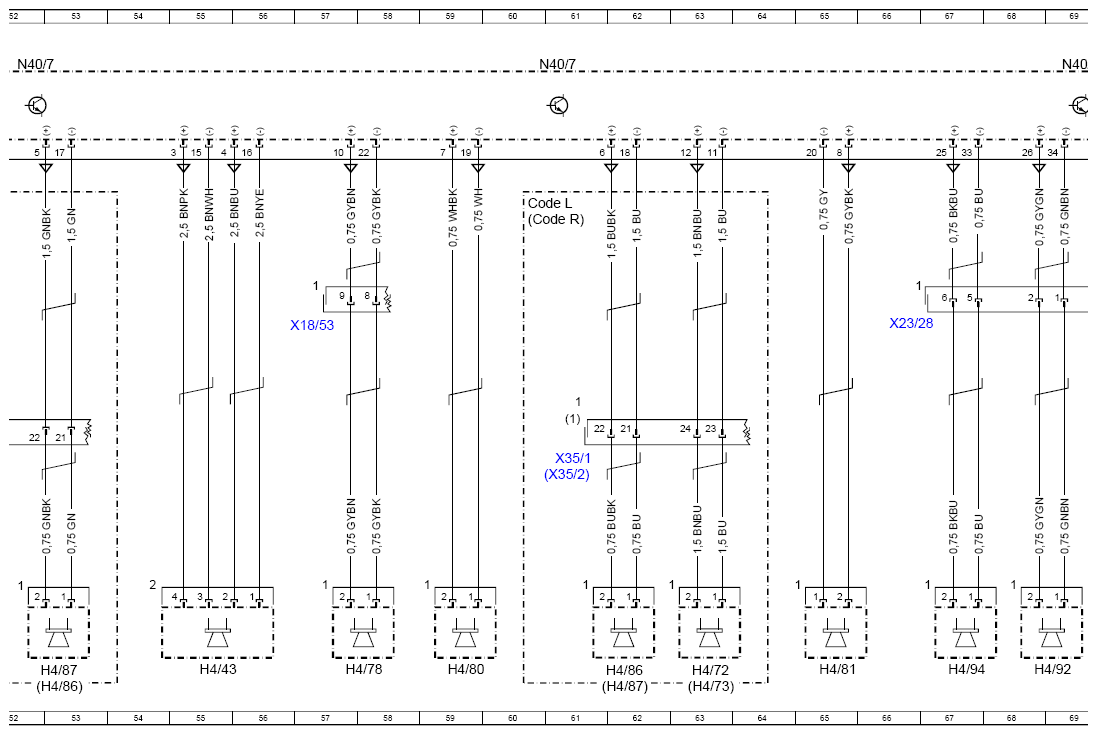

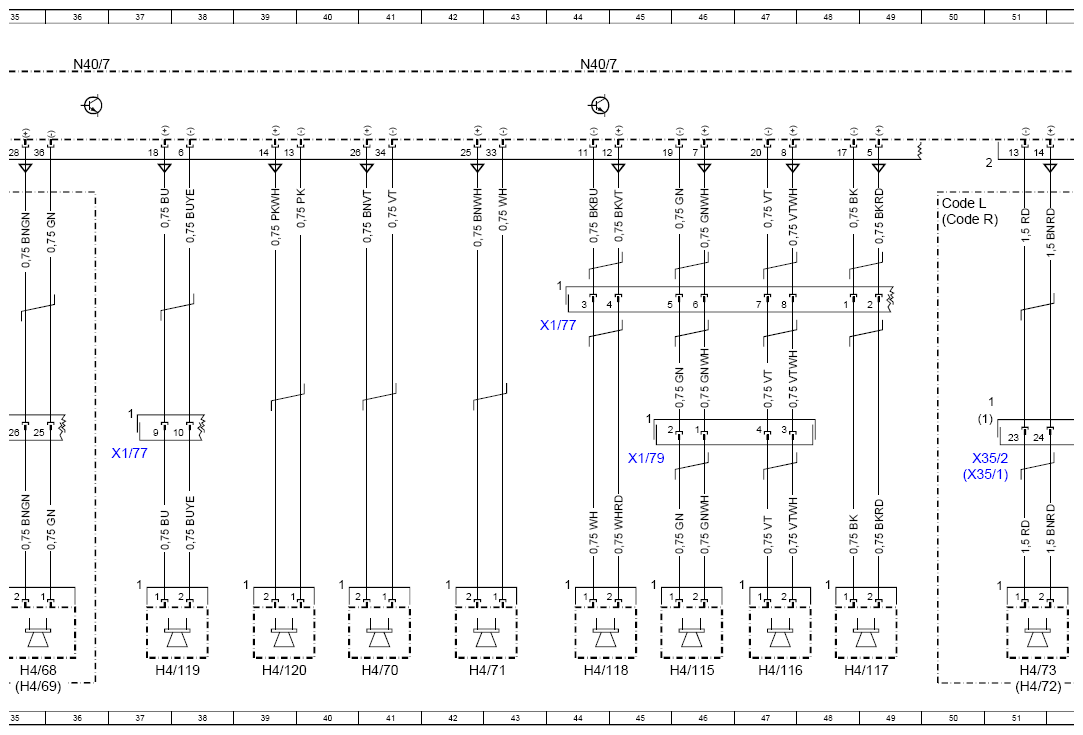

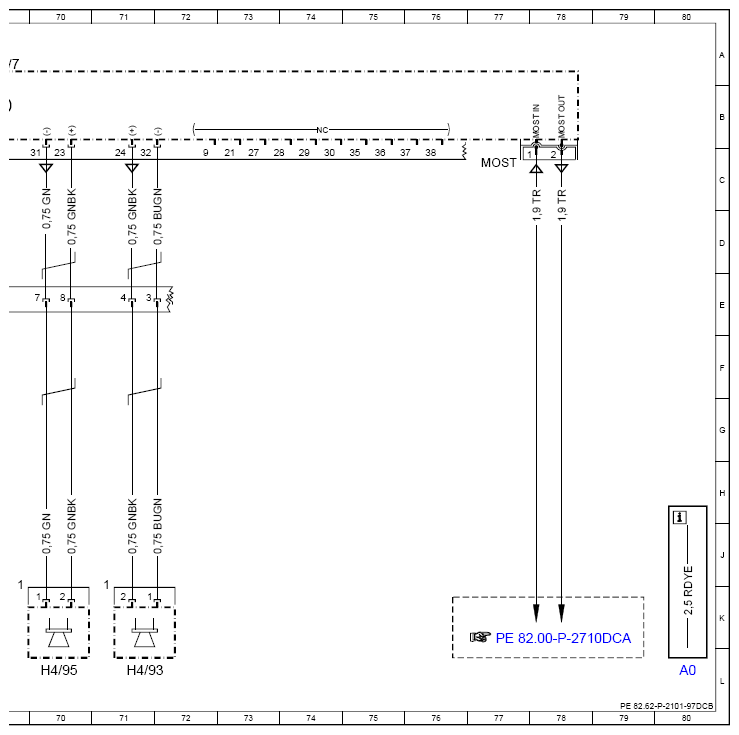

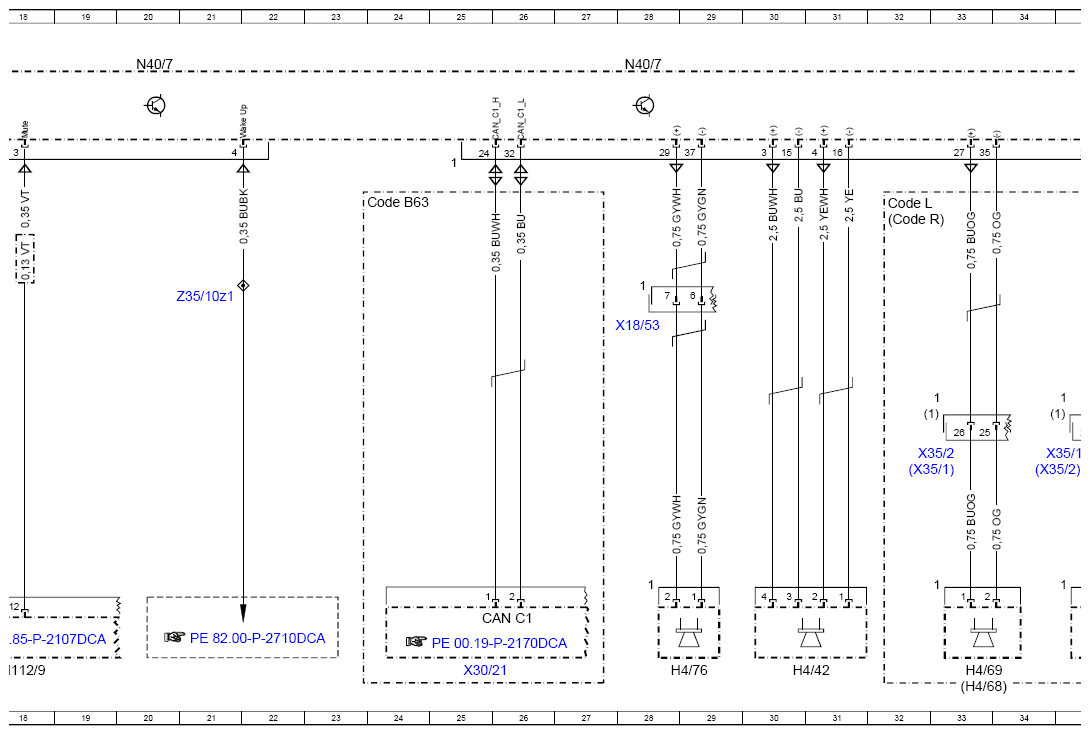

Sound Amplifier Control Unit Wiring Diagram - PE82.62-P-2101-97DCB
Model 238 up to model year 2021 with code 811 (High-End sound system) Control unit N40/7
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| CAN C1 | Drive train CAN | 26K |
| Code 811 | Advanced sound system | - |
| Code B63 | Sporty engine sound | 23C |
| Code FC | COUPE | 9E |
| Code L | LEFT-HAND DRIVE | 60C |
| Code L | LEFT-HAND DRIVE | 32C |
| Code L | LEFT-HAND DRIVE | 50C |
| Code R | RIGHT-HAND DRIVE | 60D |
| Code R | RIGHT-HAND DRIVE | 32D |
| Code R | RIGHT-HAND DRIVE | 50D |
| H4/115 | Left front center overhead control panel midrange speaker (3D sound) | 46L |
| H4/116 | Right front center overhead control panel midrange speaker (3D sound) | 47L |
| H4/117 | Left center rear center midrange speaker (3D sound) | 48L |
| H4/118 | Right center rear center midrange speaker (3D sound) | 44L |
| H4/119 | Left center midrange speaker (3D sound) | 37L |
| H4/120 | Right center midrange speaker (3D sound) | 39L |
| H4/38 | Rear woofer | 15L |
| H4/42 | Left front footwell woofer | 30L |
| H4/43 | Right front footwell woofer | 55L |
| H4/68 | Left front door sound system tweeter | 33L |
| H4/68 | Left front door sound system tweeter | 35L |
| H4/69 | Right front door sound system tweeter | 33L |
| H4/69 | Right front door sound system tweeter | 35L |
| H4/70 | Left side paneling sound system tweeter | 41L |
| H4/71 | Right side paneling sound system tweeter | 42L |
| H4/72 | Left front door sound system woofer/midrange speaker | 51L |
| H4/72 | Left front door sound system woofer/midrange speaker | 63L |
| H4/73 | Right front door sound system woofer/midrange speaker | 51L |
| H4/73 | Right front door sound system woofer/midrange speaker | 63L |
| H4/76 | Center instrument panel tweeter | 29L |
| H4/78 | Center instrument panel midrange speaker | 57L |
| H4/80 | Left side paneling sound system midrange speaker | 59L |
| H4/81 | Right side paneling sound system midrange speaker | 65L |
| H4/86 | Left front door midrange speaker | 53L |
| H4/86 | Left front door midrange speaker | 62L |
| H4/87 | Right front door midrange speaker | 53L |
| H4/87 | Right front door midrange speaker | 62L |
| H4/92 | Left rear shelf surround sound system tweeter | 68L |
| H4/93 | Left rear shelf surround sound system midrange speaker | 71L |
| H4/94 | Right rear shelf surround sound system tweeter | 67L |
| H4/95 | Right rear shelf surround sound system midrange speaker | 70L |
| K40/5 | Rear fuse and relay module | 7L |
| K40/5f408 | Fuse 408 | 5L |
| K40/5f475 | Fuse 475 | 3L |
| K40/5f478 | Fuse 478 | 4L |
| MOST | Media Oriented System Transport | 77C |
| N112/9 | HERMES control unit | 18L |
| N40/14 | Rear woofer amplifier | 12L |
| N40/7 | Advanced sound system amplifier control unit | 12A |
| N40/7 | Advanced sound system amplifier control unit | 5A |
| N40/7 | Advanced sound system amplifier control unit | 20A |
| N40/7 | Advanced sound system amplifier control unit | 44A |
| N40/7 | Advanced sound system amplifier control unit | 52A |
| N40/7 | Advanced sound system amplifier control unit | 69A |
| N40/7 | Advanced sound system amplifier control unit | 28A |
| N40/7 | Advanced sound system amplifier control unit | 36A |
| N40/7 | Advanced sound system amplifier control unit | 61A |
| W6/1 | Left taillamp trunk ground point | 4E |
| W6/1 | Left taillamp trunk ground point | 10H |
| X1/77 | Left midrange speaker electrical connector | 44E |
| X1/77 | Left midrange speaker electrical connector | 37G |
| X1/79 | Midrange speaker/ eyeglasses compartment electrical connector | 45H |
| X18/53 | Driver-side cockpit/frame floor assembly electrical connector | 57E |
| X18/53 | Driver-side cockpit/frame floor assembly electrical connector | 28E |
| X23/28 | Rear shelf surround sound system electrical connector | 66E |
| X30/21 | Drive train CAN (CAN CD potential distributor electrical connector | 25L |
| X35/1 | Driver door electrical connector | 32H |
| X35/1 | Driver door electrical connector | 35G |
| X35/1 | Driver door electrical connector | 50H |
| X35/1 | Driver door electrical connector | 61H |
| X35/2 | Front passenger door electrical connector | 33G |
| X35/2 | Front passenger door electrical connector | 35H |
| X35/2 | Front passenger door electrical connector | 51H |
| X35/2 | Front passenger door electrical connector | 61H |
| Z35/10z1 | MOST wake-up signal connector sleeve | 21E |
