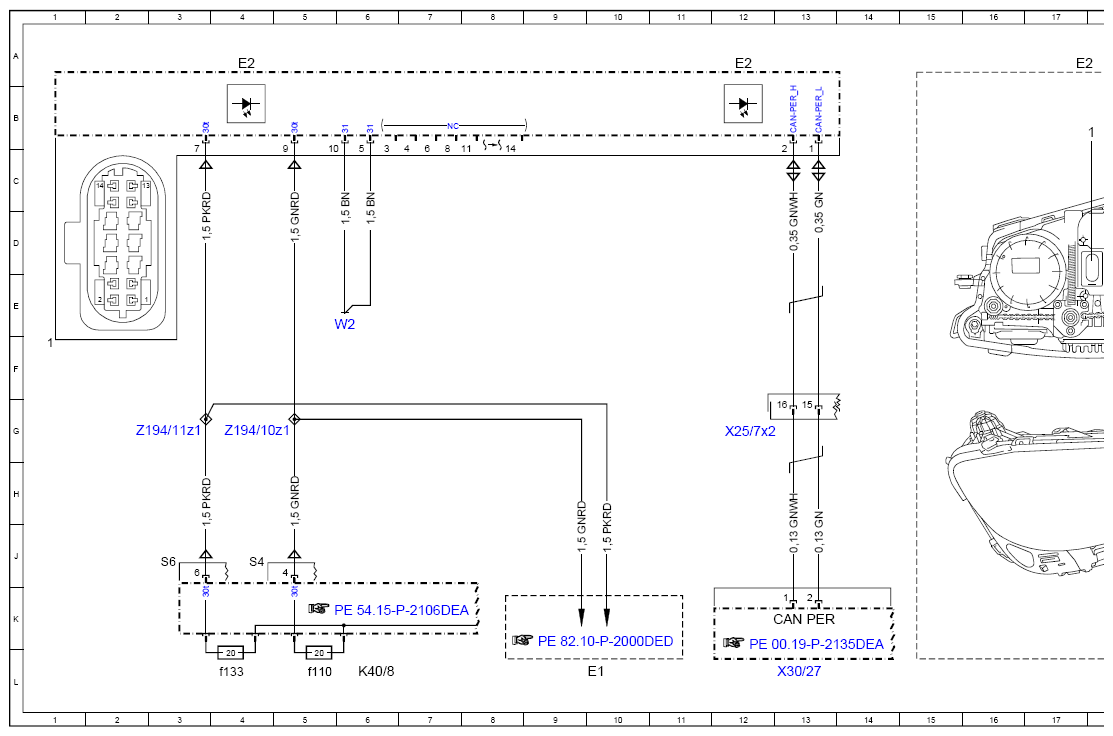

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97DEE
Model 238 as of model year 2021 with code 641 (Dynamic LED headlamps, left-hand traffic) with code 642 (Dynamic LED headlamps, right-hand traffic) except code 631 (Static LED headlamps, left-hand traffic) except code 632 (Headlamps, LED, static, right-side traffic) Headlamp unit E2
| Code: | Designation: | Position: |
|---|---|---|

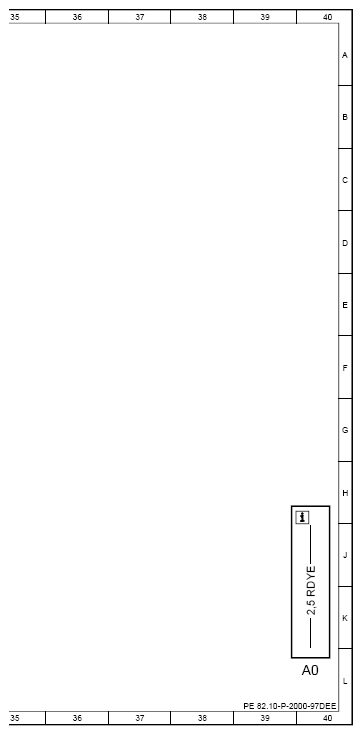

| A0 | Use of wiring diagrams | 40L |
| CAN PER | Peripherals CAN | 13K |
| E1 | Left front lamp unit | 10L |

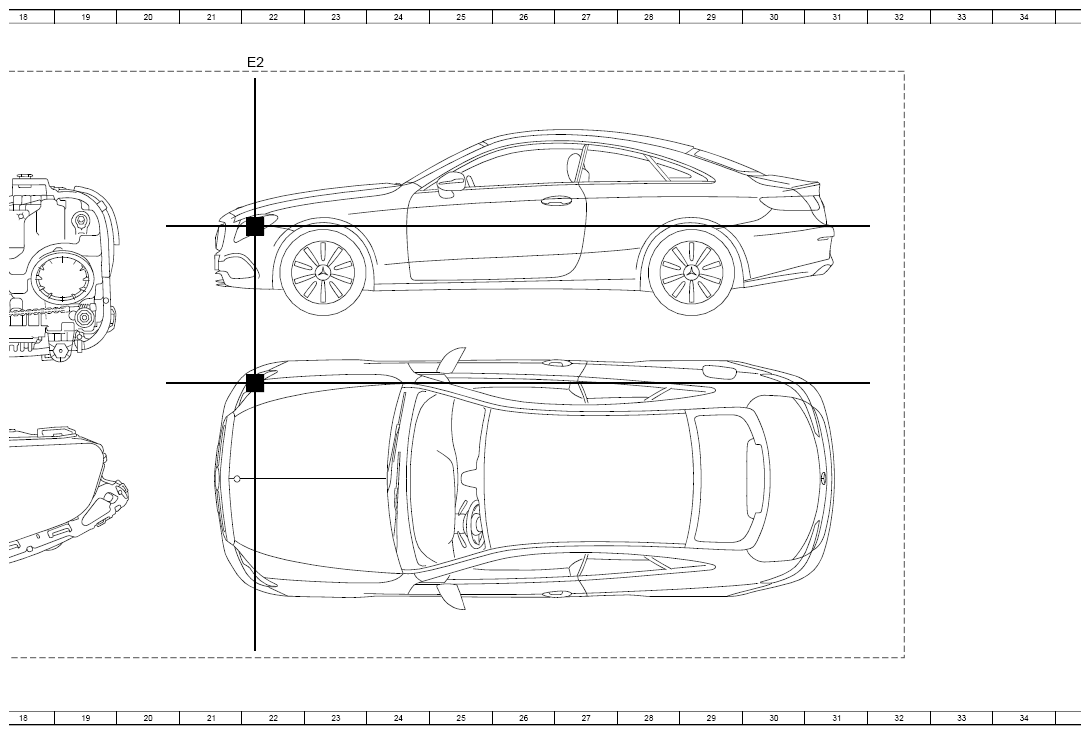

| E2 | Right front lamp unit | 4A |
| E2 | Right front lamp unit | 12A |
| E2 | Right front lamp unit | 17A |
| E2 | Right front lamp unit | 22A |
| K40/8 | Engine fuse and relay module | 6L |
| K40/8f110 | Fuse 110 | 5L |
| K40/8f133 | Fuse 133 | 4L |
| W2 | Right front ground point (at lamp unit) | 6E |
| X25/7x2 | Engine compartment/interior wiring harness electrical connector | 12G |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 13L |
| Z194/10z1 | Terminal 30_A connector sleeve, front lamp unit | 4G |
| Z194/11z1 | Terminal 30_B connector sleeve, front lamp unit | 3G |
