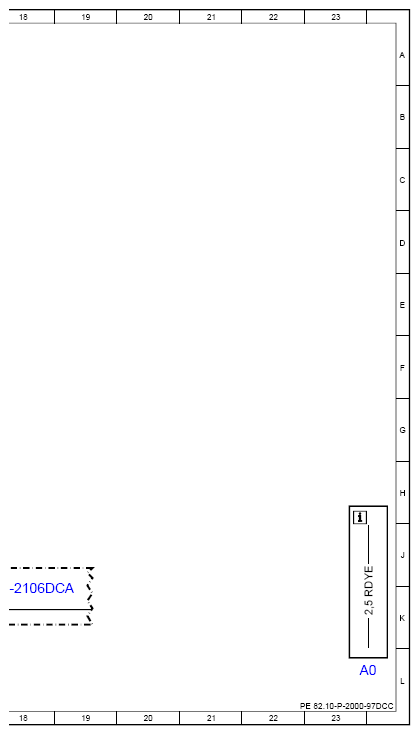

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97DCC

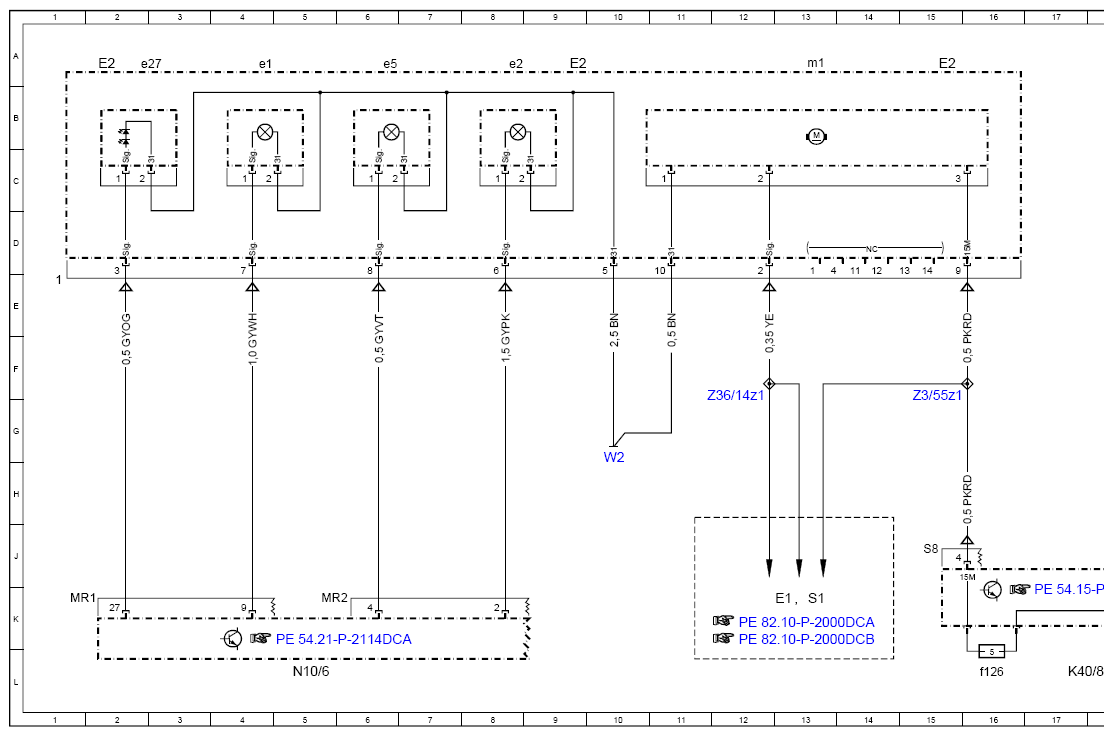

Model 238 up to model year 2021 Lamp unit E2, halogen version
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| E1 | Left front lamp unit | 13K |
| E2 | Right front lamp unit | 2A |
| E2 | Right front lamp unit | 9A |
| E2 | Right front lamp unit | 15A |
| E2e1 | Right high beam | 4A |
| E2e2 | Right low beam | 8A |
| E2e27 | Right position light and daytime running light | 2A |
| E2e5 | Right front turn signal lamp | 6A |
| E2m1 | Right headlamp range adjustment actuator motor | 13A |
| K40/8 | Engine fuse and relay module | 17L |
| K40/8f126 | Fuse 126 | 16L |
| N10/6 | Front SAM control unit | 5L |
| S1 | Exterior lights switch | 13K |
| W2 | Right front ground point (at lamp unit) | 10H |
| Z3/55z1 | Tml. 15 connector sleeve | 15G |
| Z36/14z1 | Headlamp range adjustment signal connector sleeve | 12G |
