Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97DCA

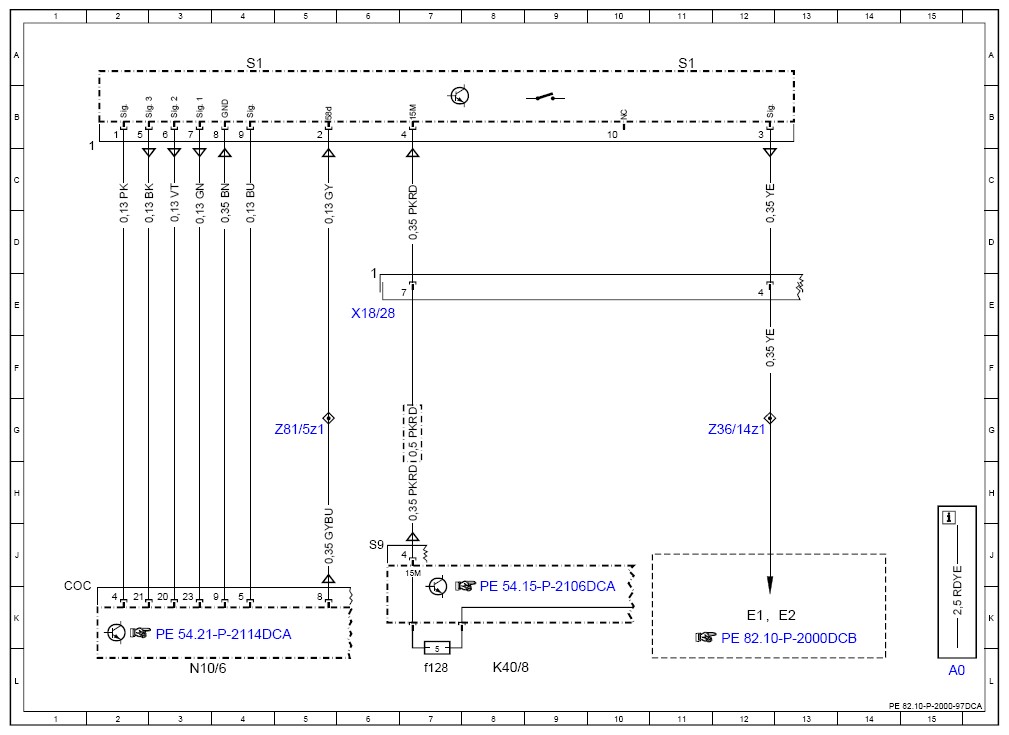

Model 238 up to model year 2021 Exterior lights switchS1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| E1 | Left front lamp unit | 12K |
| E2 | Right front lamp unit | 13K |
| K40/8 | Engine fuse and relay module | 8L |
| K40/8f 128 | Fuse 128 | 7L |
| N10/6 | Front SAM control unit | 3L |
| S1 | Exterior lights switch | 4A |
| S1 | Exterior lights switch | 11A |
| X18/28 | Left cockpit/engine compartment electrical connector | 6E |
| Z36/14z1 | Headlamp range adjustment signal connector sleeve | 12G |
| Z81/5z1 | Cockpit terminal 58d connector sleeve | 5G |
