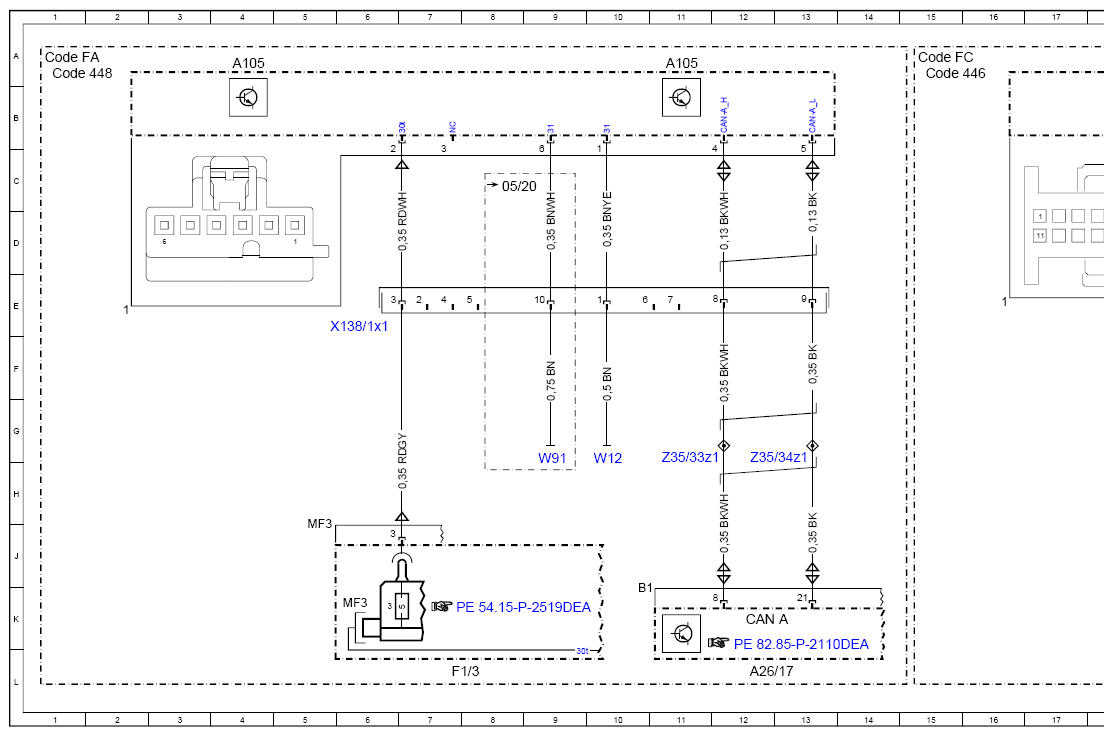

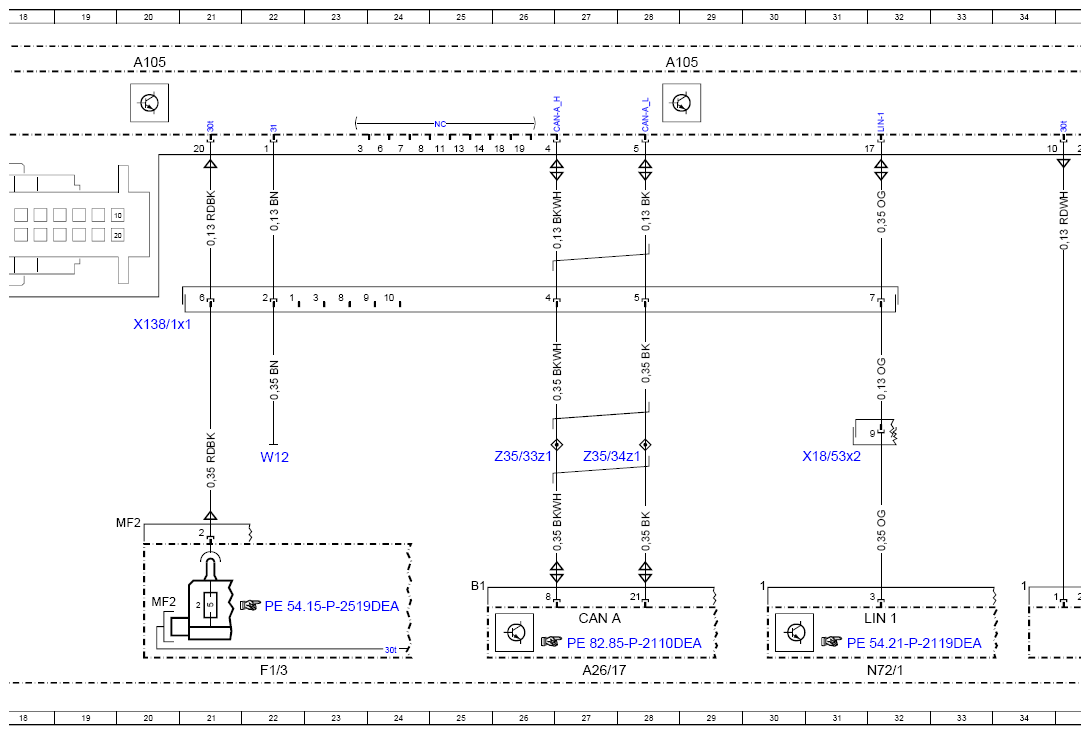

Wiring Diagram For Touchpad - PE82.00-P-2061-97DEA
Model 238 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|

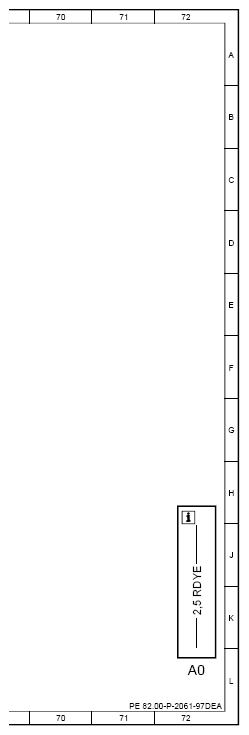

| A0 | Use of wiring diagrams | 72L |
| A105 | Touchpad | 4A |
| A105 | Touchpad | 11A |
| A105 | Touchpad | 20A |
| A105 | Touchpad | 28A |
| A105 | Touchpad | 36A |
| A105 | Touchpad | 44A |
| A105 | Touchpad | 52A |

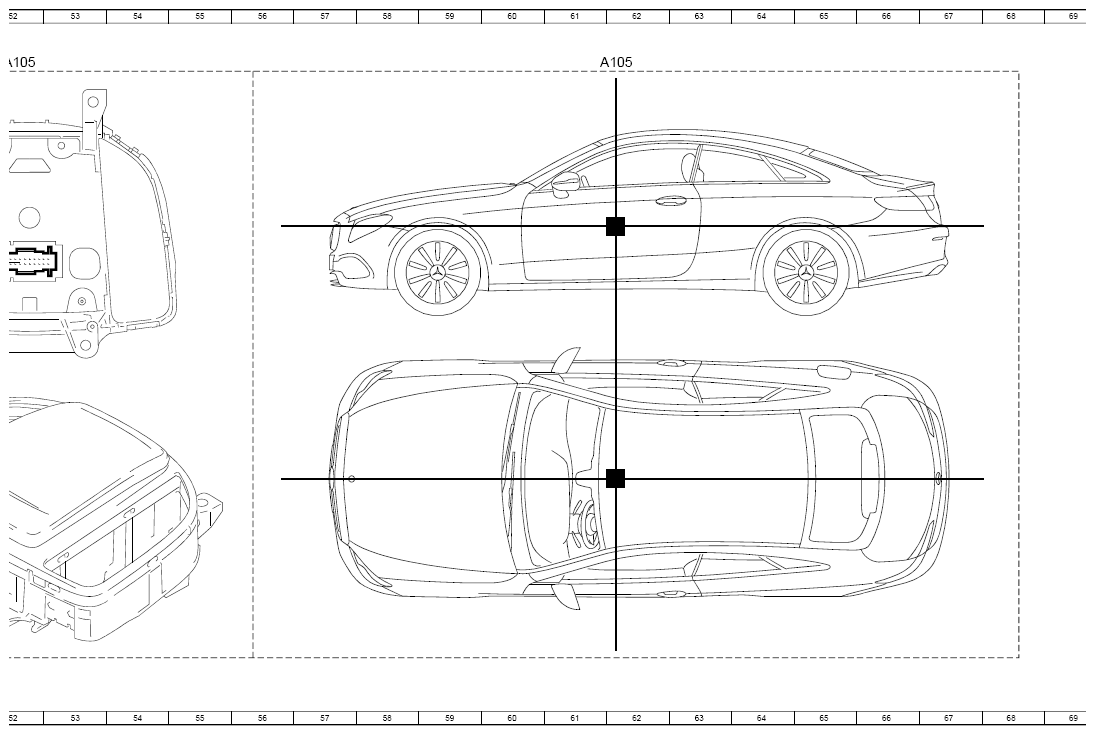

| A105 | Touchpad | 62A |
| A26/17 | Head unit | 12L |
| A26/17 | Head unit | 27L |
| CAN A | Telematics CAN | 12K |
| CAN A | Telematics CAN | 27K |
| Code 446 | Touchpad only | 15A |
| Code 446 | Touchpad only | 49B |
| Code 448 | Touchpad | 1A |
| Code 448 | Touchpad | 41B |
| Code FA | CABRIOLET | 1A |
| Code FC | COUPE | 15A |
| F1/3 | Passenger-side A-pillar fuse box | 7L |
| F1/3 | Passenger-side A-pillar fuse box | 22L |
| F1/3MF2 | Multiple fuse 2 | 20K |
| F1/3MF3 | Multiple fuse 3 | 6K |
| LIN 1 | Instrument panel LIN | 32K |
| N72/1 | Upper control panel control unit | 32L |

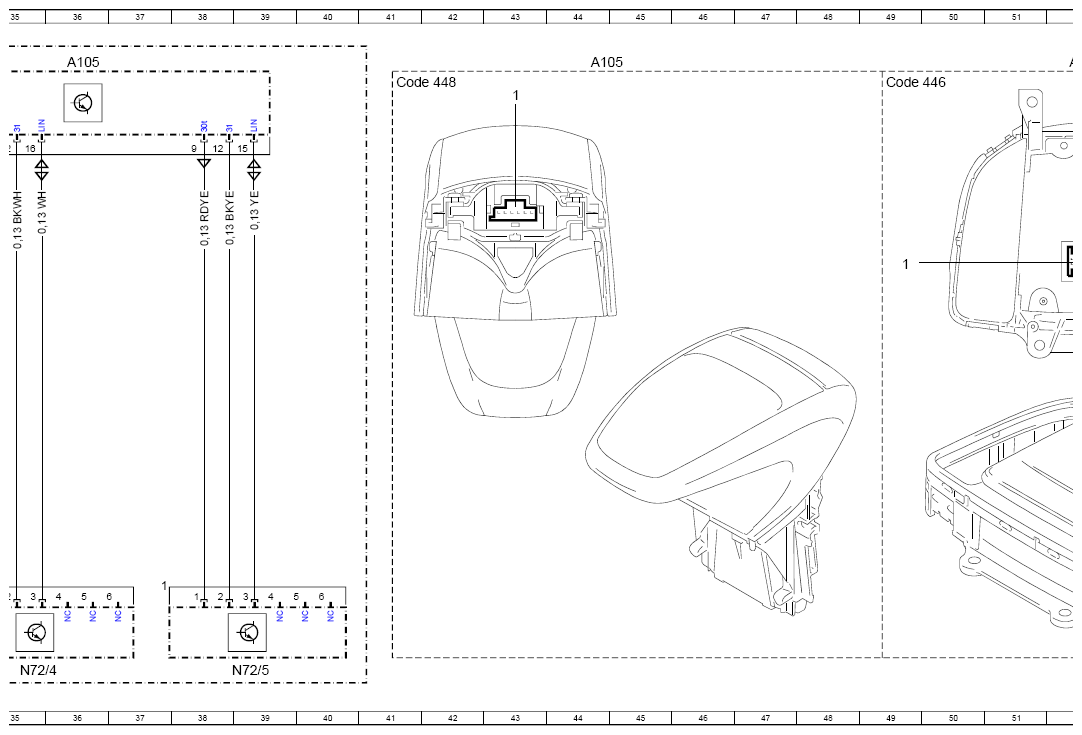

| N72/4 | Left lower control panel | 35L |
| N72/5 | Right lower control panel | 39L |
| W12 | Left center console ground point | 10H |
| W12 | Left center console ground point | 22H |
| W91 | Electromagnetic compatibility ground point (touchpad) | 9H |
| X138/1x1 | Front center console electrical connector 1 | 6E |
| X138/1x1 | Front center console electrical connector 1 | 20E |
| X18/53x2 | Driver cockpit/interior wiring harness electrical connector 2 | 31H |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 11G |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 26G |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 13G |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 27G |
