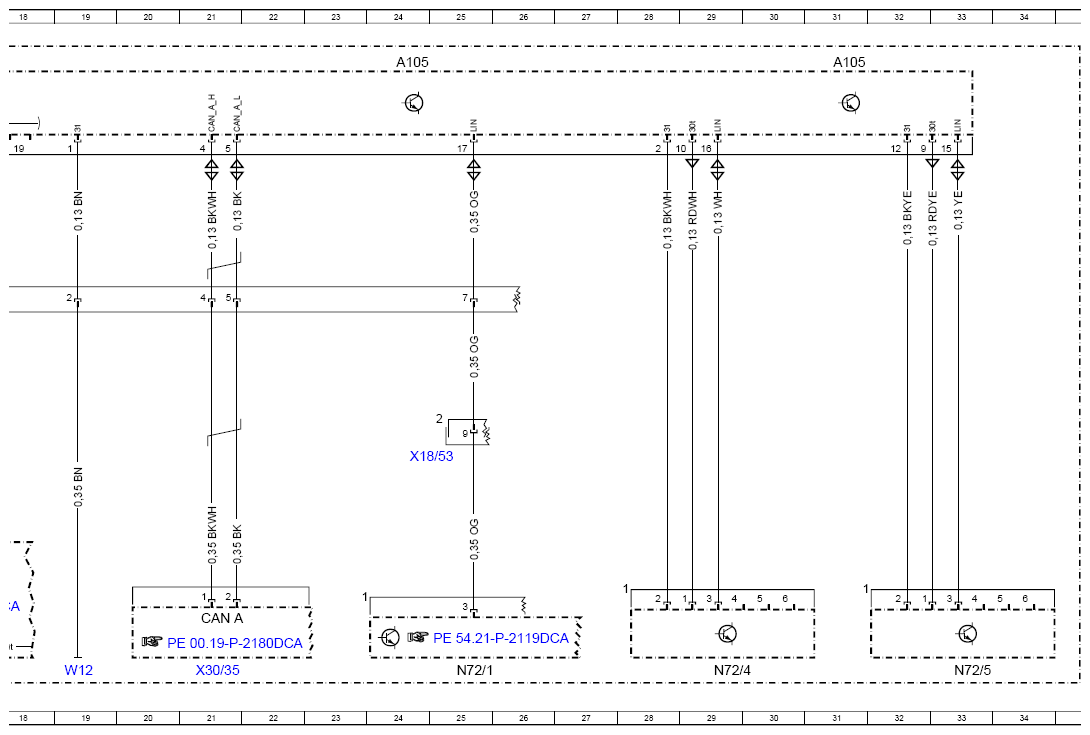

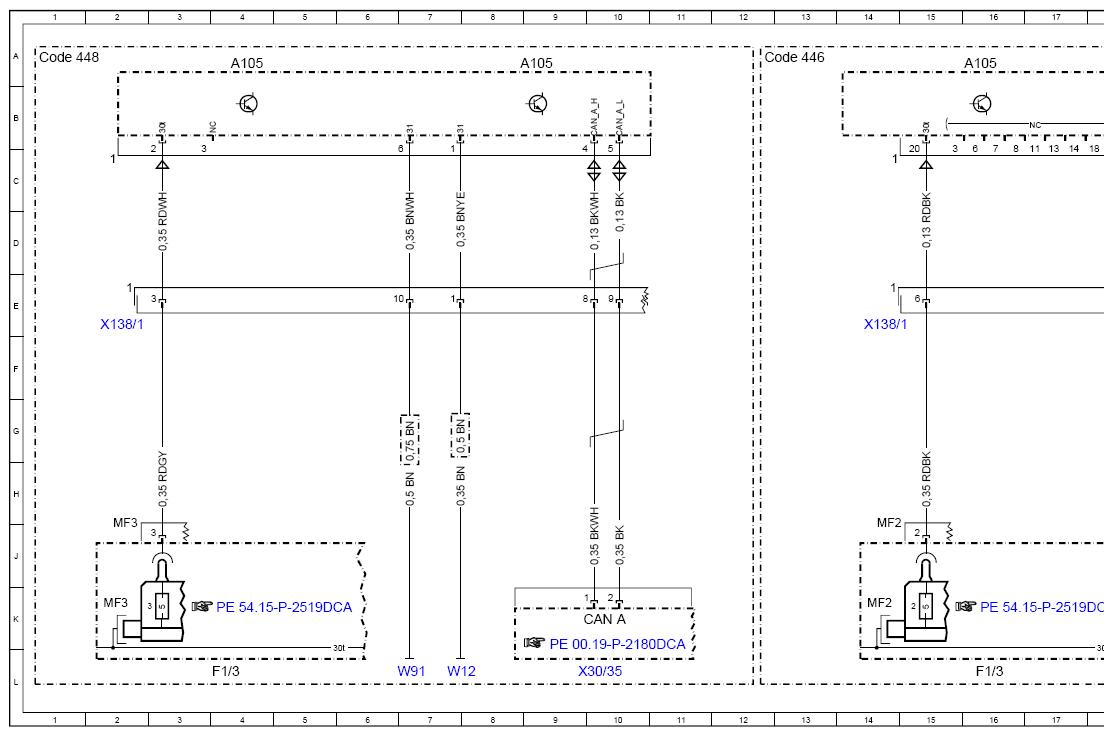

Wiring Diagram For Touchpad - PE82.00-P-2061-97DCA
Model 238 up to model year 2021 with code 446 (Touchpad only) TouchpadA105
Model 238 up to model year 2021 with code 448 (Touchpad) TouchpadA105
| Code: | Designation: | Position: |
|---|---|---|

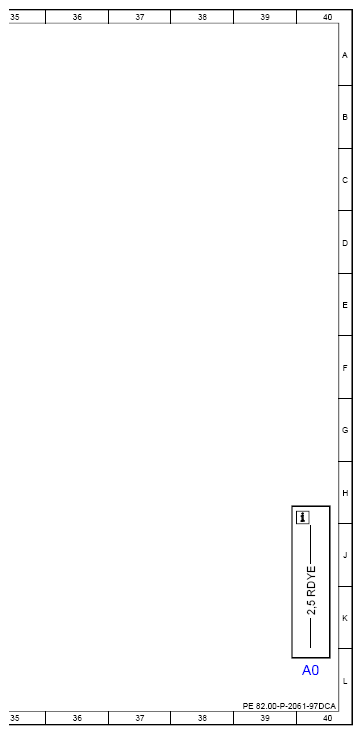

| A0 | Use of wiring diagrams | 40L |
| A105 | Touchpad | 4A |
| A105 | Touchpad | 9A |
| A105 | Touchpad | 16A |
| A105 | Touchpad | 24A |
| A105 | Touchpad | 31A |
| CAN A | Telematics CAN | 10K |
| CAN A | Telematics CAN | 21K |
| Code 446 | Touchpad only | 12A |
| Code 446 | Touchpad only | - |
| Code 448 | Touchpad | 1A |
| Code 448 | Touchpad | - |
| F1/3 | Passenger-side A-pillar fuse box | 4L |
| F1/3 | Passenger-side A-pillar fuse box | 16L |
| F1/3MF2 | Multiple fuse 2 | 14K |
| F1/3MF3 | Multiple fuse 3 | 2K |
| N72/1 | Upper control panel control unit | 25L |
| N72/4 | Left lower control panel | 29L |
| N72/5 | Right lower control panel | 33L |
| W12 | Left center console ground point | 7L |
| W12 | Left center console ground point | 19L |
| W91 | Electromagnetic compatibility ground point (touchpad) | 7L |
| X138/1 | Front center console electrical connector | 2E |
| X138/1 | Front center console electrical connector | 14E |
| X18/53 | Driver-side cockpit/frame floor assembly electrical connector | 25H |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 10L |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 21L |
