Wiring Diagram For Engine Hood Contact Switch - PE82.00-P-2005-97DCA

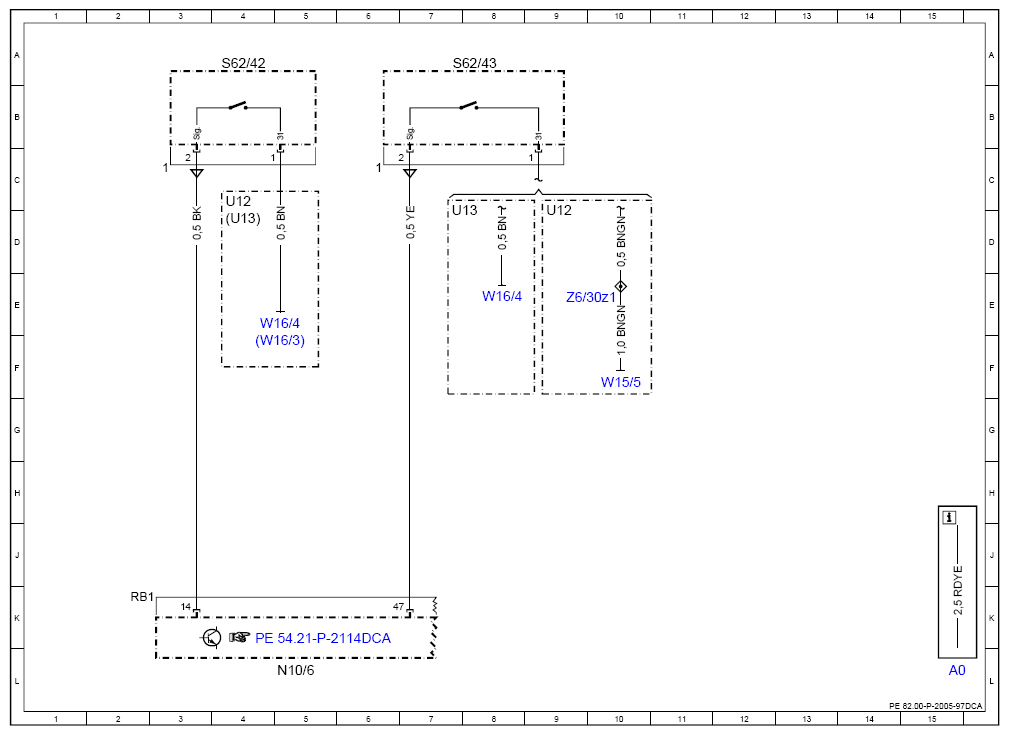

Model 238 up to model year 2021 Contact switches S62/42 and S62/43
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| N10/6 | Front SAM control unit | 5L |
| S62/42 | Right engine hood contact switch | 4A |
| S62/43 | Left engine hood contact switch | 8A |
| U12 | Valid for left-hand drive vehicles | 4C |
| U12 | Valid for left-hand drive vehicles | 9D |
| U13 | Valid for right-hand drive vehicles | 4D |
| U13 | Valid for right-hand drive vehicles | 7D |
| W15/5 | Left front footwell ground point | 10F |
| W16/3 | Left major assembly compartment ground point | 4F |
| W16/4 | Right major assembly compartment ground point | 4E |
| W16/4 | Right major assembly compartment ground point | 8E |
| Z6/30z1 | Circuit 31 connector sleeve | 10E |
