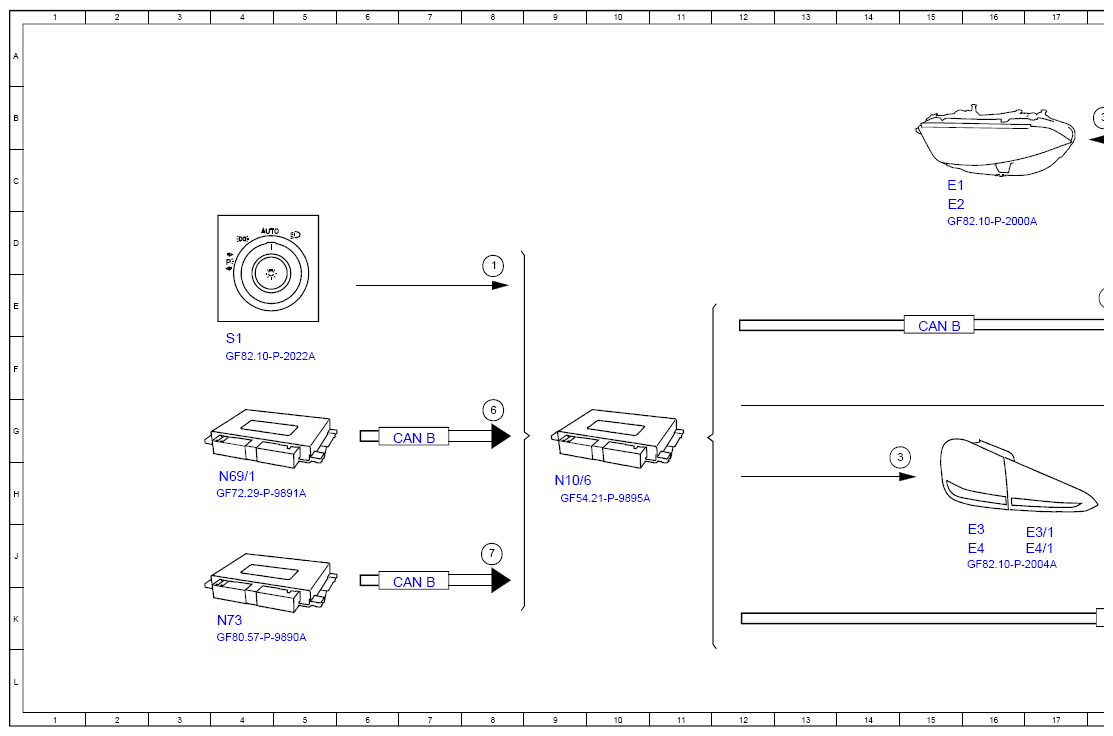

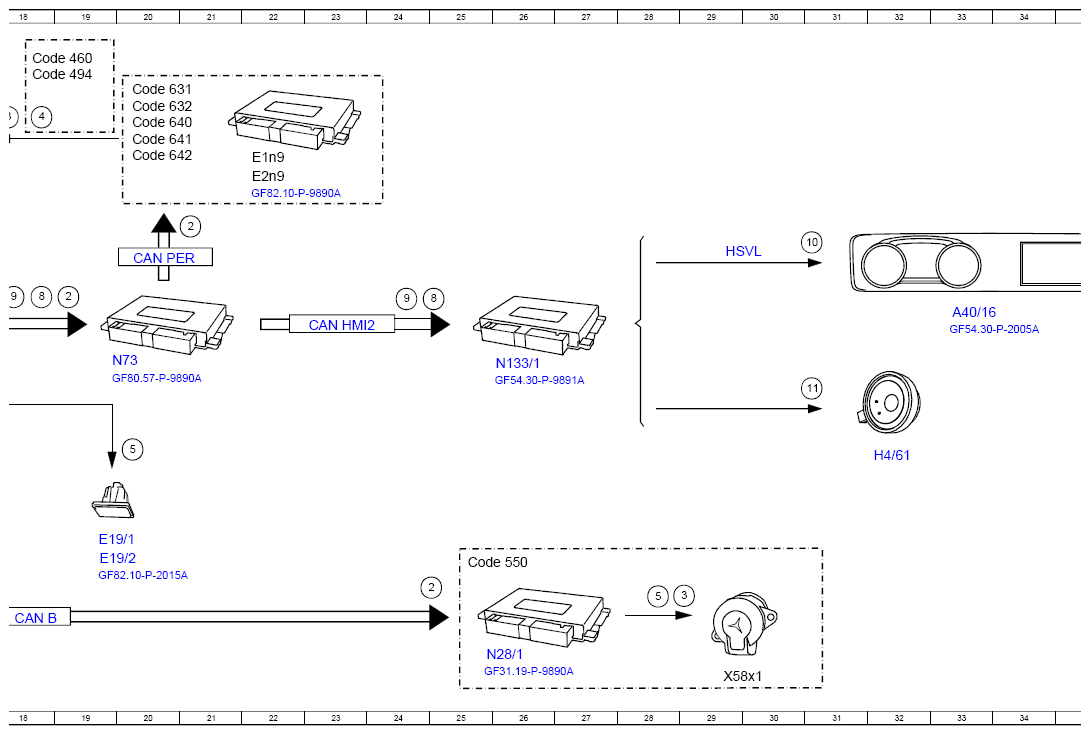

Function Schematic, Actuate Standing/Parking Lights - PE82.10-P-2503-97D
Model 213, 238, 257, 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Exterior light switch, status | 8D |
| 10 | image data, signal | 31D |
| 11 | Loudspeaker, control | 31F |
| 2 | Sidelights and parking lights, request | 19E |
| 2 | Sidelights and parking lights, request | 24K |
| 2 | Sidelights and parking lights, request | 21C |
| 3 | Parking light and parking light, control | 14G |
| 3 | Parking light and parking light, control | 18B |
| 3 | Parking light and parking light, control | 28K |
| 4 | Page marking light, control | 18B |
| 5 | License plate light, activation | 28K |
| 5 | License plate light, activation | 20G |
| 6 | Door rotary latch switch, status | 8G |
| 7 | terminal 15, status | 8J |
| 8 | Instrument cluster message, request | 19E |
| 8 | Combi instrument message, request | 25E |
| 9 | Warning tone, request | 18E |
| 9 | Warning tone, request | 24E |
| A40/16 | Display group head unit/instrument cluster | 33E |
| CAN B | Interior CAN | 7J |
| CAN B | Interior CAN | 18K |
| CAN B | Interior CAN | 7G |
| CAN B | Interior CAN | 15E |
| CAN HMI2 | User Interface-CAN 2 | 23E |
| CAN PER | Peripheral CAN | 20D |
| Code 460 | Canada version | 18A |
| Code 494 | USA version | 18A |
| Code 550 | Hitching device | 25Y |
| Code 631 | LED headlights, static, left-hand traffic | 20B |
| Code 632 | LED headlights, static, right-hand traffic | 20B |
| Code 640 | Headlights LED dynamic SAE right-hand traffic | 20B |
| Code 641 | Headlights LED dynamic left-hand traffic | 20B |
| Code 642 | Headlights LED dynamic right-hand traffic | 20C |
| E1 | Lamp unit, front left | 15C |
| E19/1 | Left license plate light | 19J |
| E19/2 | Right license plate light | 19J |
| E1n9 | Left headlight control unit | 22C |
| E2 | Lamp unit, front right | 15C |
| E2n9 | Right headlight control unit | 22C |
| E3 | Light unit rear left | 16J |
| E3/1 | Lamp unit inside rear left | 17J |
| E4 | Light unit, rear right | 16J |
| E4/1 | Lamp unit, rear right inside | 17J |
| H4/61 | Speaker cluster | 32G |
| HSVL | High Speed Video Link | 29D |
| N10/6 | Front SAM control unit | 9H |
| N133/1 | Instrument cluster control unit | 26F |
| N28/1 | Trailer detection control unit | 26L |
| N69/1 | Control unit front door left | 4H |
| N73 | Electronic ignition lock control unit | 4K |
| N73 | Electronic ignition lock control unit | 20F |
| S1 | Electronic ignition lock control unit | 4F |
| X58x1 | trailer socket | 29L |
