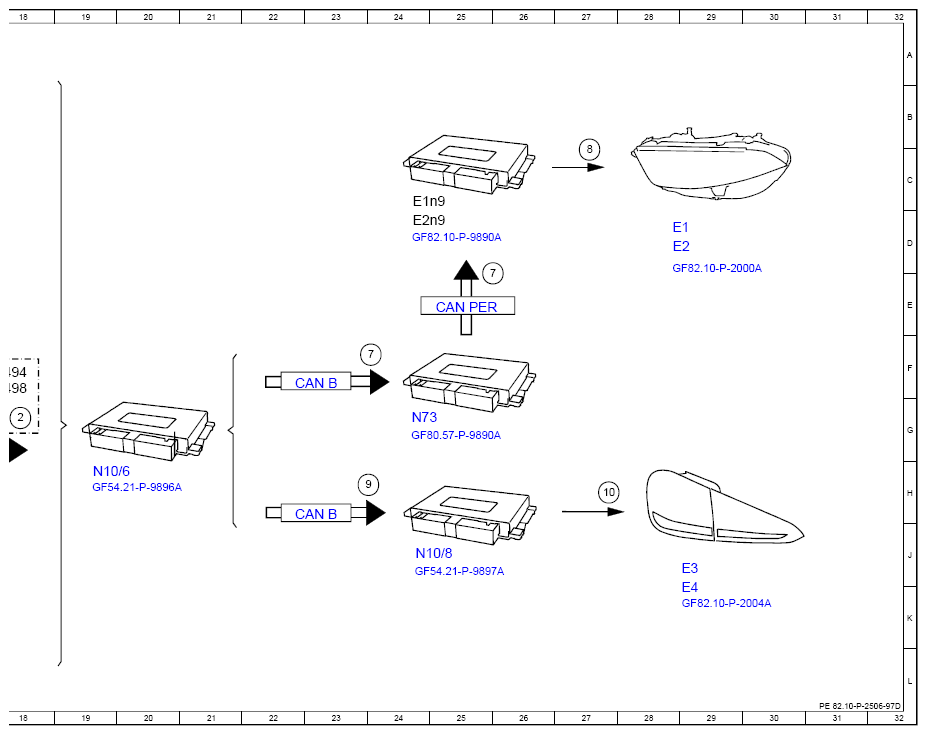

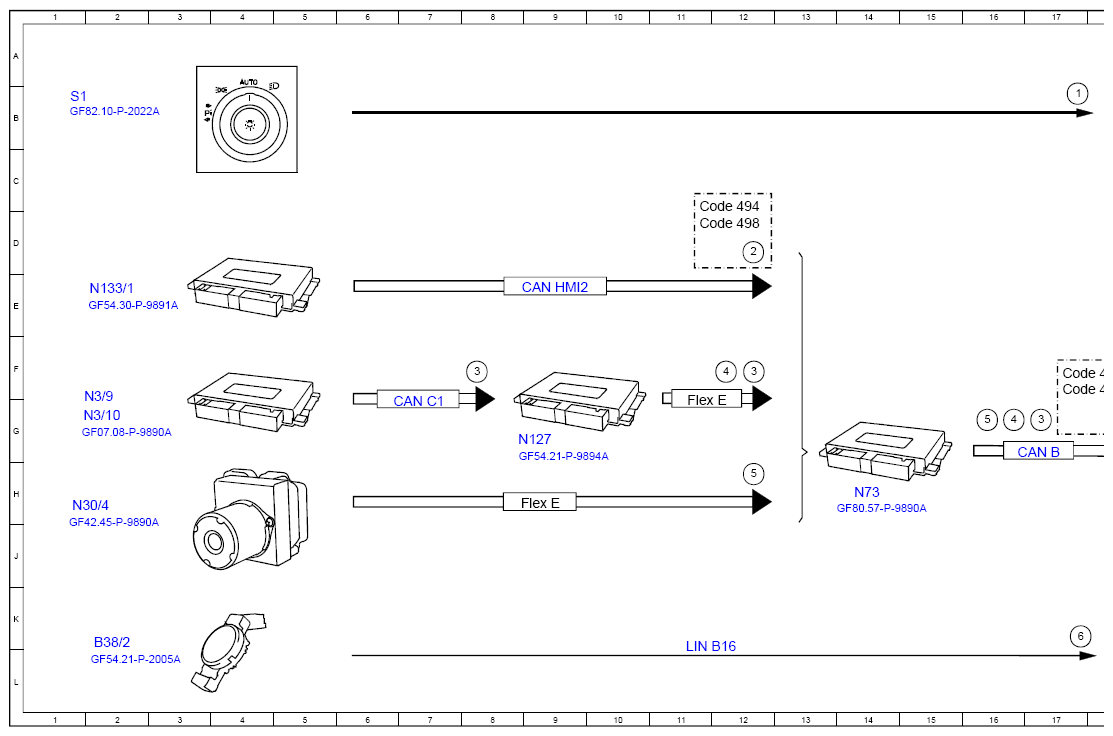

Function Schematic, Actuate Daytime Running Lights - PE82.10-P-2506-97D
Model 213, 238, 257, 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Exterior lighting switch, status | 17B |
| 10 | Parking light and parking light, control | 27H |
| 2 | Daytime running light function, status | 12D |
| 2 | Daytime running light function, status | 18G |
| 3 | Engine is running, signal | 12F |
| 3 | Engine is running, signal | 17G |
| 3 | Engine is running, signal | 8F |
| 4 | Powertrain ready signal | 12F |
| 4 | Powertrain ready signal | 16G |
| 5 | Vehicle speed signal | 16G |
| 5 | Vehicle speed signal | 12H |
| 6 | Twilight level, signal | 18K |
| 7 | Daytime running lights, request | 25E |
| 7 | Daytime running lights, request | 24F |
| 8 | Headlights, daytime running lights, activation | 27B |
| 9 | Sidelights and parking lights, request | 24H |
| B38/2 | Rain and light sensor with additional functions | 2K |
| CAN B | Interior CAN | 23F |
| CAN B | Interior CAN | 17G |
| CAN B | Interior CAN | 23H |
| CAN C1 | Drive CAN | 7G |
| CAN HMI2 | User Interface-CAN 2 | 9E |
| CAN PER | Peripheral CAN | 25E |
| Code 494 | USA version | 11C |
| Code 494 | USA version | 17F |
| Code 498 | Japan version | 11D |
| Code 498 | Japan version | 17F |
| E1 | Lamp unit, front left | 28D |
| E1n9 | Left headlight control unit | 24C |
| E2 | Lamp unit, front right | 28D |
| E2n9 | Right headlight control unit | 24D |
| E3 | Light unit rear left | 29J |
| E4 | Light unit, rear right | 29K |
| FlexE | Chassis FlexRay | 11G |
| FlexE | Chassis FlexRay | 9H |
| LIN B16 | Rain and Light Sensor LIN | 11L |
| N10/6 | Front SAM control unit | 19H |
| N10/8 | Rear SAM control unit | 24Y |
| N127 | Powertrain control unit | 9G |
| N133/1 | Instrument cluster control unit | 2E |
| N3/10 | ME control unit | 2G |
| N3/9 | CDI control unit | 2G |
| N30/4 | Control unit Electronic Stability program | 1H |
| N73 | Electronic ignition lock control unit | 14H |
| N73 | Electronic ignition lock control unit | 24G |
| S1 | Exterior lighting switch | 1B |
