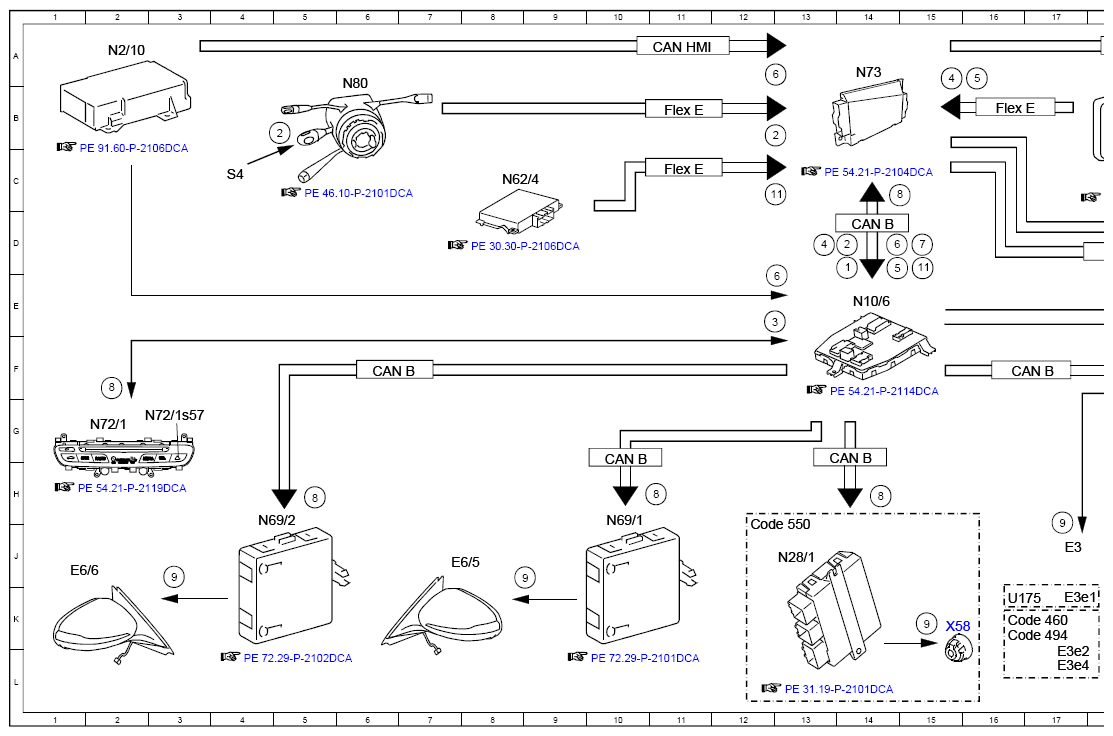

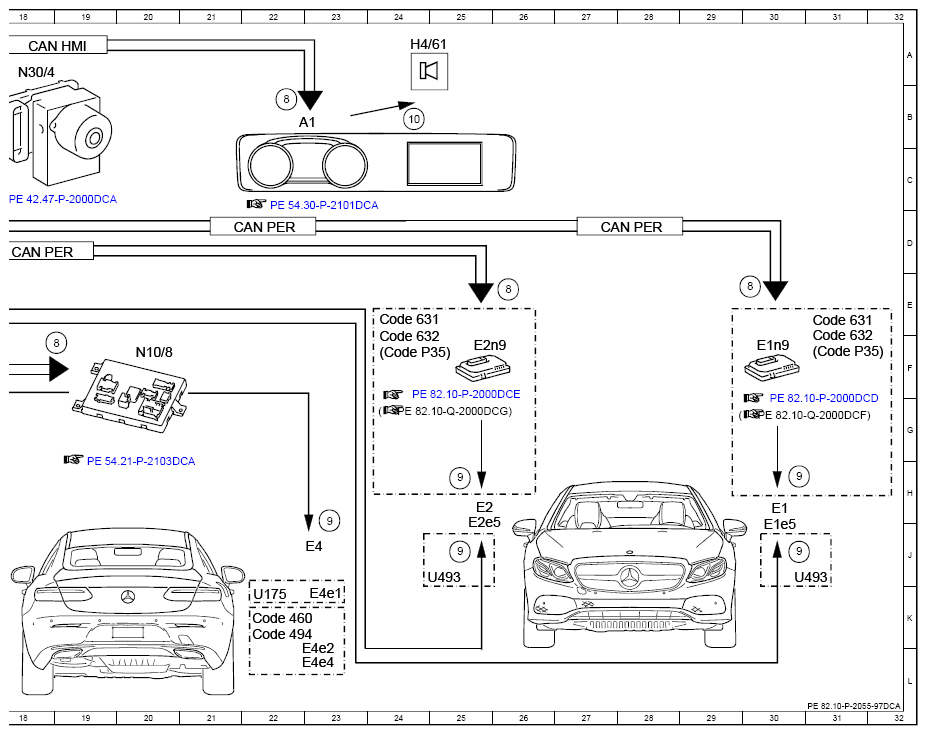

Electrical Function Schematic, Turn Signal Light Actuation - PE82.10-P-2055-97DCA
Model 238 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 14D |
| 10 | Speaker, actuation | 24B |
| 11 | Emergency stop, signal | 15D |
| 11 | Emergency stop, signal | 13C |
| 2 | Combination switch, status | 5B |
| 2 | Combination switch, status | 12B |
| 2 | Combination switch, status | 14D |
| 3 | Hazard warning system button, status | 12E |
| 4 | Emergency stop, signal | 13D |
| 4 | Emergency stop, signal | 15A |
| 5 | Vehicle speed, signal | 14D |
| 5 | Vehicle speed, signal | 16A |
| 6 | Crash, signal | 13E |
| 6 | Crash, signal | 15D |
| 6 | Crash, signal | 13A |
| 7 | Central locking, status | 15D |
| 8 | Flasher frequency, signal | 5H |
| 8 | Flasher frequency, signal | 11H |
| 8 | Flasher frequency, signal | 14H |
| 8 | Flasher frequency, signal | 14C |
| 8 | Flasher frequency, signal | 19F |
| 8 | Flasher frequency, signal | 26E |
| 8 | Flasher frequency, signal | 22B |
| 8 | Flasher frequency, signal | 30E |
| 8 | Flasher frequency, signal | 2F |
| 9 | Turn signal lamp, actuation | 3J |
| 9 | Turn signal lamp, actuation | 15K |
| 9 | Turn signal lamp, actuation | 8J |
| 9 | Turn signal lamp, actuation | 17J |
| 9 | Turn signal lamp, actuation | 23J |
| 9 | Turn signal lamp, actuation | 25J |
| 9 | Turn signal lamp, actuation | 30J |
| 9 | Turn signal lamp, actuation | 30H |
| 9 | Turn signal lamp, actuation | 25G |
| A1 | Instrument cluster | 22B |
| CAN B | Interior CAN | 16F |
| CAN B | Interior CAN | 6F |
| CAN B | Interior CAN | 10H |
| CAN B | Interior CAN | 14H |
| CAN B | Interior CAN | 14D |
| CAN HMI | User interface CAN | 11A |
| CAN HMI | User interface CAN | 18A |
| CAN PER | Peripherals CAN | 22D |
| CAN PER | Peripherals CAN | 18D |
| CAN PER | Peripherals CAN | 28D |
| Code 460 | Canada version | 16K |
| Code 460 | Canada version | 22K |
| Code 494 | USA version | 16K |
| Code 494 | USA version | 22K |
| Code 550 | Trailer hitch | 12J |
| Code 631 | Static LED headlamp, left-hand traffic | 24E |
| Code 631 | Static LED headlamp, left-hand traffic | 31E |
| Code 632 | Static LED headlamp, right-hand traffic | 24F |
| Code 632 | Static LED headlamp, right-hand traffic | 31F |
| Code P35 | LED light package | 24F |
| Code P35 | LED light package | 31F |
| E1 | Left front lamp unit | 30H |
| E1e5 | Left front turn signal lamp | 30J |
| E1n9 | Left headlamp control unit | 30F |
| E2 | Right front lamp unit | 25H |
| E2e5 | Right front turn signal lamp | 25J |
| E2n9 | Right headlamp control unit | 25F |
| E3 | Left rear lamp unit | 17J |
| E3e1 | Left rear turn signal lamp | 17K |
| E3e2 | Left taillamp and parking lamp | 17L |
| E3e4 | Left stop lamp | 17L |
| E4 | Right rear lamp unit | 23J |
| E4e1 | Right rear turn signal lamp | 23K |
| E4e2 | Right taillamp and parking lamp | 22L |
| E4e4 | Right stop lamp | 22L |
| E6/5 | Left outside mirror turn signal lamp | 7J |
| E6/6 | Right outside mirror turn signal lamp | 1J |
| Flex E | Chassis FlexRay | 16B |
| Flex E | Chassis FlexRay | 11C |
| Flex E | Chassis FlexRay | 11B |
| H4/61 | Instrument cluster speaker | 24A |
| N10/6 | Front SAM control unit | 14E |
| N10/8 | Rear SAM control unit | 20F |
| N2/10 | Supplemental restraint system control unit | 2A |
| N28/1 | Trailer recognition control unit | 13J |
| N30/4 | Electronic Stability Program control unit | 18A |
| N62/4 | Intelligent Drive control unit | 8C |
| N69/1 | Left front door control unit | 10J |
| N69/2 | Right front door control unit | 4J |
| N72/1 | Upper control panel control unit | 2G |
| N72/1s57 | Hazard warning system button | 2G |
| N73 | Electronic ignition switch control unit | 14A |
| N80 | Steering column module control unit | 6B |
| S4 | Combination switch | 4C |
| U175 | Not valid for USA and Canada | 16K |
| U175 | Not valid for USA and Canada | 22K |
| U493 | Valid for halogen lamp unit | 24J |
| U493 | Valid for halogen lamp unit | 30J |
| X58 | Trailer socket | 15K |
