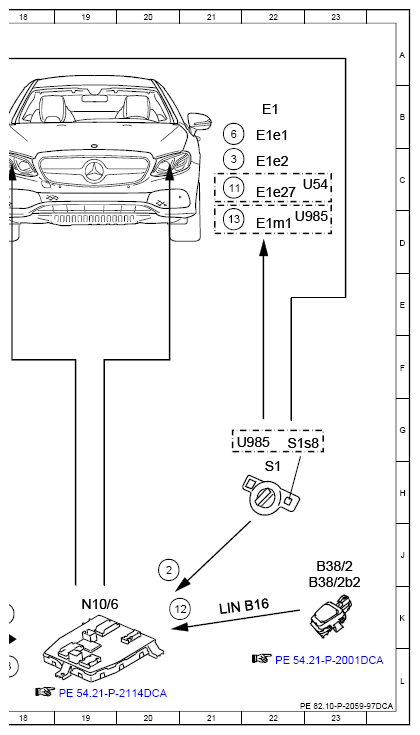

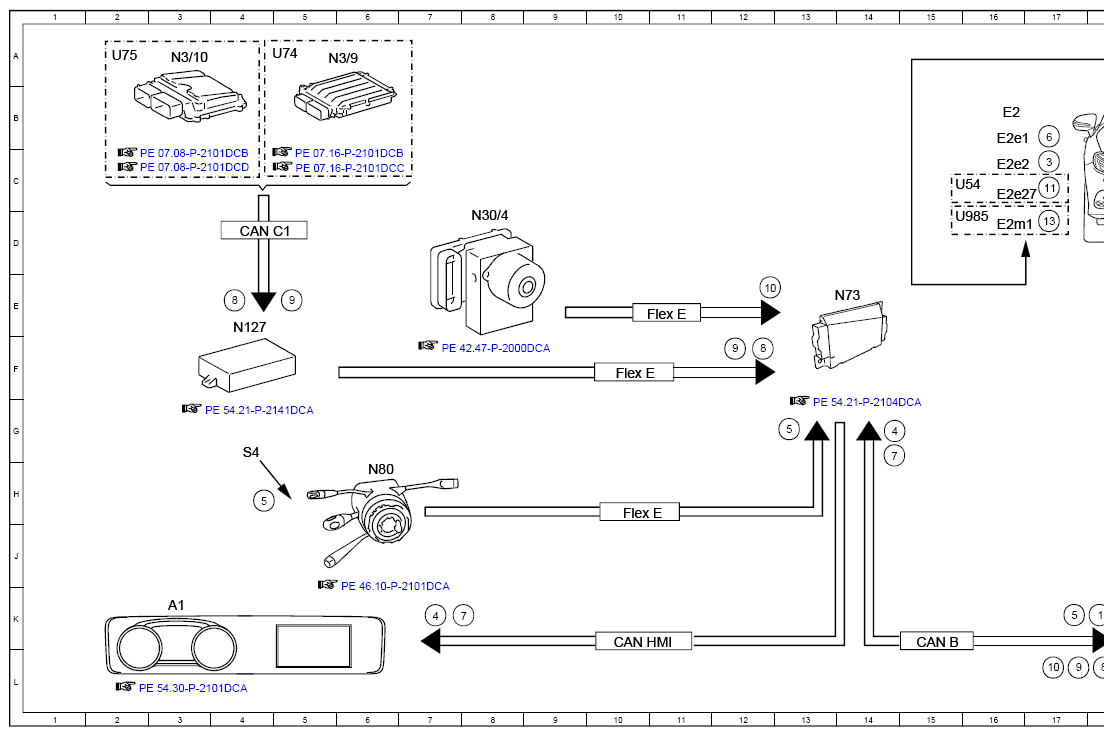

Electrical Function Schematic For Driving Light Actuation - PE82.10-P-2059-97DCA
Model 238 up to model year 2021
except code 631 (Static LED headlamps, left-hand traffic)
except code 632 (Headlamps, LED, static, right-side traffic)
except code P35 (Light Package)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 18K |
| 10 | Standstill control, status | 12E |
| 10 | Standstill control, status | 17L |
| 11 | Daytime running lights, actuation | 17C |
| 11 | Daytime running lights, actuation | 21C |
| 12 | Low beams, request | 20K |
| 13 | Headlamp range adjustment actuator motor, actuation | 17D |
| 13 | Headlamp range adjustment actuator motor, actuation | 21D |
| 2 | Exterior lights switch, status | 20J |
| 3 | Low beams, actuation | 17C |
| 3 | Low beams, actuation | 21C |
| 4 | Low beams indicator lamp, request | 7K |
| 4 | Low beams indicator lamp, request | 14G |
| 5 | Combination switch, status | 4H |
| 5 | Combination switch, status | 17K |
| 5 | Combination switch, status | 13G |
| 6 | High beams, actuation | 17B |
| 6 | High beams, actuation | 21B |
| 7 | High beams, status | 8K |
| 7 | High beams, status | 14G |
| 8 | Engine running, signal | 4E |
| 8 | Engine running, signal | 12F |
| 8 | Engine running, signal | 18L |
| 9 | Drivetrain operational, signal | 5E |
| 9 | Drivetrain operational, signal | 12F |
| 9 | Drivetrain operational, signal | 17L |
| A1 | Instrument cluster | 3K |
| B38/2 | Rain/light sensor with additional functions | 23J |
| B38/2b2 | Light sensor | 23K |
| CAN B | Interior CAN | 15K |
| CAN C1 | Drive train CAN | 4D |
| CAN HMI | User interface CAN | 10K |
| E1 | Left front lamp unit | 22B |
| E1e1 | Left high beam | 22B |
| E1e2 | Left low beam | 22C |
| E1e27 | Left position light and daytime running light | 22C |
| E1m1 | Left headlamp range adjustment actuator motor | 22D |
| E2 | Right front lamp unit | 16B |
| E2e1 | Right high beam | 16B |
| E2e2 | Right low beam | 16C |
| E2e27 | Right position light and daytime running light | 16C |
| E2m1 | Right headlamp range adjustment actuator motor | 16D |
| Flex E | Chassis FlexRay | 10F |
| Flex E | Chassis FlexRay | 10H |
| Flex E | Chassis FlexRay | 11E |
| LIN B16 | Rain and light sensor LIN | 21K |
| N10/6 | Front SAM control unit | 19K |
| N127 | Drivetrain control unit | 4E |
| N3/10 | ME-SFI [ME] control unit | 3A |
| N3/9 | CDI control unit | 6A |
| N30/4 | Electronic Stability Program control unit | 8D |
| N73 | Electronic ignition switch control unit | 14E |
| N80 | Steering column module control unit | 6H |
| S1 | Exterior lights switch | 22H |
| S1s8 | Headlamp range controller | 22G |
| S4 | Combination switch | 4G |
| U54 | Valid for all except Japan | 15C |
| U54 | Valid for all except Japan | 22C |
| U74 | Valid for diesel engines | 4A |
| U75 | Valid for gasoline engines | 2A |
| U985 | Not valid for AIRMATIC | 21G |
| U985 | Not valid for AIRMATIC | 15D |
| U985 | Not valid for AIRMATIC | 22D |
