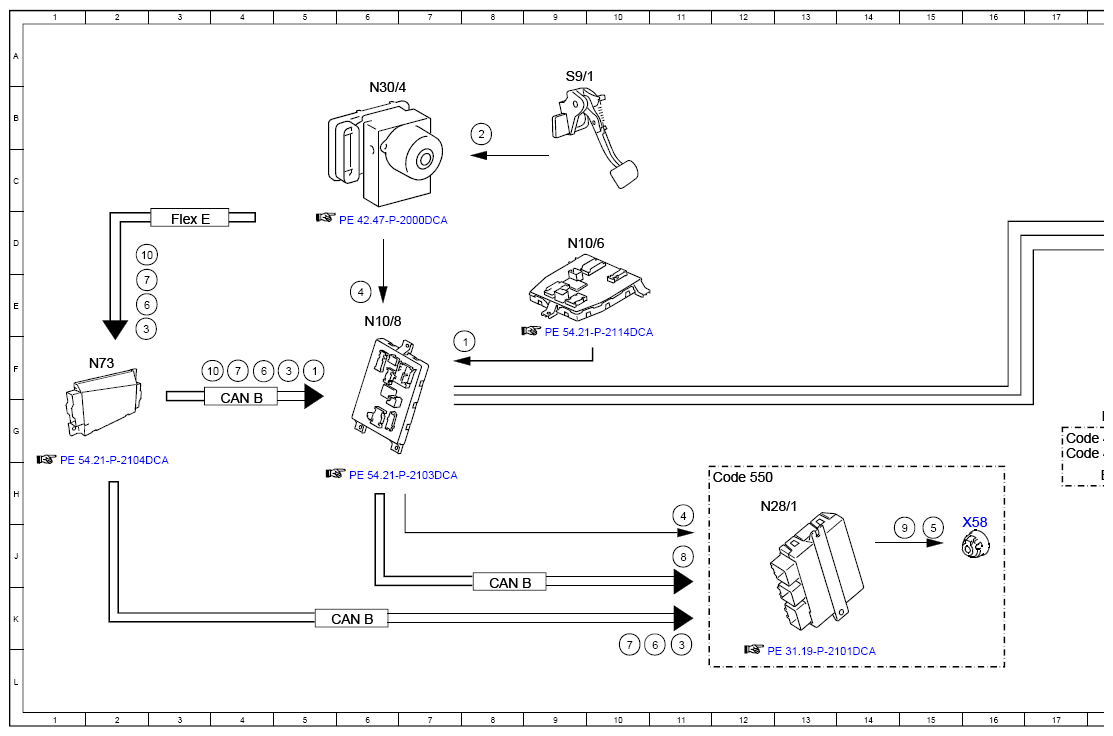

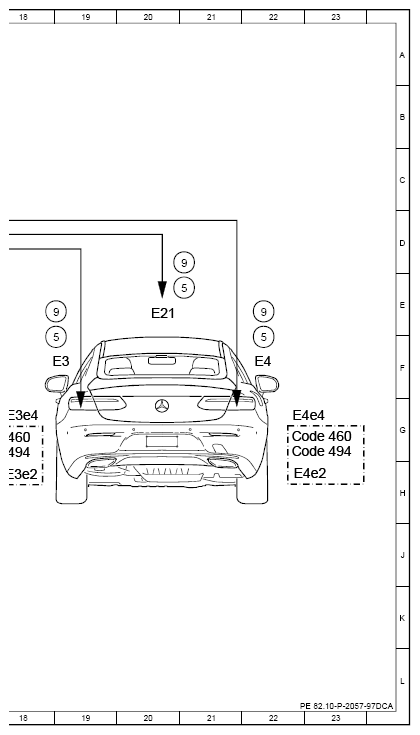

Electrical Function Schematic For Brake Light Actuation - PE82.10-P-2057-97DCA
Model 238 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 5F |
| 1 | Circuit 15, status | 8E |
| 10 | Standstill control, status | 3F |
| 10 | Standstill control, status | 3D |
| 2 | Brake light switch, status | 8B |
| 3 | Service brake, status | 5F |
| 3 | Service brake, status | 11K |
| 3 | Service brake, status | 2E |
| 4 | Circuit 54, status | 11H |
| 4 | Circuit 54, status | 6E |
| 5 | Brake lights, actuation | 15J |
| 5 | Brake lights, actuation | 19F |
| 5 | Brake lights, actuation | 22F |
| 5 | Brake lights, actuation | 21E |
| 6 | Vehicle speed, signal | 4F |
| 6 | Vehicle speed, signal | 11K |
| 6 | Vehicle speed, signal | 2E |
| 7 | Emergency stop, signal | 4F |
| 7 | Emergency stop, signal | 10K |
| 7 | Emergency stop, signal | 2E |
| 8 | Brake light dark phase, signal | 11J |
| 9 | Flashing brake lights, actuation | 15J |
| 9 | Flashing brake lights, actuation | 19E |
| 9 | Flashing brake lights, actuation | 22E |
| 9 | Flashing brake lights, actuation | 21D |
| CAN B | Interior CAN | 4G |
| CAN B | Interior CAN | 6K |
| CAN B | Interior CAN | 8K |
| Code 460 | Canada version | 17G |
| Code 460 | Canada version | 22G |
| Code 494 | USA version | 17G |
| Code 494 | USA version | 22G |
| Code 550 | Trailer hitch | 12H |
| E21 | Center stop lamp | 20E |
| E3 | Left rear lamp unit | 18F |
| E3e2 | Left taillamp and parking lamp | 18H |
| E3e4 | Left stop lamp | 18G |
| E4 | Right rear lamp unit | 22F |
| E4e2 | Right taillamp and parking lamp | 22H |
| E4e4 | Right stop lamp | 22G |
| Flex E | Chassis FlexRay | 3D |
| N10/6 | Front SAM control unit | 9D |
| N10/8 | Rear SAM control unit | 6E |
| N28/1 | Trailer recognition control unit | 12H |
| N30/4 | Electronic Stability Program control unit | 6B |
| N73 | Electronic ignition switch control unit | 2F |
| S9/1 | Stop lamp switch | 9A |
| X58 | Trailer socket | 16J |
