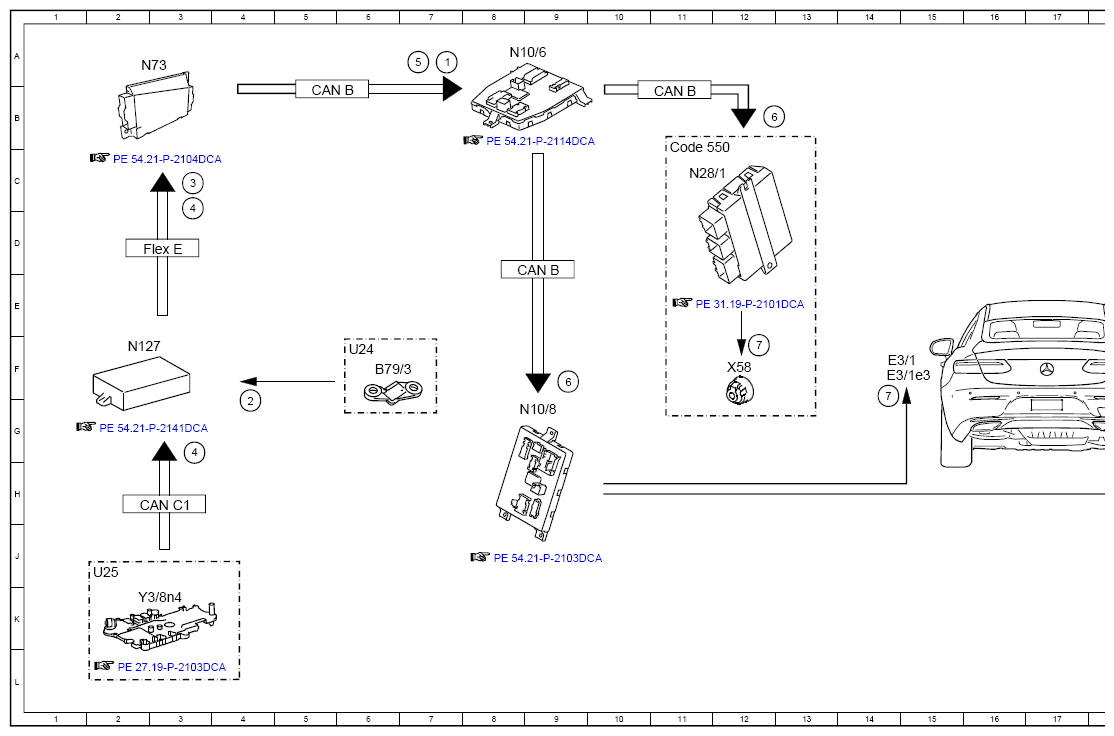

Electrical Function Schematic For Backup Light Actuation - PE82.10-P-2058-97DCA
Model 238 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 7A |
| 2 | Manual transmission main shifter shaft position sensor, signal | 4G |
| 3 | Reverse gear engaged, signal | 3C |
| 4 | Gear range, status | 3G |
| 4 | Gear range, status | 3D |
| 5 | Reverse gear, status | 7A |
| 6 | Backup lamp, request | 9F |
| 6 | Backup lamp, request | 12B |
| 7 | Backup lamp, actuation | 12F |
| 7 | Backup lamp, actuation | 19G |
| 7 | Backup lamp, actuation | 14G |
| B79/3 | Manual transmission main shifter shaft position sensor | 6F |
| CAN B | Interior CAN | 9E |
| CAN B | Interior CAN | 5B |
| CAN B | Interior CAN | 11B |
| CAN C1 | Drive train CAN | 3H |
| Code 550 | Trailer hitch | 11C |
| E3/1 | Inner left rear lamp unit | 14F |
| E3/1e3 | Left backup lamp | 14F |
| E4/1 | Inner right rear lamp unit | 19F |
| E4/1e3 | Right backup lamp | 19F |
| Flex E | Chassis FlexRay | 3D |
| N10/6 | Front SAM control unit | 8A |
| N10/8 | Rear SAM control unit | 9G |
| N127 | Drivetrain control unit | 2F |
| N28/1 | Trailer recognition control unit | 11C |
| N73 | Electronic ignition switch control unit | 2A |
| U24 | Valid for manual transmission | 6F |
| U25 | Valid for automatic transmission | 2J |
| X58 | Trailer socket | 12F |
| Y3/8n4 | Fully integrated transmission control, control unit | 3K |
