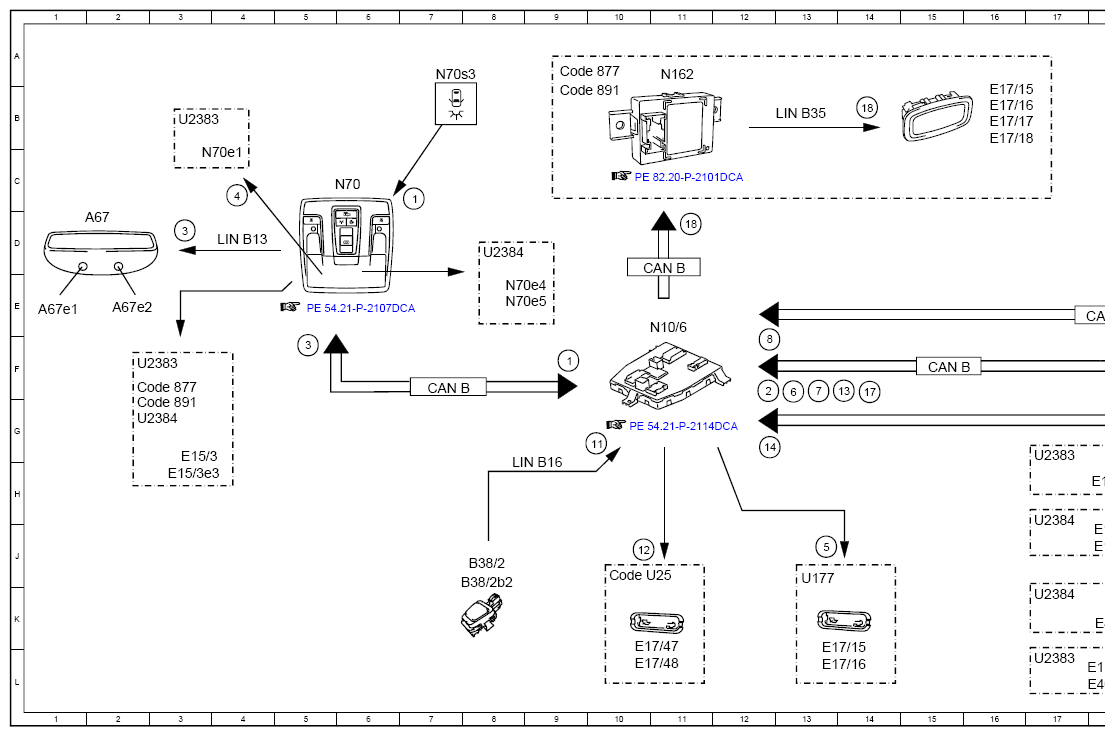

Automatic Interior Lights Control Electrical Function Schematic - PE82.20-P-2052-97DCA
Model 238 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Automatic function switch, status | 9F |
| 1 | Automatic function switch, status | 7C |
| 10 | Exit and warning lamp, actuation | 21B |
| 11 | Dusk setting, signal | 10G |
| 12 | Illuminated door sill molding actuation | 10J |
| 13 | Vehicle speed, signal | 14F |
| 13 | Vehicle speed, signal | 32H |
| 14 | Trunk lid/liftgate lock main catch switch, status | 13G |
| 15 | Ambient lamp, request | 20H |
| 16 | Ambient lamp, actuation | 19J |
| 16 | Ambient lamp, actuation | 19K |
| 17 | Crash, signal | 14F |
| 17 | Crash, signal | 29J |
| 18 | Ambience illumination, request | 11D |
| 18 | Ambience illumination, request | 14B |
| 2 | Central locking, status | 12F |
| 3 | Interior lamp, request | 5F |
| 3 | Interior lamp, request | 3D |
| 4 | Interior lamp, actuation | 4C |
| 5 | Footwell lamp, actuation | 13J |
| 6 | Circuit 15, status | 13F |
| 7 | OFF delay time, status | 13F |
| 7 | OFF delay time, status | 30H |
| 8 | Door rotary tumbler switch, status | 12F |
| 9 | Exit and warning lamp, request | 23D |
| A1 | Instrument cluster | 36H |
| A26/17 | Head unit | 25G |
| A67 | Inside rearview mirror | 1D |
| A67e1 | Left reading lamp | IE |
| A67e2 | Right reading lamp | 2E |
| B38/2 | Rain/light sensor with additional functions | 8J |
| B38/2b2 | Light sensor | 8J |
| CAN B | Interior CAN | 20F |
| CAN B | Interior CAN | 26F |
| CAN B | Interior CAN | 15F |
| CAN B | Interior CAN | 18E |
| CAN B | Interior CAN | 19G |
| CAN B | Interior CAN | 7F |
| CAN B | Interior CAN | 11D |
| CAN HMI | User interface CAN | 33J |
| CAN MMI | User interface CAN | 28K |
| CAN HMI | User interface CAN | 28H |
| Code 877 | Ambiance illumination | 9A |
| Code 877 | Ambiance illumination | 2F |
| Code 877 | Ambiance illumination | 19B |
| Code 891 | Premium ambient lighting | 19B |
| Code 891 | Premium ambient lighting | 2G |
| Code 891 | Premium ambient lighting | 9B |
| Code U25 | Illuminated door sills | 10J |
| E15/3 | Rear dome lamp | 3G |
| E15/3e3 | Rear interior lamp | 3H |
| E17/15 | Right front footwell lamp | 13L |
| E17/15 | Right front footwell lamp | 16B |
| E17/16 | Left front footwell lamp | 13L |
| E17/16 | Left front footwell lamp | 16B |
| E17/17 | Left rear footwell lamp | 16B |
| E17/18 | Right rear footwell lamp | 16B |
| E17/27 | Trunk lid warning lamp | 18L |
| E17/3 | Left front door exit and warning lamp | 20C |
| E17/4 | Right front door exit and warning lamp | 20C |
| E17/47 | Left front illuminated door sill molding | 10L |
| E17/48 | Right front illuminated door sill molding | 10L |
| E18/1 | Luggage compartment lamp | 18H |
| E18/4 | Right luggage compartment lamp | 18J |
| E18/5 | Left luggage compartment lamp | 18J |
| E40 | Trunk lid ambient lamp | 18L |
| E40/2 | Left trunk lid/liftgate ambient lamp and warning lamp | 18K |
| LIN B13 | Roof LIN | 4D |
| LIN B16 | Rain and light sensor LIN | 9H |
| LIN B35 | Vehicle interior ambiance illumination LIN | 13B |
| N10/6 | Front SAM control unit | 11E |
| N10/8 | Rear SAM control unit | 21H |
| N162 | Ambiance illumination control unit | 11A |
| N2/10 | Supplemental restraint system control unit | 26J |
| N69/1 | Left front door control unit | 23A |
| N69/2 | Right front door control unit | 23A |
| N70 | Overhead control panel control unit | 5C |
| N70e1 | Front dome lamp | 4C |
| N70e4 | Left interior/reading lamp | 8E |
| N70e5 | Right interior/reading lamp | 8E |
| N70s3 | Interior lamp automatic function button | 7A |
| N73 | Electronic ignition switch control unit | 31J |
| U177 | Not valid for ambiance illumination | 13J |
| U2383 | Valid for model 238.3 | 3B |
| U2383 | Valid for model 238.3 | 2F |
| U2383 | Valid for model 238.3 | 17G |
| U2383 | Valid for model 238.3 | 17L |
| U2384 | Valid for model 238.4 | 8D |
| U2384 | Valid for model 238.4 | 17J |
| U2384 | Valid for model 238.4 | 2G |
| U2384 | Valid for model 238.4 | 17K |
