Retrofit WLAN Antenna For COMAND - AN82.85-P-0005-05LWE

Model 213.0/1/2, 238

Topical note

Information on preventing damage to electronic components due to electrostatic discharge

The following operation steps describe installation in a left-hand drive vehicle. With right-hand drive vehicles these operation steps must be carried out mirror-inverted.

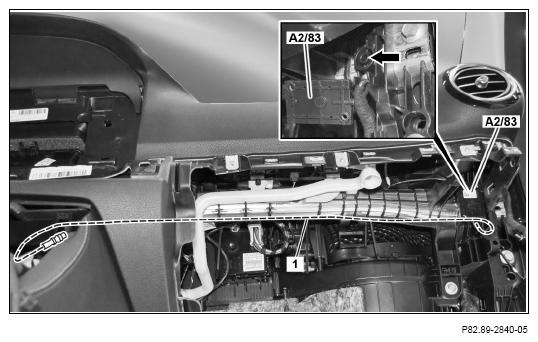

Clip WLAN antenna (A2/83) into bracket (arrow).
The bracket is on the instrument panel support.
Route antenna line (1) along instrument panel support to device installation frame of head unit and fix in place using cable ties.
The antenna line (1) is connected when the head unit is installed.

Courtesy of MERCEDES-BENZ USA
