Retrofit Touchpad Wiring Harness In Area Of Center Console - AN82.60-P-0017-04LWO

Model 213 as of 8/4/16 up to 5/31/17

except code 448 (Touchpad)

Model 238 up to 11/30/17

except code 448 (Touchpad)

Topical note	Notes on the use of paint scraping nuts on ground connections		AH00.19-P-1000-20A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A

GROUND POINTS

Number	Designation			Model 238
BA00.19-P-1011-02B	Left center console ground point	W12	Nm	10

GROUND POINTS

Number	Designation			Model 213
BA00.19-P-1012-02A	Left center console ground point	W12	Nm	10

GROUND POINTS

Number	Designation			Model 238
BA00.19-P-1030-02B	Ground point for electromagnetic compatibility (touchpad)	W91	Nm	10

GROUND POINTS

Number	Designation			Model 213
BA00.19-P-1032-02A	Ground point for electromagnetic compatibility (touchpad)	W91	Nm	10

The following operation steps describe installation in a left-hand drive vehicle. With right-hand drive vehicles these operation steps must be carried out mirror-inverted.

Courtesy of MERCEDES-BENZ USA

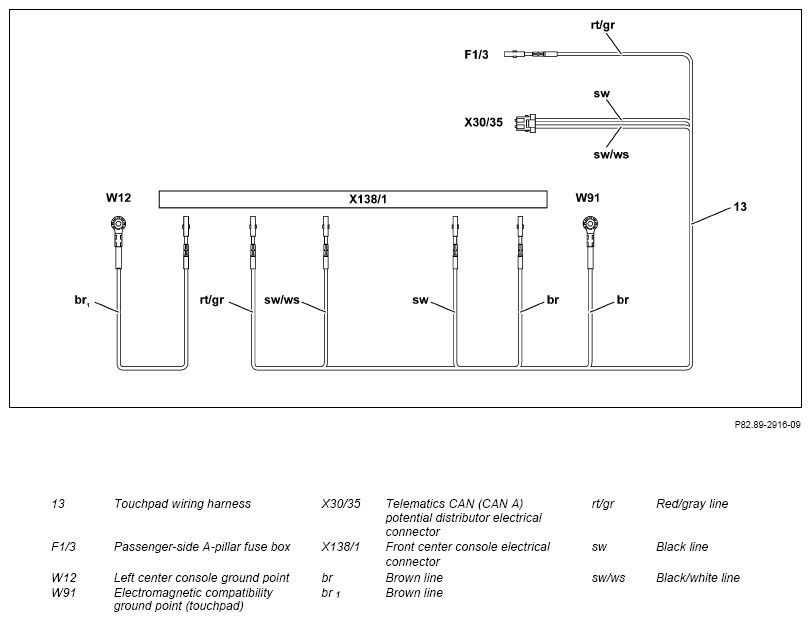

Connection scheme

Install individual contacts of touchpad wiring harness (13) electric lines and individual brown line (BN₁ ) into white 10- pin connector socket (13.1).
Contact cavity assignment:

Contact cavity 1 = brown line (BN₁ )

Contact cavity 3 = red/gray line (RD/GY)

Contact cavity 8 = black/white line (BK/WH)

Contact cavity 9 = black line (BK)

Contact cavity 10 = brown line (BN)
Route brown line (BN₁ ) to left center console ground point (W12) and connect Model 238 Model 213 .
Route touchpad wiring harness (13), as shown, along existing lines into front passenger footwell.
Fix touchpad wiring harness (13) in place only after routing all retrofit wiring harnesses.

Courtesy of MERCEDES-BENZ USA
Route brown line (BN) to electromagnetic compatibility ground point (Touchpad) (W91) and connect Model 238 Model 213 .
Route red/gray line (RD/GY) together with twisted black line (BK) and black/white line (BK/WH) of touchpad wiring harness to right A-pillar.
Route red/gray line (RD/GY) to front passenger side A-pillar fuse box (F1/3).
Install red/gray line (RD/GY) into contact cavity "3" of electric multicircuit fuse 3 (F1/3MF3).
Contact cavity "3" and electric multicircuit fuse 3 (F1/3MF3) are labeled.
Route twisted black line (BK) and black/white line (BK/WH) to telematics CAN (CAN A) potential distributor electrical connector (X30/35).
Connect black connector socket to any free slot of telematics CAN (CAN A) potential distributor electrical connection (X30/35).
