Remove/Install Windshield Washer Hose - AR82.35-P-6980LWP
Model 238
With Code 874 (MAGIC VISION CONTROL incl. heated windshield washer system)
| Risk of fire and explosion caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin. | Wear protective clothing and tight-fitting safety glasses. No open flames, fire or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of the reach of children. | AS82.35-Z-0001-01A | |
| Remove/install | |||
| 1 | Remove the washer fluid reservoir of the windshield washer system | AR82.35-P-6000LW | |
| 2 | Detach washer fluid hose (2) at windshield washer system pump (M5/1) | ||
| 3 | Disconnect electrical connector (3) | ||
| 4 | Unclip washer fluid hose (2) from retaining clip (1) | ||

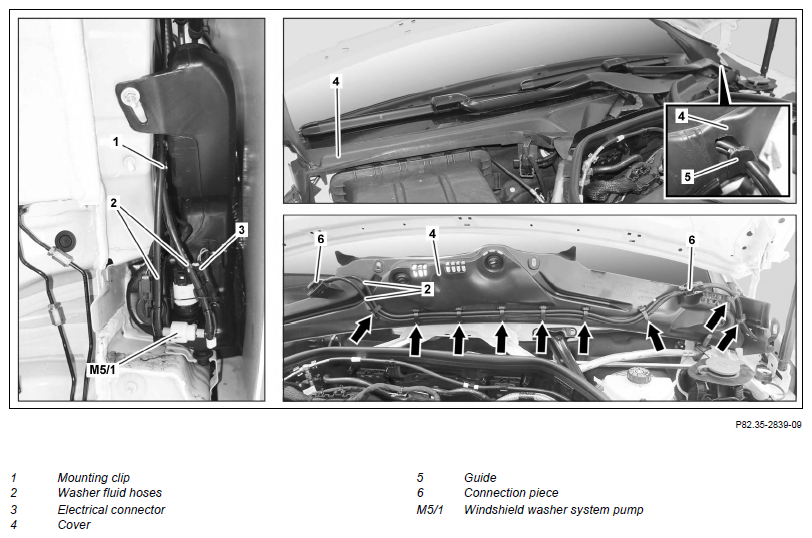

| 5 | Unclip guide (5) at cover (4), and guide washer fluid hose (2) upwards out of wheel well | ||
| 6 | Remove wiper arms | AR82.30-P-6100LW | |
| 7 | Remove engine compartment cover to side | ||
| 8 | Loosen cover (4) until washer fluid hoses (2) are accessible | ||
| 9 | Open brackets (arrows) | ||
| 10 | Unclip connection pieces (6), and remove washer fluid hoses (2) from cover (4) | ||
| 11 | Install in the reverse order |
