Remove/Install Wi-Fi Antenna In Center Of Instrument Panel - AR82.85-P-0013LW

Model 213, 238

As Of Model Year 2021

With Code 549 (Connect 20 HIGH (NTG6))

Shown On Model 238.3 With Code 801 (YoM 20/1)

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove steering column module.		AR54.25-P-2802LW
2	Remove center Bluetooth®/Wi-Fi antenna (A2/162) from crossmember.	Do not crush or kink or subject lines to tension. This will result in damage to the lines which may impair their functional capability. Dismantling tool	Fig 1

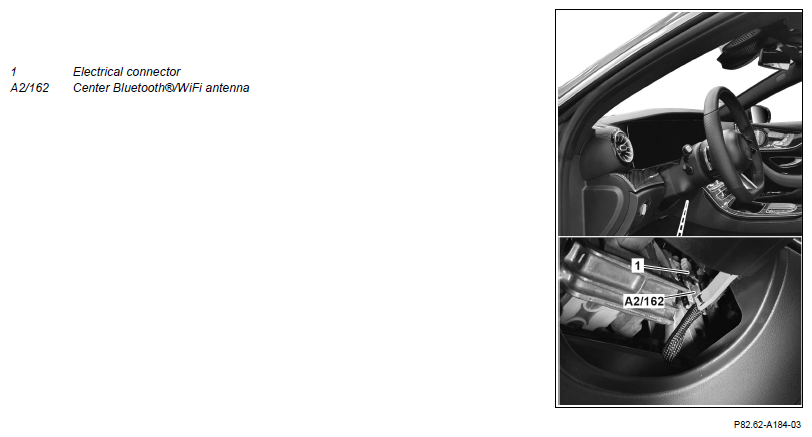

3	Release and disconnect electrical connector (1) and remove center Bluetooth®/Wi-Fi antenna (A2/162).
4	Install in the reverse order.

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA
