Remove/Install TV Antenna Amplifier Under Right A-Pillar Trim - AR82.62-P-8305LWP
Model 238.4
With Code 865 (digital TV)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

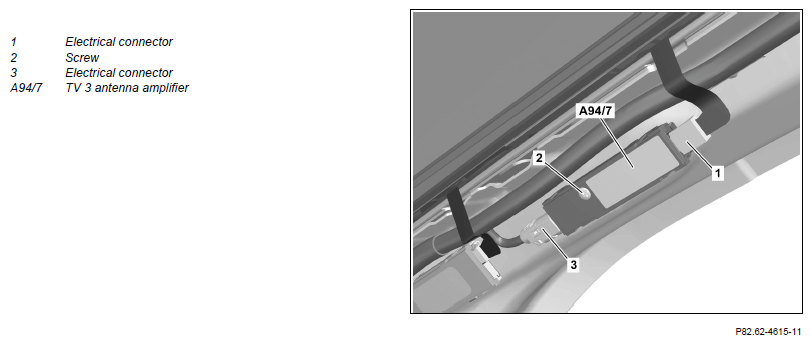

| 1 | Remove right A-pillar trim | AR68.30-P-4050LW | |
| 2 | Disconnect electrical connector (1) | ||
| 3 | Remove screw (2) | ||
| 4 | Unclip the TV 3 antenna amplifier (A94/7) from the A-pillar and disconnect the electrical connector (3) | ||
| 5 | Install in the reverse order |
