Remove/Install Subwoofer Amplifier - AR82.62-P-7722LWO
Model 238.3
With Code 811 (High-End sound system)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Release subwoofer until rear woofer amplifier (N40/14) is accessible | AR82.62-P-7841LWE | |
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||

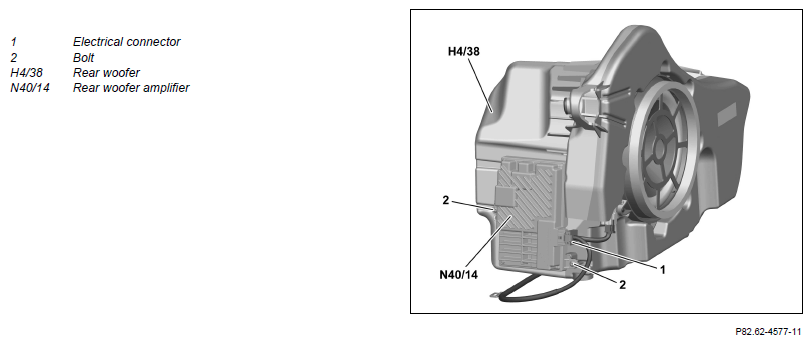

| 3 | Disconnect electrical connection (1) | ||
| 4 | Remove screws/bolts (2) and remove rear woofer amplifier (N40/14) from rear woofer (H4/38) | ||
| 5 | Install in the reverse order |
