Remove/Install Speakers In Headliner - AR82.62-P-7876LWO

Model 238.3

With Code 811 (High-End sound system)

Courtesy of MERCEDES-BENZ USA

	Remove/install

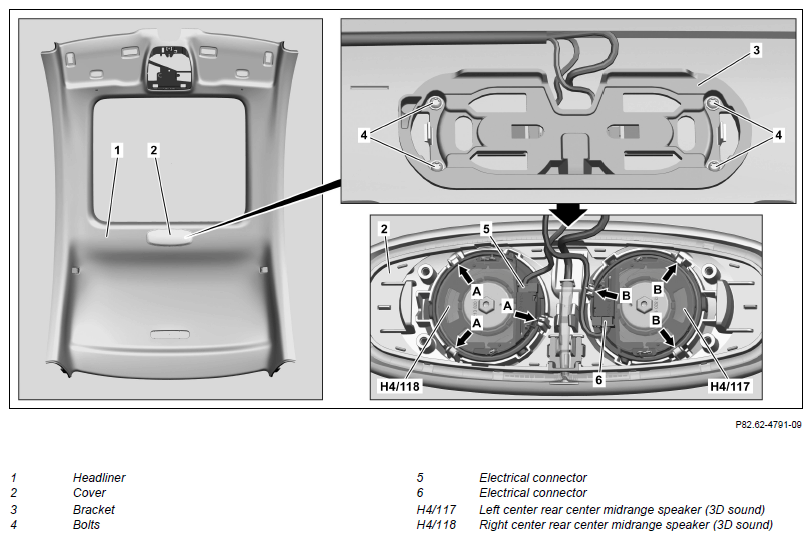

1	Remove roof lining (1).		AR68.30-P-4300LWO
2	Unscrew screw/bolts (4).	The holder (3) remains in the roof lining (1).
3	Remove cover (2).
4	Disconnect electrical connector (5, 6).
5	Unclip center mid-range speaker at left center rear (3D sound) (H4/117) at catch hooks (arrows A) or center mid-range speaker at right center rear (3D sound) (H4/118) at catch hooks (arrows B).
6	Install in the reverse order.
