Remove/Install Sound System Amplifier Control Unit - AR82.62-P-7723LWP
Model 238.4
With Code 810 (Premium sound system)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Remove/install | |||
| 1 | Perform initial startup of sound system amplifier control unit (N40/3) | When replacing the sound system amplifier control unit (N40/3). | |
| AD00.00-P-2000-06LWO | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove lining on the right-hand side of the trunk | AR68.30-P-4800LWR | |

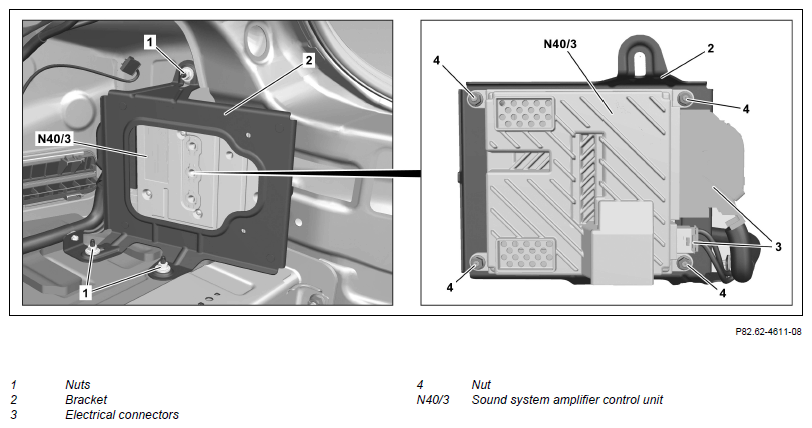

| 4 | Unscrew nuts (1) | ||
| 5 | Put down bracket (2) with sound system amplifier control unit (N40/3) | ||
| 6 | Disconnect electrical connectors (3) and remove bracket (2) with sound system amplifier control unit (N40/3) from vehicle | ||
| 7 | Unscrew nuts (4) and remove sound system amplifier control unit (N40/3) from bracket (2) | When replacing the sound system amplifier control unit (N40/3). | |
| 8 | Install in the reverse order |
