Remove/Install Satellite Radio Antenna - AR82.60-P-7547LWR
Model 205.4, 238.4
With Code 536 (Sirius satellite radio complete system)
Shown On Model 205.4
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

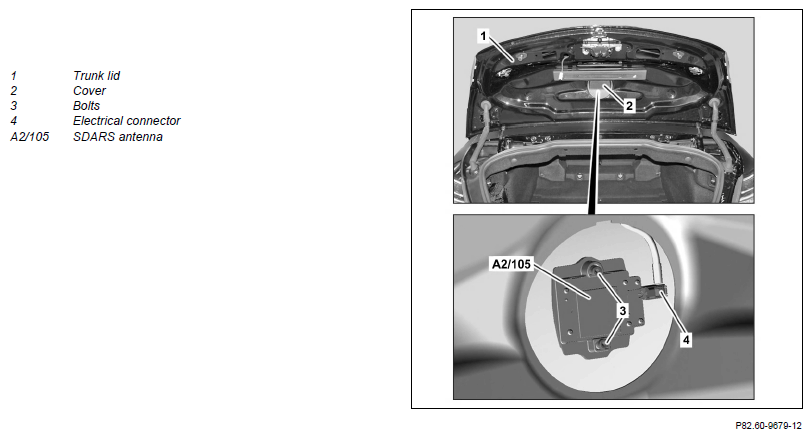

| 1 | Open trunk lid (1) and remove cover (2) | ||
| 2 | Remove bolts (3) | ||
| 3 | Remove SDARS antenna (A2/105) and disconnect electrical connector (4) | ||
| 4 | Install in the reverse order |
