Remove/Install Satellite Radio Antenna - AR82.60-P-7547LWE
Model 213.0
With Code 536 (Sirius satellite radio complete system)
Model 238.3
With Code 536 (Sirius satellite radio complete system)
Shown On Model 213.0 With Code 413 (Panoramic sliding roof)
Shown On Model 213.0 Except Code 413 (Panoramic sliding sunroof)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1.1 | Remove overhead control panel control unit | Model 213.0, 238.3 with code 413 (Automatic panoramic sliding sunroof) with code 536 (Sirius satellite radio complete system) Model 213.0 with code 536 (Sirius satellite radio complete system) |
AR82.20-P-1000LF |
| Model 238.3 with code 536 (Sirius satellite radio complete system) | AR82.20-P-1000LWO | ||
| 1.2 | Remove headliner | Model 213.0, 238.3 with code 536 (Sirius satellite radio complete system) except code 413 (Automatic panoramic sliding sunroof) Model 213.0 with code 536 (Sirius satellite radio complete system) except code 413 (Automatic panoramic sliding sunroof) |
AR68.30-P-4300LWE |
| Model 238.3 with code 536 (Sirius satellite radio complete system) except code 413 (Automatic panoramic sliding sunroof) | AR68.30-P-4300LWO | ||

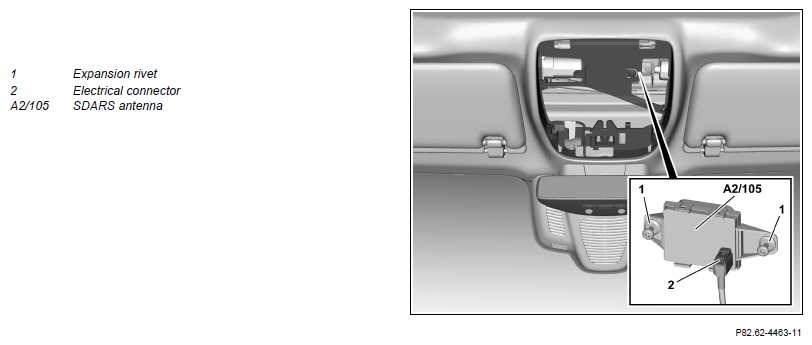

| 2.1 | Remove expansion rivet (1) | Model 213.0, 238.3 with code 413 (Automatic panoramic sliding sunroof) with code 536 (Sirius satellite radio complete system) | |

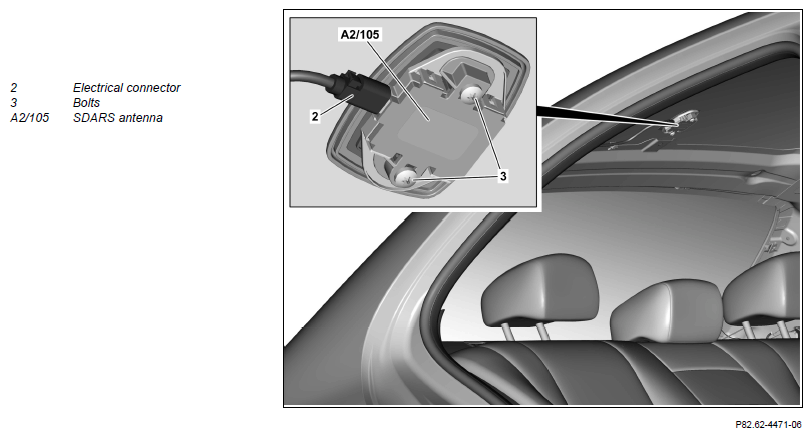

| 2.2 | Remove bolts (3) | Model 213.0, 238.3 with code 536 (Sirius satellite radio complete system) except code 413 (Automatic panoramic sliding sunroof) | |
| 3 | Remove SDAR antenna (A2/105) and disconnect electrical connector (2) | ||
| 4 | Install in the reverse order |
