Remove/Install Remote Park-Pilot/Stationary Heater Antenna Splitter - AR82.70-P-0006LWO
Model 238.3
With Code 503 (Remote-controlled parking)
With Code B24 (Remote control for Auxiliary heating)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1.1 | Remove subwoofer | Model 238.3 with code 503 (Remote-controlled parking) with code 811 (High-End sound system) with code B24 (Remote control for Auxiliary heating) | AR82.62-P-7841LWE |
| 1.2 | Remove side paneling in left trunk | Model 238.3 with code 503 (Remote-controlled parking) with code B24 (Remote control for Auxiliary heating) except code 811 (High-End sound system) | AR68.30-P-4800LWO |

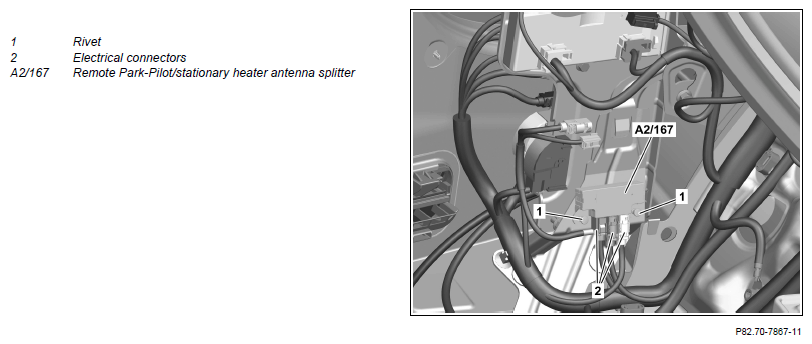

| 2 | Remove rivets (1) | ||
| 3 | Remove Remote Parking Pilot/stationary heater antenna splitter (A2/167) and disconnect electrical connectors (2) | ||
| 4 | Install in the reverse order |
