Remove/Install Rear Tail Lamp Unit - AR82.10-P-4731CLW
Model 205.3/4, 238
Shown On Model 205.3
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove rear center assembly paneling | AR68.30-P-4785LW | |
| 2 | Release side paneling in vicinity of left rear lamp unit (E3) or right rear lamp unit (E4) until nuts (1) are accessible | Model 238.3 | AR68.30-P-4800LWO |
| Model 205.3 | AR68.30-P-4800LW | ||
| Model 205.4, 238.4 | AR68.30-P-4800LWR | ||
| 3 | Unscrew nuts (1) | ||

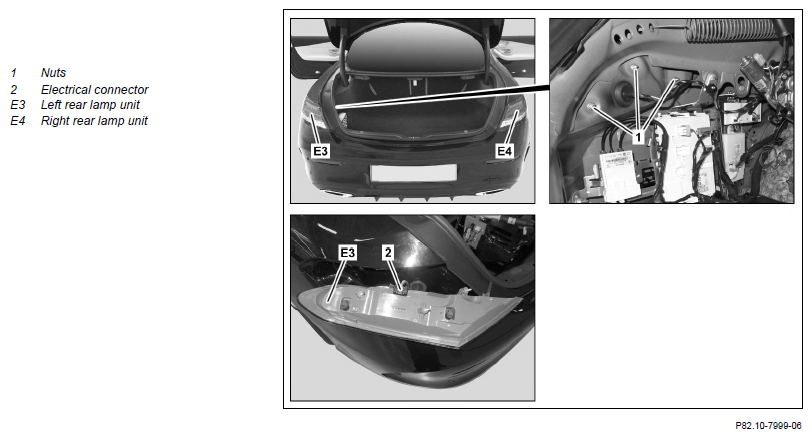

| 4 | Remove left rear lamp unit (E3) or right rear lamp unit (E4) until electrical connector (2) is accessible | ||
| 5 | Disconnect electrical connection (2) from left rear lamp unit (E3) or right rear lamp unit (E4) | ||
| 6 | Remove left rear lamp unit (E3) or right rear lamp unit (E4) | Carefully position left rear lamp unit (E3) or right rear lamp unit (E4). Otherwise adjacent parts may be damaged. |
|
| 7 | Install in the reverse order |
