Remove/Install Radio, Central Locking And KEYLESS-GO Antenna Amplifier - AR82.62-P-8307LWO

Model 238.3

MODIFICATION NOTES

24.05.2017

Removal of right coat hook from roof lining added

Operation step 3

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove paneling on right C-pillar		AR68.30-P-4490LWO

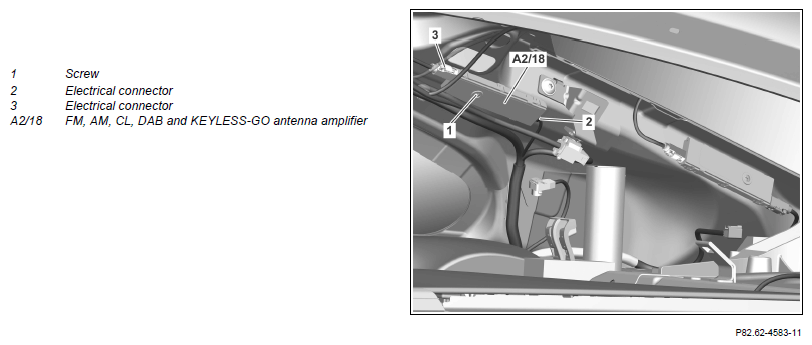

2	Separate electrical connectors (2)	The number of electrical connectors (2) may vary depending on the equipment installed.
3	Remove right coat hook from roof lining and remove screw/bolt below it
4	Hold headliner downwards and remove screw/ bolt (1)	The screw/bolt (1) remains on the FM, AM, CL [ZV], DAB and KEYLESS-GO antenna amplifier (A2/18).
5	Unclip FM, AM, CL, DAB and KEYLESS-GO antenna amplifier (A2/18) from C-pillar and remove under headliner until electrical connector (3) is accessible
6	Disconnect electrical connector (3) and remove FM, AM, CL, DAB and KEYLESS-GO antenna amplifier (A2/18)
7	Install in the reverse order
