Remove/Install Mobile Phone Cradle Control Unit - AR82.70-P-0007LWE
Model 213, 238 with transmission 725
With Code 896 (Vehicle access and authorization via smartphone)
Model 213, 238 with transmission 725
With Code 897 (Front wireless telephone charging)
Model 213, 238 with transmission 725
With Code 899 (Multifunction telephony)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Perform initial startup of mobile phone cradle control unit (N123/8) | When replacing the mobile phone cradle control unit (N123/8). | |
| Model 213 with transmission 725 with code 896 (Vehicle access and authorization via smartphone) Model 213 with transmission 725 with code 897 (Front wireless telephone charging) Model 213 with transmission 725 with code 899 (Multifunction telephony) |
AD00.00-P-2000-04B | ||
| Model 238 with transmission 725 with code 896 (Vehicle access and authorization via smartphone) Model 238 with transmission 725 with code 897 (Front wireless telephone charging) Model 238 with transmission 725 with code 899 (Multifunction telephony) |
AD00.00-P-2000-06LWO | ||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove cover on center console | Model 213 with transmission 725 with code 896 (Vehicle access and authorization via smartphone) Model 213 with transmission 725 with code 897 (Front wireless telephone charging) Model 213 with transmission 725 with code 899 (Multifunction telephony) |
AR68.20-P-2350LW |
| Model 238 with transmission 725 with code 896 (Vehicle access and authorization via smartphone) Model 238 with transmission 725 with code 897 (Front wireless telephone charging) Model 238 with transmission 725 with code 899 (Multifunction telephony) |
AR68.20-P-2350LWO | ||

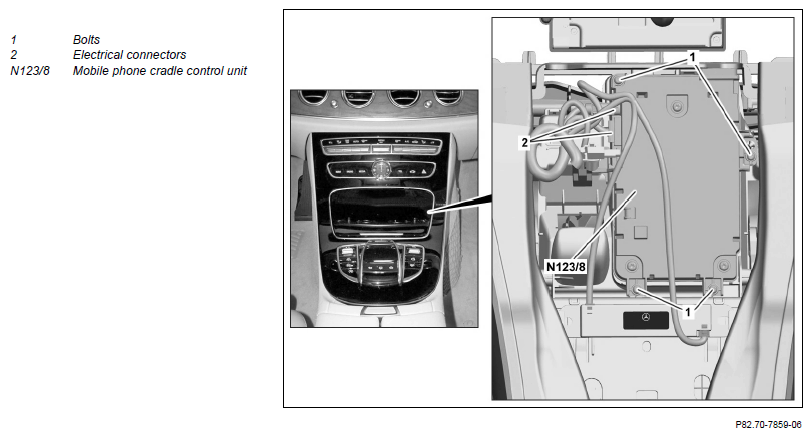

| 4 | Remove bolts (1) | ||
| 5 | Separate electrical connectors (2) | ||
| 6 | Remove mobile phone cradle control unit (N123/8) | ||
| 7 | Install in the reverse order |
