Remove/Install Mid-Range Speaker In Soft Top Compartment Cover - AR82.62-P-0013LWR
Model 205.4, 217.4, 238.4
With Code 810 (Premium sound system)
Model 217.4
With Code 811 (High-End sound system)

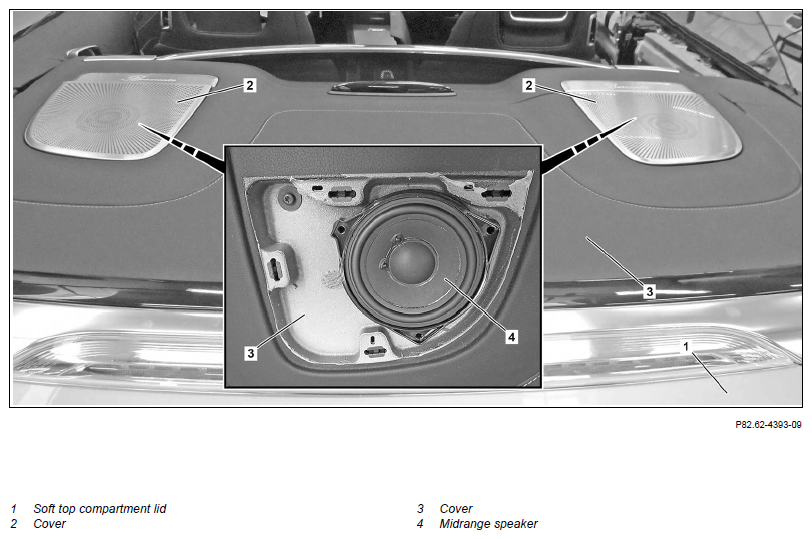

Shown On Model 217.4 With Code 810 (Sound system)
| Remove/install | |||
| 1 | Completely open soft top | ||
| 2 | Unclip corresponding cover (2) | Fig 1 | |
| 3 | Unclip mid-range speaker (4) from trim (3) and remove | ||
| 4 | Disconnect electrical connector from mid-range speaker (4) | ||
| 5 | Install in the reverse order |
