Remove/Install Loudspeaker In Instrument Panel - AR82.62-P-7833LWE

Model 213, 238

Courtesy of MERCEDES-BENZ USA

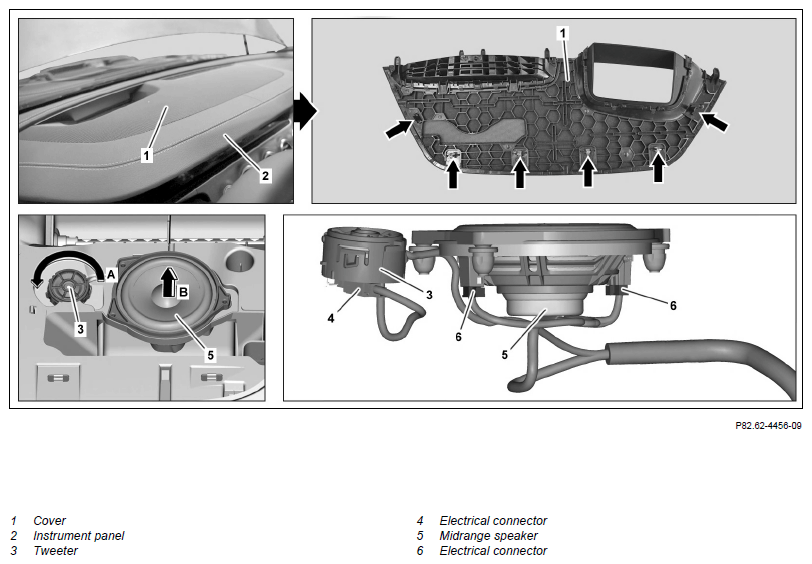

Shown With Code 811 (Advanced sound system)

	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)
2	Unclip cover (1) at instrument panel (2) (arrows)	Clip remover	Fig 1
3	Turn the tweeter (3) counterclockwise (arrow A), remove upwards and disconnect the electrical connector (4)	Model 213, 238 with code 811 (Advanced sound system)
4	Pull the midrange speaker (5) upwards out of the mount (arrow B), disconnect the electrical connectors (6) and remove the midrange speaker (5)	The number of electrical connectors (6) may vary depending on the vehicle equipment involved.
5	Install in the reverse order

Fig 1: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
