Remove/Install Global Positioning System (GPS) Antenna Splitter - AR82.85-P-0007LWO
Model 238
With Code 355 (Preinstallation for retrofitting navigation system)
With Code 362 (HERMES communications module LTE)
With Code 830 (China version)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

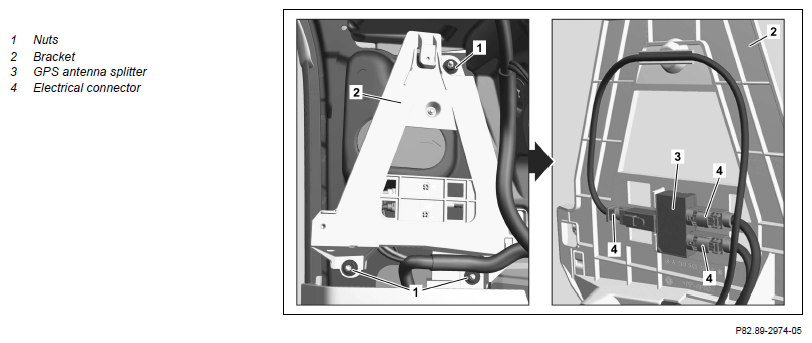

| 1 | Remove front SAM control unit | AR54.21-P-1254LW | |
| 2 | Unscrew nuts (1) on bracket (2) | ||
| 3 | Expose the bracket (2) and remove it from the side wall | ||
| 4 | Unclip the GPS antenna splitter (3) from the rear of the bracket (2) | ||
| 5 | Disconnect the electrical connectors (4) and remove the GPS antenna splitter (3) | ||
| 6 | Install in the reverse order |
