Remove/Install FM 2, DAB And TV 1 Antenna Amplifier - AR82.62-P-8311LWP

Model 238.4

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove right A-pillar trim		AR68.30-P-4050LW

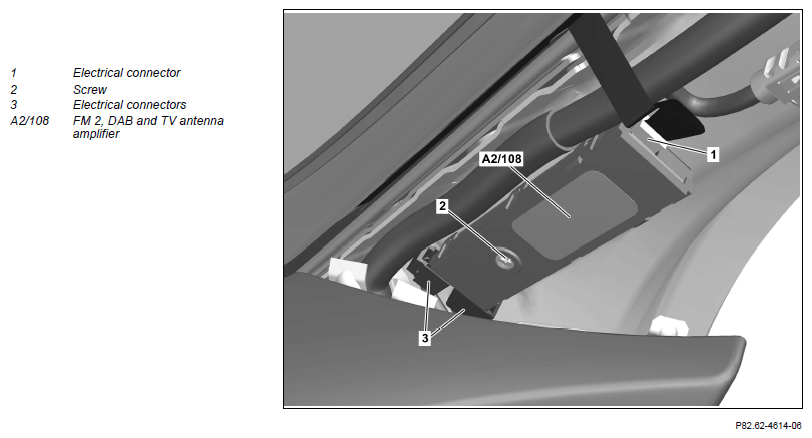

2	Disconnect electrical connector (1)
3	Remove screw (2)	The screw (2) remains on the FM 2, DAB and TV antenna amplifier (A2/108).
4	Unclip the FM 2, DAB and TV antenna amplifier (A2/108) from the A-pillar and disconnect the electrical connectors (3)	The number of electrical connectors (3) varies depending on the vehicle equipment.
5	Install in the reverse order
