Remove/Install FM 2, DAB And TV 1 Antenna Amplifier - AR82.62-P-8311LWE

Model 238.3

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install

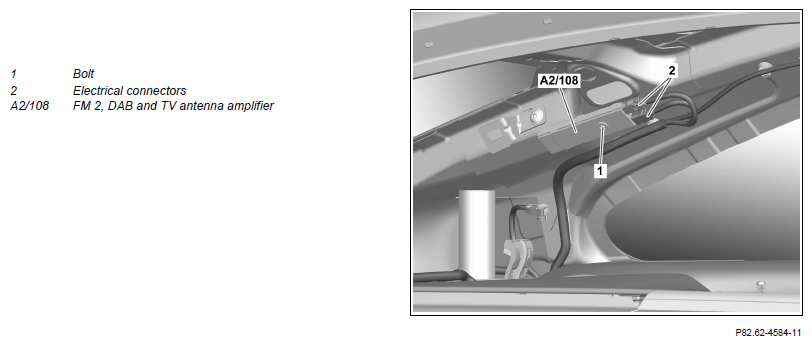

1	Remove paneling on left C-pillar		AR68.30-P-4490LWO
2	Separate electrical connectors (2)
3	Remove bolt (1)	The screw/bolt (1) remains on the FM 2, DAB and TV antenna amplifier (A2/108).
4	Unclip FM 2, DAB and TV antenna amplifier (A2/108) from C-pillar and take off
5	Install in the reverse order
