Remove/Install Antenna Amplifier/Compensator For Telephone - AR82.62-P-0005LWE
Model 213, 238
With Code 386 (Comfort telephony)
Model 213, 238
With Code 899 (Multifunction telephony)
Shown On Model 213 With Code 581 (Automatic air conditioning)

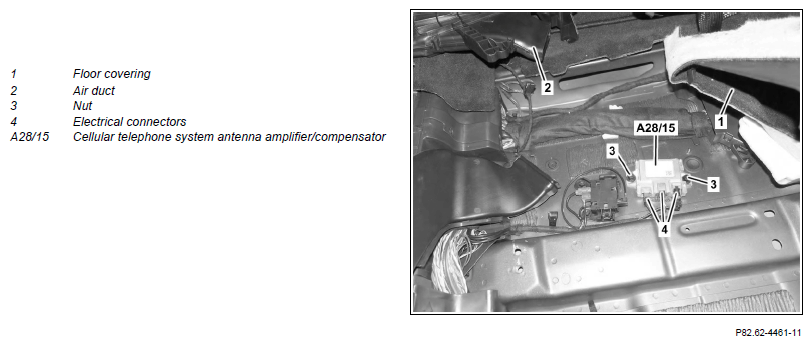

Fig 1: Antenna Amplifier/Compensator For Telephone Components Location - Model 238 With Code 386, 899 (Shown On Model 213 With Code 581)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove left door sill moldings | Model 238 with code 386 (Comfort telephony) Model 238 with code 899 (Multifunction telephony) |
AR68.30-P-4100CLW |
| Model 213 with code 386 (Comfort telephony) Model 213 with code 899 (Multifunction telephony) |
AR68.30-P-4100LW | ||
| 2 | Remove left front seat | AR91.10-P-1000LW | |
| 3 | Detach lower left B-pillar trim | Model 213 with code 386 (Comfort telephony) Model 213 with code 899 (Multifunction telephony) |
|
| 4 | Loosen floor covering (1) in area of left front seat and fold to one side | ||
| 5 | Unclip air duct (2) and place to one side | Model 213 with code 386 (Comfort telephony) with code 581 (Automatic air conditioning) Model 213 with code 581 (Automatic air conditioning) with code 899 (Multifunction telephony) |
|
| 6.1 | Unscrew nuts (3) | Model 213 with code 386 (Comfort telephony) Model 213 with code 899 (Multifunction telephony) |
|
| 6.2 | Unclip mobile radio antenna amplifier/compensator (A28/15) from holder | Model 238 with code 386 (Comfort telephony) Model 238 with code 899 (Multifunction telephony) |
|
| 7 | Remove mobile radio antenna amplifier/compensator (A28/15) and disconnect electrical connectors (4) | ||
| 8 | Install in the reverse order |
